V3S-G Series
Manufacturer: Pepperl+Fuchs, Inc.
Beta
⌘K

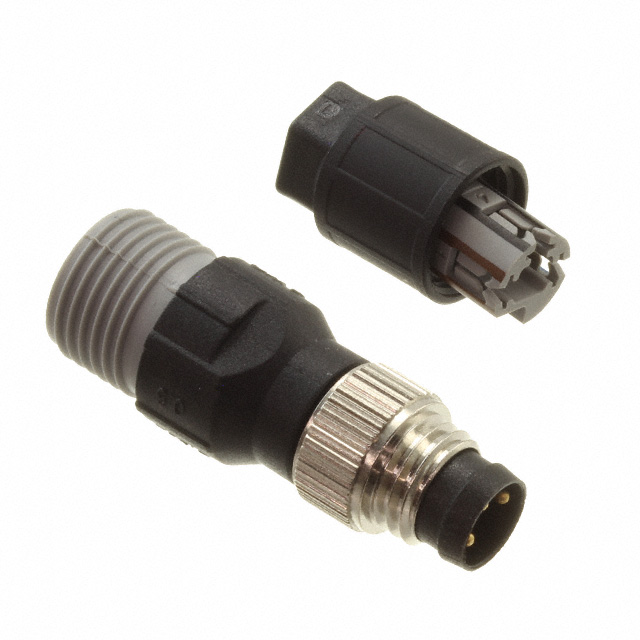

CONN PLUG MALE 3POS GOLD IDC
| Part | Contact Finish - Mating | Shell Size - Insert | Voltage Rating | Voltage Rating (Type) | Color | Contact Material | Operating Temperature (Min) | Operating Temperature (Max) | Features | Fastening Type | Mounting Type | Shell Finish | Shell Material | Ingress Protection Description | Ingress Protection IP Rating | Number of Positions | Backshell Material, Plating | Cable Opening (Max) | Cable Opening (Min) | Primary Material | Applications | Termination | Current Rating | Shielding | Connector Type | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pepperl+Fuchs, Inc. | Gold | M8-3 | 60 V | DC | Black Silver | Copper Tin | -25 °C | 80 °C | Backshell | Threaded | Free Hanging (In-Line) | Nickel | Brass | Dust Tight Water Resistant Waterproof | IP65 IP67 | 3 | Nylon 6 Polyamide (PA6) | 0.197 in | 0.098 in | Metal | Industrial Automation | IDC | 4 A | Unshielded | Male Pins Plug | |
 Pepperl+Fuchs, Inc. | Gold | M8-3 | 60 V | Black Silver | Copper Zinc | -40 °C | 85 °C | Backshell | Threaded | Free Hanging (In-Line) | Nickel | Copper Zinc | Dust Tight Waterproof | IP67 | 3 | Polybutylene Terephthalate (PBT) | 0.197 in | 0.138 in | Metal | Industrial Automation | Screw | 4 A | Unshielded | Male Pins Plug | UL94 V-0 |
