CBTL08 Series

Catalog

USB TYPE-C HIGH PERFORMANCE CROSSBAR SWITCH IC/ REEL ROHS COMPLIANT: YES

Part	Mounting Type	On-State Resistance (Max)	-3db Bandwidth	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Package Name	Package Length	Package Width	Package / Case	Voltage - Supply, Single (V+)	Switch Circuit Type	Multiplexer Inputs	Demultiplexer Outputs	Voltage - Supply, Single (V+) (Maximum)	Voltage - Supply, Single (V+) (Minimum)	Features	Number of Channels
NXP USA Inc. CBTL08GP053EVY	Surface Mount	10 Ohm	8.5 GHz	105 °C	-40 °C	USB	40-VFBGA	4.75 mm	3.25 mm	40-VFBGA	1.8 V
NXP USA Inc. CBTL08GP053EVY		10 Ohm	8.5 GHz	85 °C	-40 °C	USB	40-VFBGA	4.75 mm	3.25 mm	40-VFBGA		SPDT	2	1	3.6 V	2.9 V	USB 3.1	1

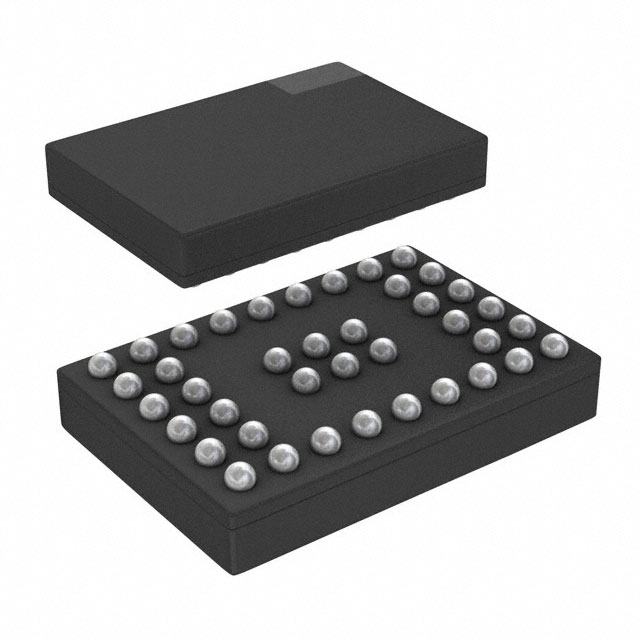

NXP USA Inc. CBTL08GP053EVAZ	Surface Mount	10 Ohm	8.5 GHz	105 °C	-40 °C	USB	40-VFBGA	4.75 mm	3.25 mm	40-VFBGA	1.8 V
