12-08PMMS Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

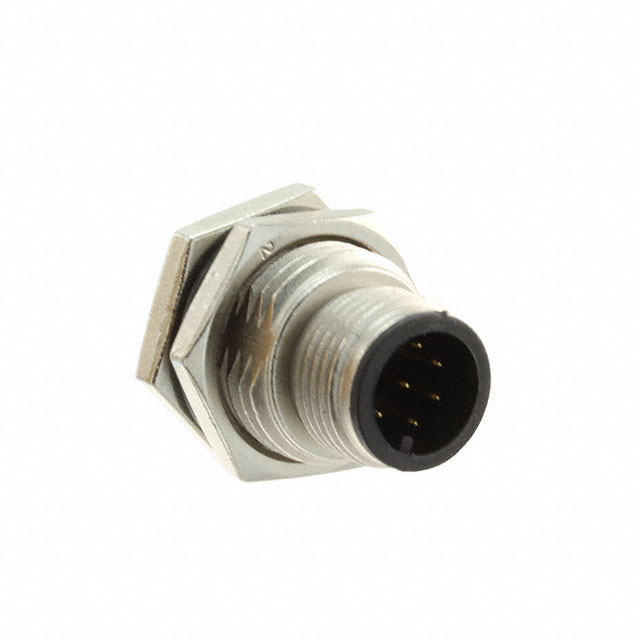

CONN PLUG MALE 8P GOLD SLDR CUP
| Part | Shell Size - Insert | Shell Material | Connector Type | Shielding | Mounting Type | Mounting Feature | Shell Finish | Primary Material | Orientation | Color | Termination | Number of Positions | Ingress Protection IP Rating | Ingress Protection Description | Current Rating | Contact Material | Contact Finish - Mating | Operating Temperature (Min) | Operating Temperature (Max) | Insert Material | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | M12-8 | Zinc Alloy | Male Pins Plug | Shielded | Panel Mount | Bulkhead Front Side Nut | Nickel | Metal | A | Silver | Solder Cup | 8 | IP68 | Dust Tight Waterproof | 2 A | Copper Alloy | Gold | -40 °C | 105 °C | Glass Filled Nylon PA Polyamide | Threaded |
