C091 11H014 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

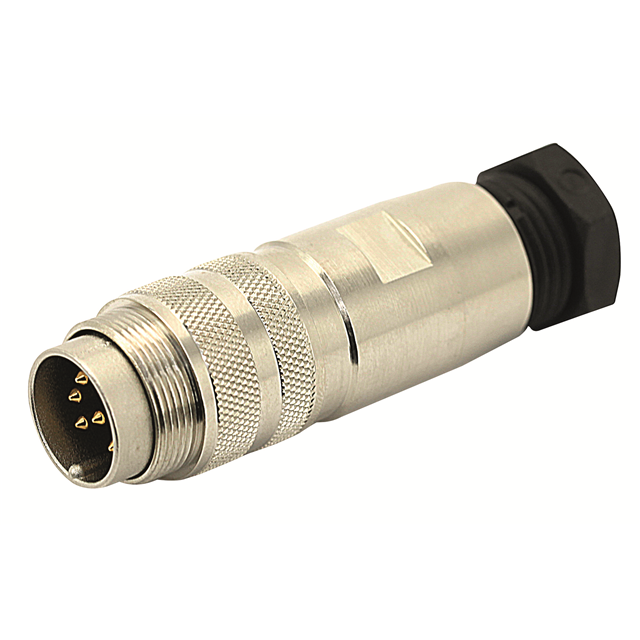

MALE CABLE CONNECTOR WITH INTERN
| Part | Mounting Type | Contact Size | Contact Type | Connector Type | Ingress Protection Description | Ingress Protection IP Rating | Shell Size - Insert | Shell Finish | Shielding | Shell Material | Insert Material | Housing Color | Material Flammability Rating | Note | Number of Positions | Features | Type | Orientation | Contact Shape | Fastening Type | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Free Hanging (In-Line) | 1 mm | Crimp | Plug Housing | Dust Tight Water Resistant Waterproof | IP65 IP67 | M16-14 | Nickel | Shielded | Zinc Die Cast | Thermoplastic | Silver | UL94 V-0 | Contacts Not Included | 14 | Backshell Cable Clamp Coupling Nut | For Male Pins | Keyed | Circular | Threaded | 100 °C | -40 °C |
