ADG452 Series

LC2MOS 5Ω RONSPST Switch

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

LC2MOS 5Ω RONSPST Switch

Part	Current - Leakage (Max)	Voltage - Supply, Dual (Minimum)	Voltage - Supply, Dual (Nominal)	Voltage - Supply, Dual (Maximum)	Voltage - Supply, Single (V+)	Channel Capacitance (CD(off))	Channel Capacitance (CS(off))	Number of Circuits	Switch Time Ton (Max)	Switch Time Toff (Max)	Operating Temperature (Max)	Operating Temperature (Min)	On-State Resistance (Max)	Switch Circuit Type	Switch Contact	Channel-to-Channel Matching (ΔRon)	Demultiplexer Outputs	Multiplexer Inputs	Package Name	Package Width	Package Length	Mounting Type	Crosstalk	Charge Injection
Analog Devices Inc./Maxim Integrated ADG452BRZ-REEL	500 pA	-4.5 V	4.5 V	20 V	12 V	37 pF	37 pF	4	180 ns	140 ns	85 °C	-40 °C	5 Ohm	SPST	NO	100 mOhm	1	1	16-SOIC	3.9 mm	0.154 in	Surface Mount	-90 dB	20 pC
Analog Devices Inc./Maxim Integrated ADG452BRUZ	500 pA	-4.5 V	4.5 V	20 V	12 V	37 pF	37 pF	4	180 ns	140 ns	85 °C	-40 °C	5 Ohm	SPST	NO	100 mOhm	1	1	16-TSSOP	4.4 mm	0.173 in	Surface Mount	-90 dB	20 pC
Analog Devices Inc./Maxim Integrated ADG452BRZ	500 pA	-4.5 V	4.5 V	20 V	12 V	37 pF	37 pF	4	180 ns	140 ns	85 °C	-40 °C	5 Ohm	SPST	NO	100 mOhm	1	1	16-SOIC	3.9 mm	0.154 in	Surface Mount	-90 dB	20 pC
Analog Devices Inc./Maxim Integrated ADG452BNZ	500 pA	-4.5 V	4.5 V	20 V	12 V	37 pF	37 pF	4	180 ns	140 ns	85 °C	-40 °C	5 Ohm	SPST	NO	100 mOhm	1	1	16-DIP 16-PDIP	7.62 mm	0.3 in	Through Hole	-90 dB	20 pC
Analog Devices Inc./Maxim Integrated ADG452BRZ-REEL7	500 pA	-4.5 V	4.5 V	20 V	12 V	37 pF	37 pF	4	180 ns	140 ns	85 °C	-40 °C	5 Ohm	SPST	NO	100 mOhm	1	1	16-SOIC	3.9 mm	0.154 in	Surface Mount	-90 dB	20 pC
Analog Devices Inc./Maxim Integrated ADG452BN	500 pA	-4.5 V	4.5 V	20 V	12 V	37 pF	37 pF	4	180 ns	140 ns	85 °C	-40 °C	5 Ohm	SPST	NO	100 mOhm	1	1	16-DIP 16-PDIP	7.62 mm	0.3 in	Through Hole	-90 dB	20 pC
Analog Devices Inc./Maxim Integrated ADG452BRUZ-REEL7	500 pA	-4.5 V	4.5 V	20 V	12 V	37 pF	37 pF	4	180 ns	140 ns	85 °C	-40 °C	5 Ohm	SPST	NO	100 mOhm	1	1	16-TSSOP	4.4 mm	0.173 in	Surface Mount	-90 dB	20 pC
Analog Devices Inc./Maxim Integrated ADG452BR-REEL7	500 pA	-4.5 V	4.5 V	20 V	12 V	37 pF	37 pF	4	180 ns	140 ns	85 °C	-40 °C	5 Ohm	SPST	NO	100 mOhm	1	1	16-SOIC	3.9 mm	0.154 in	Surface Mount	-90 dB	20 pC
Analog Devices Inc./Maxim Integrated ADG452BRUZ-REEL	500 pA	-4.5 V	4.5 V	20 V	12 V	37 pF	37 pF	4	180 ns	140 ns	85 °C	-40 °C	5 Ohm	SPST	NO	100 mOhm	1	1	16-TSSOP	4.4 mm	0.173 in	Surface Mount	-90 dB	20 pC

Catalog

LC2MOS 5Ω RONSPST Switch

Description

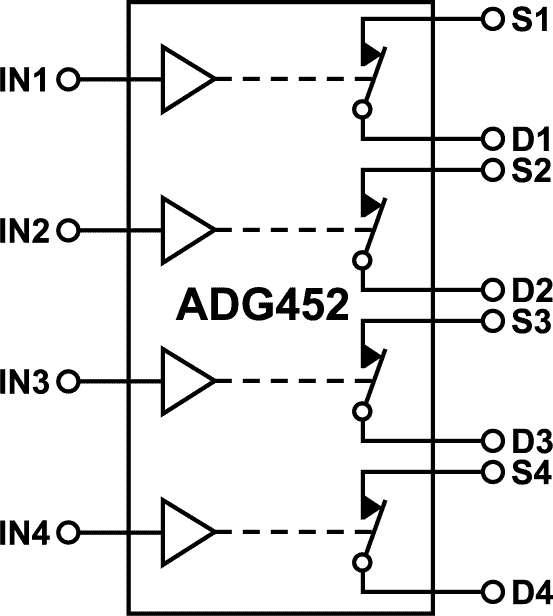

The ADG452 is a monolithic CMOS device comprising four independently selectable switches. It is designed on an enhanced LC2MOS process which provides low power dissipation yet gives high switching speed and low on resistance.The ADG452 switches are turned on with a logic high on the appropriate control input. Each switch conducts equally well in both directions when ON and each has an input signal range that extends to the supplies. All switches exhibit break-before-make switching action for use in multiplexer applications. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.
