MC744 Series

Catalog

A7PM PB-FREE/ TRAY ROHS COMPLIANT: YES

Part	Operating Temperature (Max)	Co-Processors/DSP	Voltage - I/O (Option 2)	Voltage - I/O (Option 1)	Core Processor	Speed	Package / Case	Package Width	Package Name	Package Length	Bus Width	Number of Cores	Mounting Type	Graphics Acceleration	Voltage - I/O (Option 3)
NXP USA Inc. MC7447AVU1167NB	105 °C	Multimedia SIMD	2.5 V	1.8 V	PowerPC G4	1.167 GHZ	360-BCBGA FCCBGA	25 mm	360-FCCBGA	25 mm	32 Bit	1 Core	Surface Mount	No
NXP USA Inc. MC7448HX1000NC	105 °C	Multimedia SIMD	1.8 V	1.5 V	PowerPC G4	1 GHz	360-BCBGA FCCBGA	25 mm	360-FCCBGA	25 mm	32 Bit	1 Core	Surface Mount	No	2.5 V

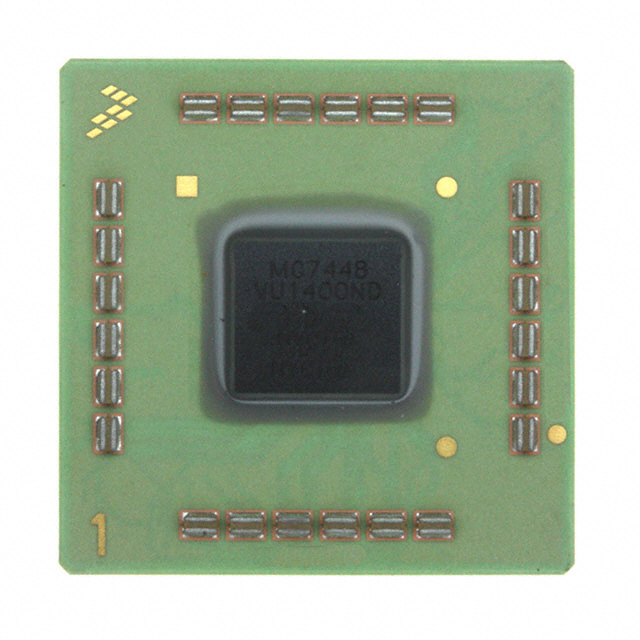

NXP USA Inc. MC7448VU1400NC	105 °C	Multimedia SIMD	1.8 V	1.5 V	PowerPC G4	1.4 GHz	360-CBGA FCCBGA	25 mm	360-FCCBGA	25 mm	32 Bit	1 Core	Surface Mount	No	2.5 V
NXP USA Inc. MC7447AHX867NB	105 °C	Multimedia SIMD	2.5 V	1.8 V	PowerPC G4	867 MHz	360-BCBGA FCCBGA	25 mm	360-FCCBGA	25 mm	32 Bit	1 Core	Surface Mount	No
NXP USA Inc. MC7448HX1267NC	105 °C	Multimedia SIMD	1.8 V	1.5 V	PowerPC G4	1.267 GHz	360-BCBGA FCCBGA	25 mm	360-FCCBGA	25 mm	32 Bit	1 Core	Surface Mount	No	2.5 V
NXP USA Inc. MC7447AVS1267LB	105 °C	Multimedia SIMD	2.5 V	1.8 V	PowerPC G4	1.267 GHz	360-CLGA FCCLGA	25 mm	360-FCCLGA	25 mm	32 Bit	1 Core	Surface Mount	No
NXP USA Inc. MC7447AHX1000LB	105 °C	Multimedia SIMD	2.5 V	1.8 V	PowerPC G4	1 GHz	360-BCBGA FCCBGA	25 mm	360-FCCBGA	25 mm	32 Bit	1 Core	Surface Mount	No
NXP USA Inc. MC7447AHX1000LB	105 °C	Multimedia SIMD	2.5 V	1.8 V	PowerPC G4	1 GHz	360-BCBGA FCCBGA	25 mm	360-FCCBGA	25 mm	32 Bit	1 Core	Surface Mount	No
NXP USA Inc. MC7448HX1400NC	105 °C	Multimedia SIMD	1.8 V	1.5 V	PowerPC G4	1.4 GHz	360-BCBGA FCCBGA	25 mm	360-FCCBGA	25 mm	32 Bit	1 Core	Surface Mount	No	2.5 V
NXP USA Inc. MC7447AHX733NB	105 °C	Multimedia SIMD	2.5 V	1.8 V	PowerPC G4	733 MHz	360-BCBGA FCCBGA	25 mm	360-FCCBGA	25 mm	32 Bit	1 Core	Surface Mount	No
