52284 Series

Catalog

CONN RING CIRC 20AWG #6 CRIMP

Part	Insulation Diameter (Min)	Insulation Diameter (Max)	Material - Insulation	Mounting Type	Features	Stud/Tab Size	Color	Thickness	Contact Finish	Terminal Type	Insulation	Termination	Contact Material	Length - Overall	Width - Outer Edges	Wire Gauge

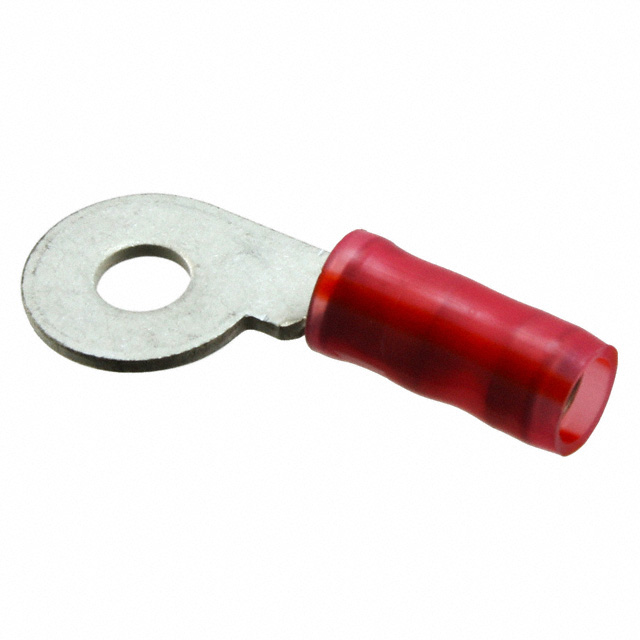

TE Connectivity AMP Connectors 52284-2	0.046 in	0.11 in	Nylon PA Polyamide	Free Hanging (In-Line)	Insulation Restriction Offset Holes Serrations	6 Stud	Red Red Stripe	0.031 in	Tin	Circular	Insulated	Crimp	Copper	0.946 in	0.375 in	20 AWG

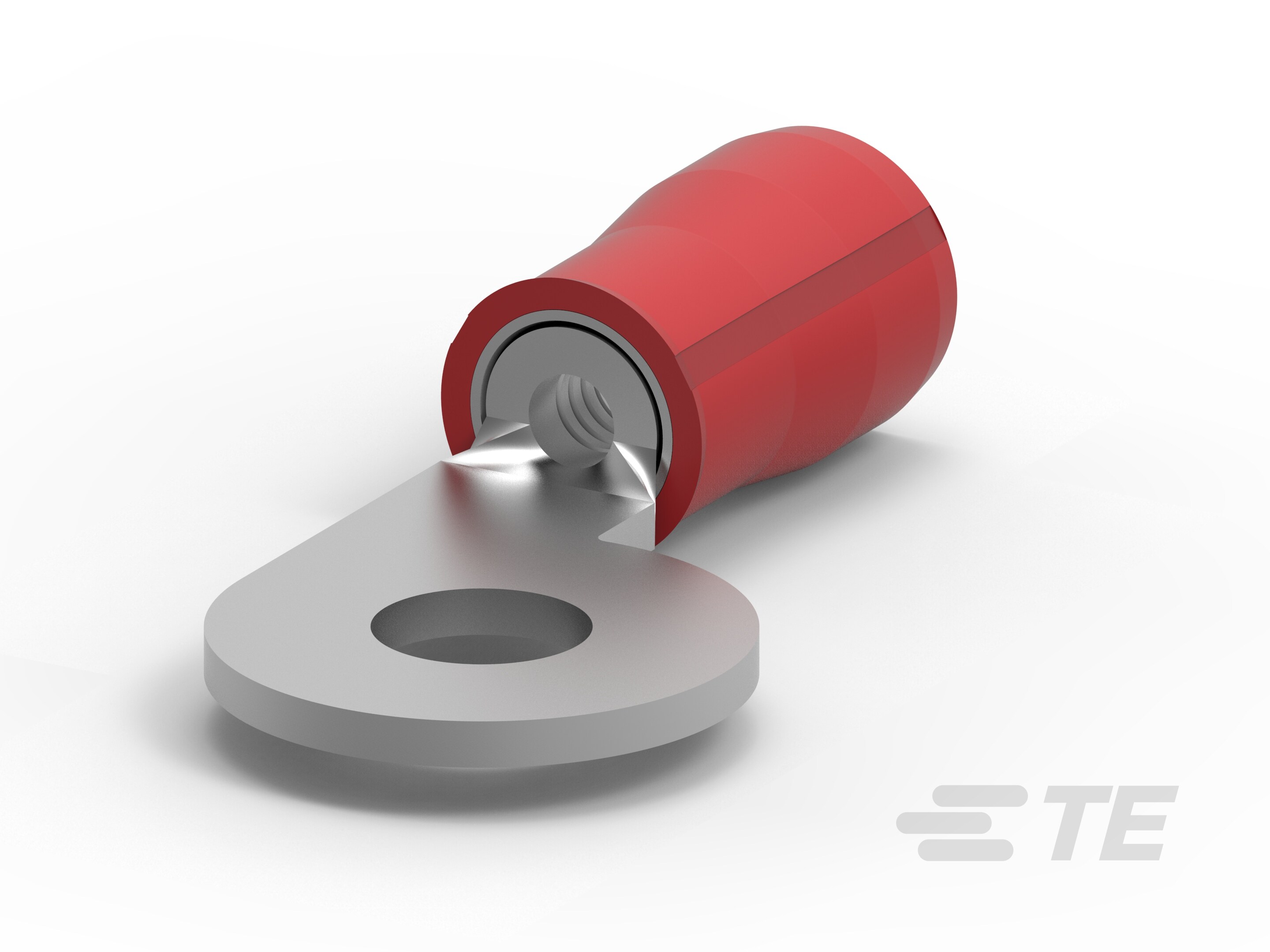

TE Connectivity AMP Connectors 52284-3	0.046 in	0.11 in	Nylon PA Polyamide	Free Hanging (In-Line)	Insulation Restriction Offset Holes Serrations	10 Stud	Red Red Stripe	0.031 in	Tin	Circular	Insulated	Crimp	Copper	0.946 in	0.375 in	20 AWG
