5645522 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

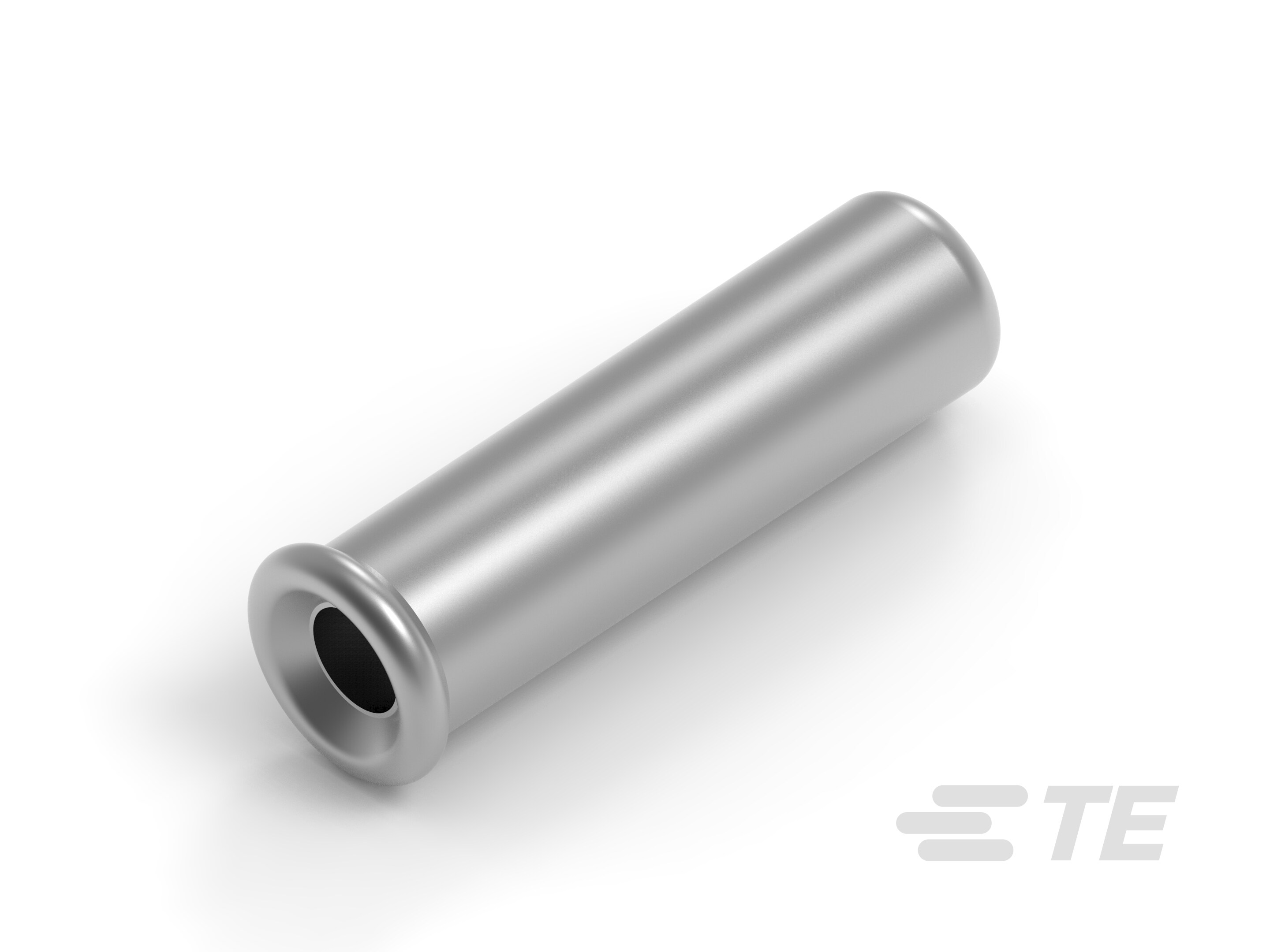

MSS, SER 4, W/SEAL,SN-SN,STRIP
| Part | Contact Finish Thickness | Flange Diameter | Accepts Pin Diameter (Min) | Accepts Pin Diameter (Max) | Termination | Mounting Hole Diameter | Length - Overall | Contact Finish | Contact Material | Tail Type | Socket Depth | Board Thickness (Min) | Board Thickness (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 100 µin | 0.089 in | 0.034 in | 0.041 in | Solder | 0.071 in | 0.26 in | Tin | Beryllium Copper | No Tail | 0.253 in | 0.031 in | 0.125 in |
