320567 Series

Catalog

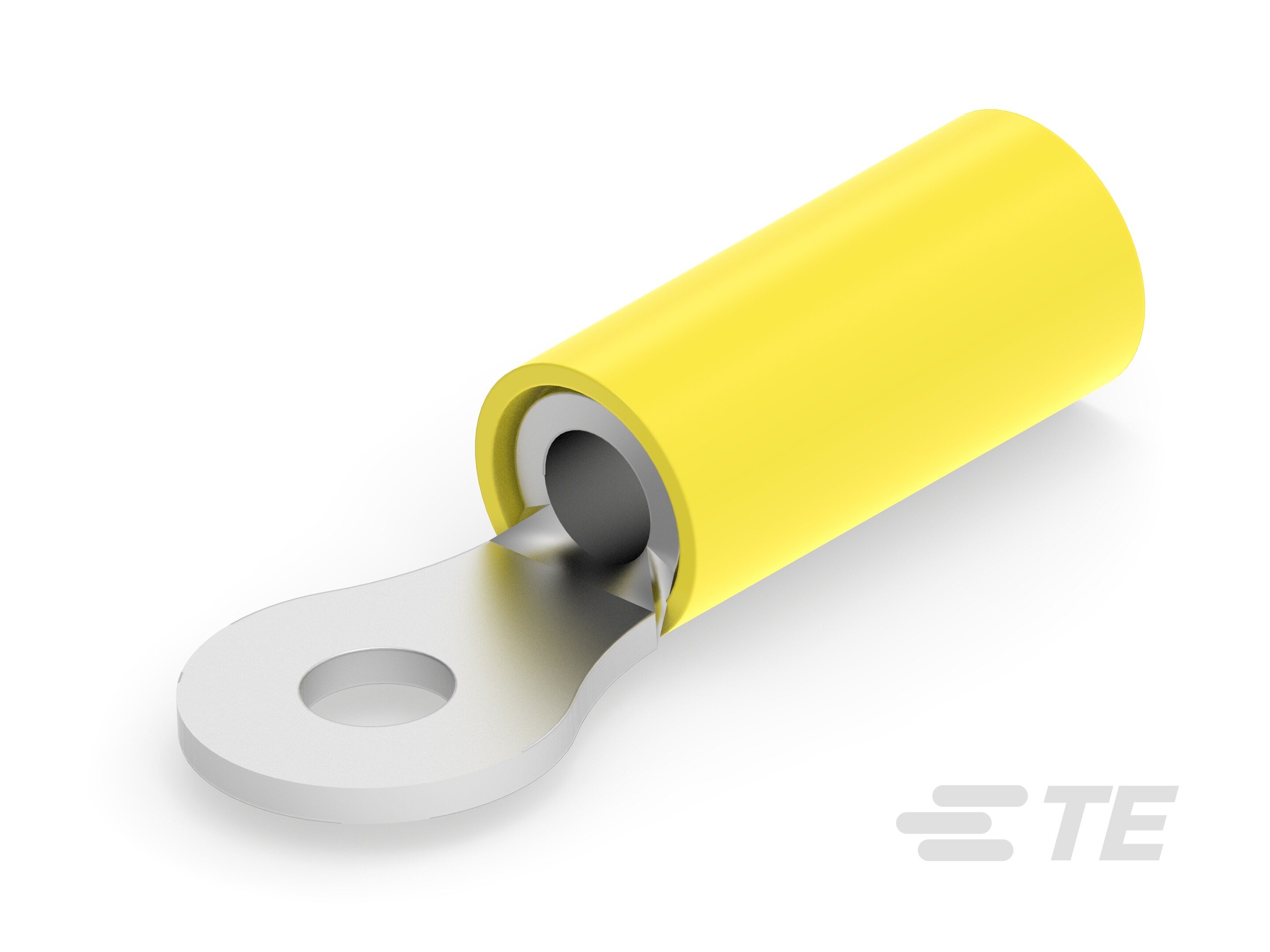

CONN RING CIRC 10-12AWG #6 CRIMP

Part	Insulation Diameter (Min)	Insulation Diameter (Max)	Material - Insulation	Color	Contact Material	Thickness	Width - Outer Edges	Features	Stud/Tab Size	Terminal Type	Termination	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Insulation	Length - Overall	Contact Finish	Mounting Type
TE Connectivity AMP Connectors 8-320567-2	0.15 in	0.23 in	Nylon PA Polyamide	Yellow	Copper	0.04 in	0.375 in	Serrated Termination	6 Stud	Circular	Crimp	12 AWG	10 AWG	Insulated	1.083 in	Tin	Free Hanging (In-Line)
TE Connectivity AMP Connectors 2-320567-2	0.15 in	0.23 in	Nylon PA Polyamide	Yellow	Copper	0.04 in	0.375 in	Serrated Termination	6 Stud	Circular	Crimp	12 AWG	10 AWG	Insulated	1.083 in	Tin	Free Hanging (In-Line)
