647168 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

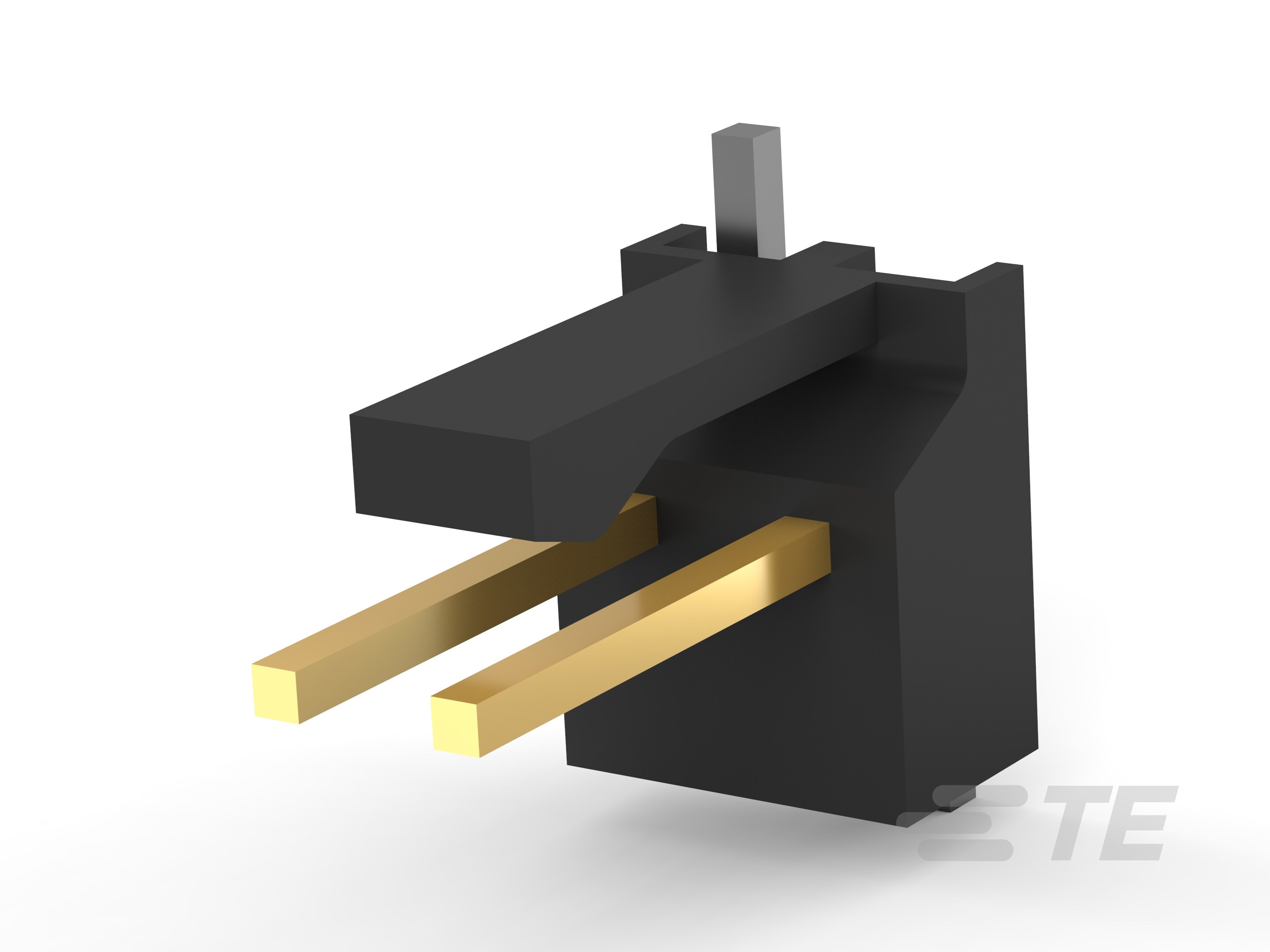

CONN HEADER SMD 3POS 2.54MM
| Part | Voltage Rating | Mounting Type | Contact Shape | Contact Type | Connector Type | Contact Finish Thickness - Mating | Insulation Material | Insulation Height | Number of Positions | Operating Temperature (Min) | Operating Temperature (Max) | Contact Material | Fastening Type | Material Flammability Rating | Insulation Color | Number of Positions Loaded | Contact Finish - Post | Contact Finish - Mating | Pitch - Mating | Current Rating | Current Rating | Shrouding | Number of Rows | Contact Length - Mating | Style | Termination | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 250 V | Surface Mount | Square | Male Pin | Header | 30 µin | Nylon 4/6 Polyamide (PA46) | 0.347 in | 3 | -55 °C | 105 °C | Copper Alloy | Friction Lock | UL94 V-0 | Black | All | Tin-Lead | Gold | 0.1 in | 0 A | Varies by Wire Gauge | Shrouded - 1 Wall | 1 | 0.29 in | Board Cable/Wire | Solder | General Purpose |
 TE Connectivity AMP Connectors | 250 V | Surface Mount | Square | Male Pin | Header | 30 µin | Nylon 4/6 Polyamide (PA46) | 0.347 in | 4 | -55 °C | 105 °C | Copper Alloy | Friction Lock | UL94 V-0 | Black | All | Tin-Lead | Gold | 0.1 in | 0 A | Varies by Wire Gauge | Shrouded - 1 Wall | 1 | 0.29 in | Board Cable/Wire | Solder | General Purpose |
 TE Connectivity AMP Connectors | 250 V | Surface Mount | Square | Male Pin | Header | 30 µin | Nylon 4/6 Polyamide (PA46) | 0.347 in | 2 | -55 °C | 105 °C | Copper Alloy | Friction Lock | UL94 V-0 | Black | All | Tin | Gold | 0.1 in | 0 A | Varies by Wire Gauge | Shrouded - 1 Wall | 1 | 0.29 in | Board Cable/Wire | Solder | General Purpose |
 TE Connectivity AMP Connectors | 250 V | Surface Mount | Square | Male Pin | Header | 30 µin | Nylon 4/6 Polyamide (PA46) | 0.347 in | 4 | -55 °C | 105 °C | Copper Alloy | Friction Lock | UL94 V-0 | Black | All | Tin | Gold | 0.1 in | 0 A | Varies by Wire Gauge | Shrouded - 1 Wall | 1 | 0.29 in | Board Cable/Wire | Solder | General Purpose |
 TE Connectivity AMP Connectors | 250 V | Surface Mount | Square | Male Pin | Header | 30 µin | Nylon 4/6 Polyamide (PA46) | 0.347 in | 7 | -55 °C | 105 °C | Copper Alloy | Friction Lock | UL94 V-0 | Black | All | Tin | Gold | 0.1 in | 0 A | Varies by Wire Gauge | Shrouded - 1 Wall | 1 | 0.29 in | Board Cable/Wire | Solder | General Purpose |
 TE Connectivity AMP Connectors | 250 V | Surface Mount | Square | Male Pin | Header | 30 µin | Nylon 4/6 Polyamide (PA46) | 0.347 in | 3 | -55 °C | 105 °C | Copper Alloy | Friction Lock | UL94 V-0 | Black | All | Tin | Gold | 0.1 in | 0 A | Varies by Wire Gauge | Shrouded - 1 Wall | 1 | 0.29 in | Board Cable/Wire | Solder | General Purpose |
 TE Connectivity AMP Connectors | 250 V | Surface Mount | Square | Male Pin | Header | 30 µin | Nylon 4/6 Polyamide (PA46) | 0.347 in | 10 | -55 °C | 105 °C | Copper Alloy | Friction Lock | UL94 V-0 | Black | All | Tin | Gold | 0.1 in | 0 A | Varies by Wire Gauge | Shrouded - 1 Wall | 1 | 0.29 in | Board Cable/Wire | Solder | General Purpose |
 TE Connectivity AMP Connectors | 250 V | Surface Mount | Square | Male Pin | Header | 30 µin | Nylon 4/6 Polyamide (PA46) | 0.347 in | 10 | -55 °C | 105 °C | Copper Alloy | Friction Lock | UL94 V-0 | Black | All | Tin-Lead | Gold | 0.1 in | 0 A | Varies by Wire Gauge | Shrouded - 1 Wall | 1 | 0.29 in | Board Cable/Wire | Solder | General Purpose |
