M39029/29 Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K

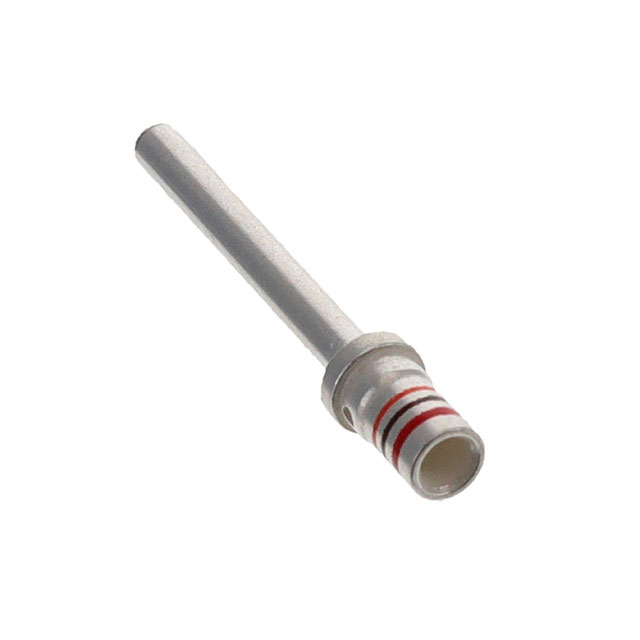

CONTACT PIN 12-14AWG CRIMP SILVR
| Part | Contact Finish Thickness | Wire Gauge or Range - mm² (Maximum) | Wire Gauge or Range - mm² (Minimum) | Type | Contact Size | Contact Finish | Contact Termination | Wire Gauge or Range - AWG (Max) | Wire Gauge or Range - AWG (Min) | Contact Type | Qualification | Grade | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Aerospace Operations | 200 µin | 3 mm² | 2 mm² | Machined Power | 12 | Silver | Crimp | 14 AWG | 12 AWG | Pin | MIL-C-39029 | Military | Copper Alloy |
 Amphenol Aerospace Operations | 200 µin | 8.5 mm² | 5 mm² | Machined Power | 8 | Silver | Crimp | 10 AWG | 8 AWG | Pin | MIL-C-39029 | Military | Copper Alloy |
Amphenol Aerospace Operations | 200 µin | 8.5 mm² | 5 mm² | Machined Power | 8 | Silver | Crimp | 10 AWG | 8 AWG | Pin | MIL-C-39029 | Military | Copper Alloy |

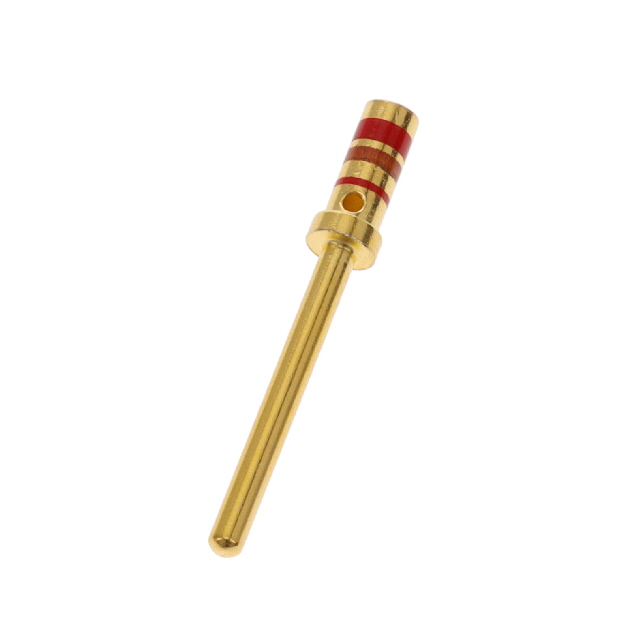

 Amphenol Aerospace Operations | 50 µin | 1.4 mm² | 0.5 mm² | Machined Power | 16 S | Gold | Crimp | 20 AWG | 16 AWG | Pin | MIL-C-39029 | Military | Copper Alloy |
