640867 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN EDGE SGL FML 3POS 0.156 TIN
| Part | Number of Rows | Contact Finish | Flange Feature Diameter | Flange Feature | Read Out | Operating Temperature (Min) | Operating Temperature (Max) | Pitch | Termination | Card Thickness | Number of Positions | Contact Material | Material - Insulation | Mounting Type | Contact Finish Thickness | Color | Card Type | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

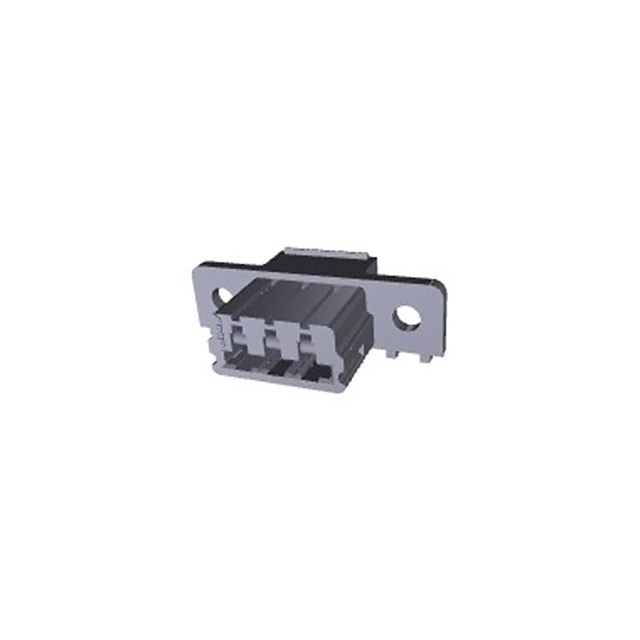

 TE Connectivity AMP Connectors | 1 | Tin | 0.125 in | Top Mount Opening Unthreaded | Single | -55 °C | 105 °C | 0.156 in | IDC | 0.062 in | 3 | Copper Alloy | Polyester Thermoplastic | Panel Mount | 8 µin | White | Non Specified Single Edge | Female |

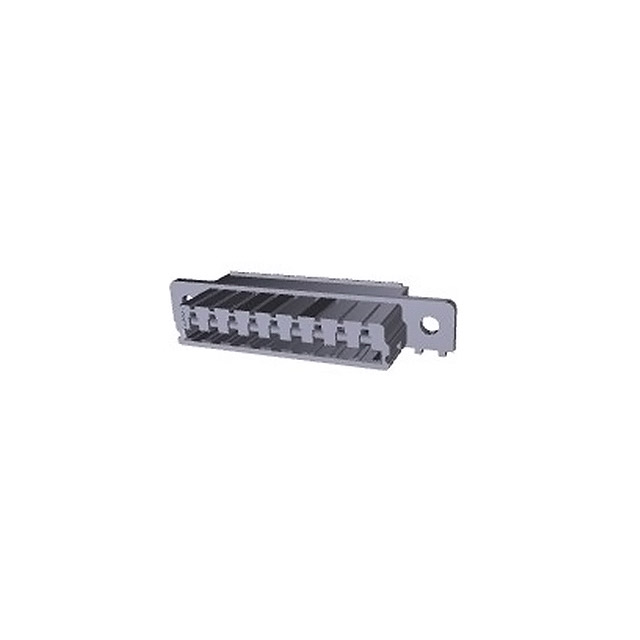

 TE Connectivity AMP Connectors | 1 | Tin | 0.125 in | Top Mount Opening Unthreaded | Single | -55 °C | 105 °C | 0.156 in | IDC | 0.062 in | 9 | Copper Alloy | Polyester Thermoplastic | Panel Mount | 8 µin | White | Non Specified Single Edge | Female |

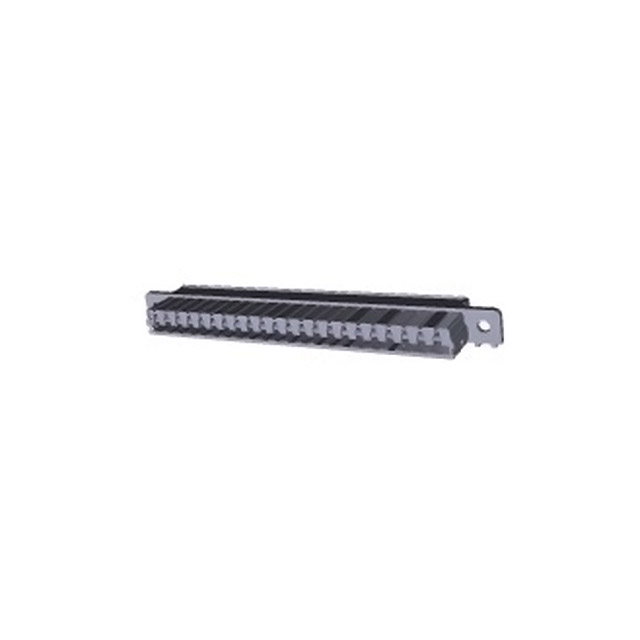

 TE Connectivity AMP Connectors | 1 | Tin | 0.125 in | Top Mount Opening Unthreaded | Single | -55 °C | 105 °C | 0.156 in | IDC | 0.062 in | 22 | Copper Alloy | Polyester Thermoplastic | Panel Mount | 8 µin | White | Non Specified Single Edge | Female |
