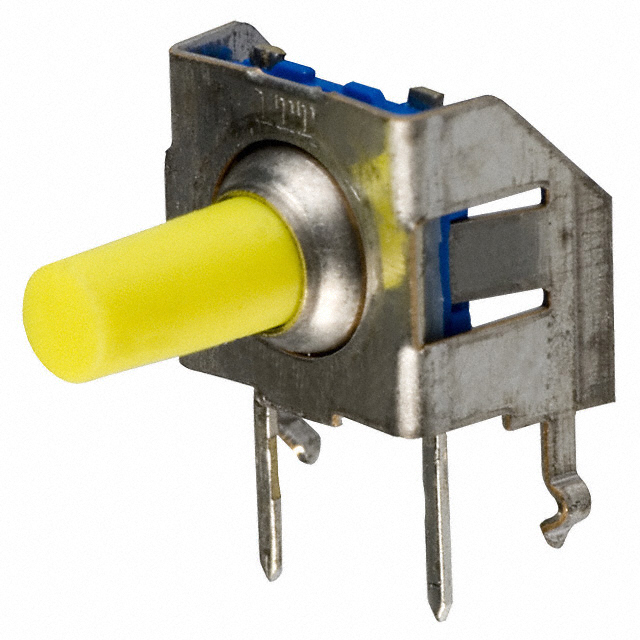

KSL0V5 Series
Manufacturer: LITTELFUSE
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 32V
| Part | Switch Function | Contact Rating (Current) | Termination Style | Illumination | Circuit | Actuator Length (Right Angle) | Actuator Type | Outline Width | Outline Length | Actuator Orientation | Operating Temperature (Max) | Operating Temperature (Min) | Ingress Protection IP Rating | Ingress Protection Description | Mounting Type | Operating Force | Switch Travel | Mechanical Life (Cycles) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Off-Mom | 0.05 A | PC Pin | Non-Illuminated | SPST-NO | 8.53 mm | Standard | 8 mm | 8 mm | Side Actuated | 90 °C | -40 °C | IP60 | Dust Tight | Right Angle Through Hole | 0.5 kgf | ||
LITTELFUSE | Off-Mom | 0.01 A | PC Pin | Non-Illuminated | SPST-NO | 8.53 mm | Standard | 8 mm | 8 mm | Side Actuated | 125 °C | -40 °C | IP60 | Dust Tight | Right Angle Through Hole | 0.5 kgf | 0.7 mm | 100000 Cycles |
