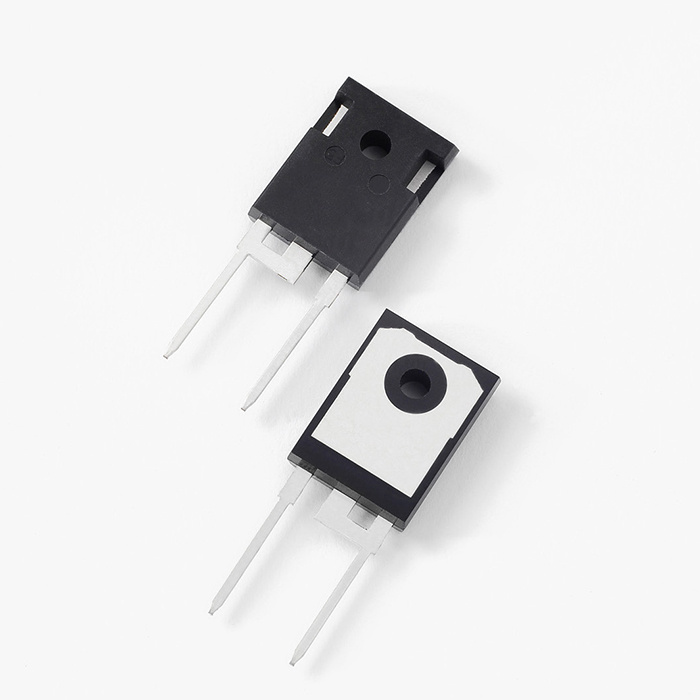

DUR60120W Series

1.2KV 60A Ultrafast Rectifier DUR series

Catalog

1.2KV 60A Ultrafast Rectifier DUR series

Part	Speed - Fast Recovery (Maximum)	Speed - Fast Recovery (Minimum)	Package / Case	Reverse Recovery Time (trr)	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max)	Mounting Type	Package Name	Technology	Voltage - DC Reverse (Vr) (Max)	Current - Reverse Leakage
LITTELFUSE DUR60120W	500 ns	200 mA	TO-247-2	100 ns	150 °C	-55 °C	60 A	3.5 V	Through Hole	TO-247AC	Standard	1200 V	650 µA

Catalog

1.2KV 60A Ultrafast Rectifier DUR series

Description

Littelfuse DUR60120W series Ultrafast Recovery Rectifier is designed to meet the general requirements of commercial applications by providing low Trr, high-temperature, low-leakage and low forward voltage drop products. It is suitable for output rectifier, free-wheeling or boost diode in high-frequency power switching application such as switch mode power supply and DC-DC converters.
