34167 Series

Catalog

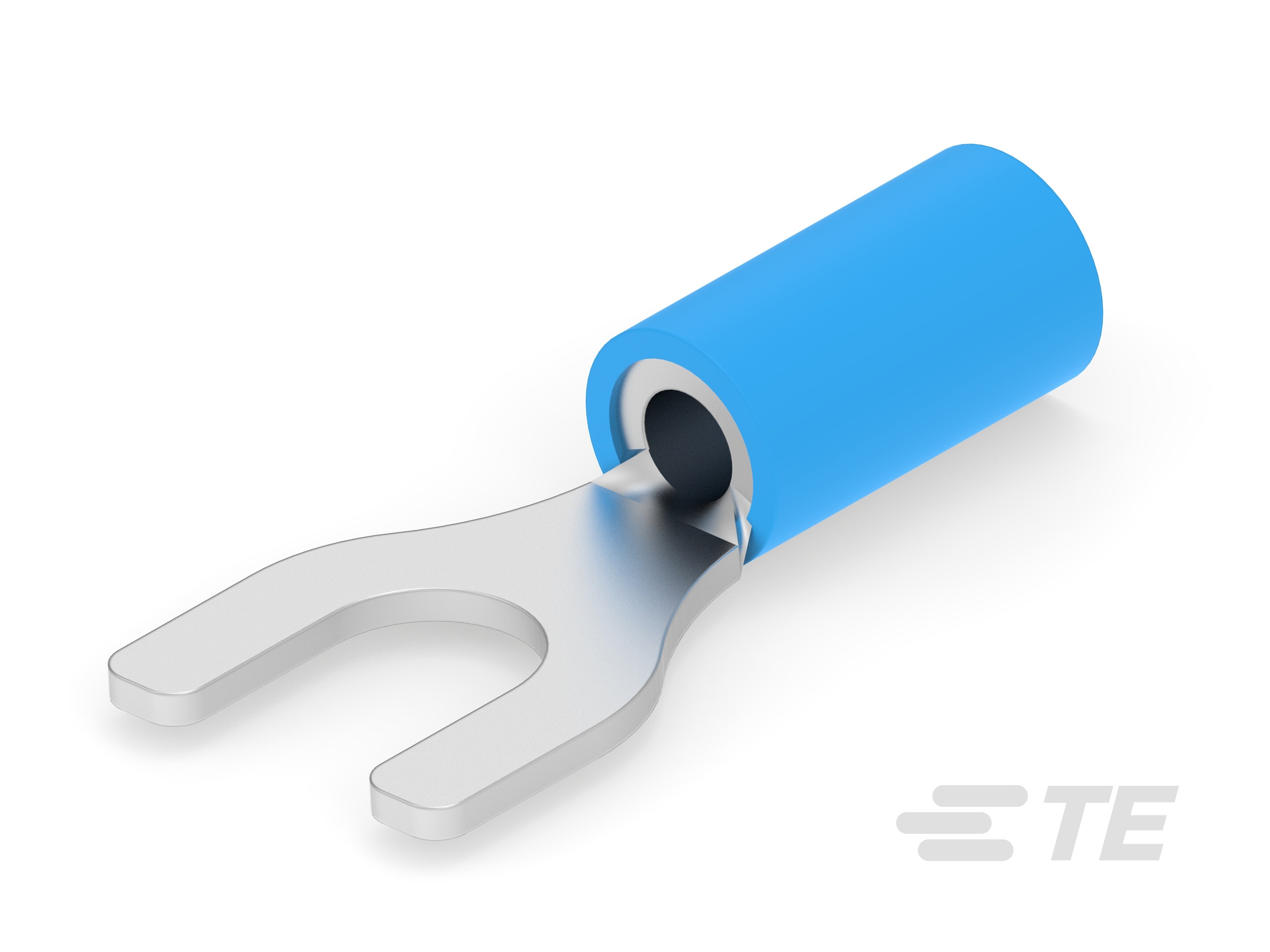

FORK / SPADE TONGUE TERMINAL, PLASTI-GRIP SERIES, 16 AWG, 14 AWG, 2.62 MM², M5, #10

Part	Color	Length - Overall	Terminal Type	Features	Stud/Tab Size	Contact Material	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Width - Outer Edges	Termination	Insulation	Mounting Type	Length - Termination	Length - Ring Center to Termination	Insulation Diameter (Max)	Insulation Diameter (Min)	Tongue Inside Opening	Material - Insulation
TE Connectivity AMP Connectors 2-34167-1	Blue	0.92 in	Standard	Serrated Termination	10 Stud	Copper	16 AWG	14 AWG	0.385 in	Crimp	Insulated	Free Hanging (In-Line)	0.416 in	0.312 in	0.193 in	0.118 in	0.197 in	Poly-Vinyl Chloride PVC
TE Connectivity AMP Connectors 8-34167-1	Blue	0.92 in	Standard	Serrated Termination	10 Stud	Copper	16 AWG	14 AWG	0.385 in	Crimp	Insulated	Free Hanging (In-Line)	0.416 in	0.312 in	0.193 in	0.118 in	0.197 in	Poly-Vinyl Chloride PVC
