532448 Series

Catalog

HDI PIN ASSY 4 ROW 160 POS

Part	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Features	Connector Type	Color	Contact Finish Thickness	Number of Positions Loaded	Connector Style	Number of Rows	Termination	Contact Finish	Mounting Type	Number of Positions	Pitch

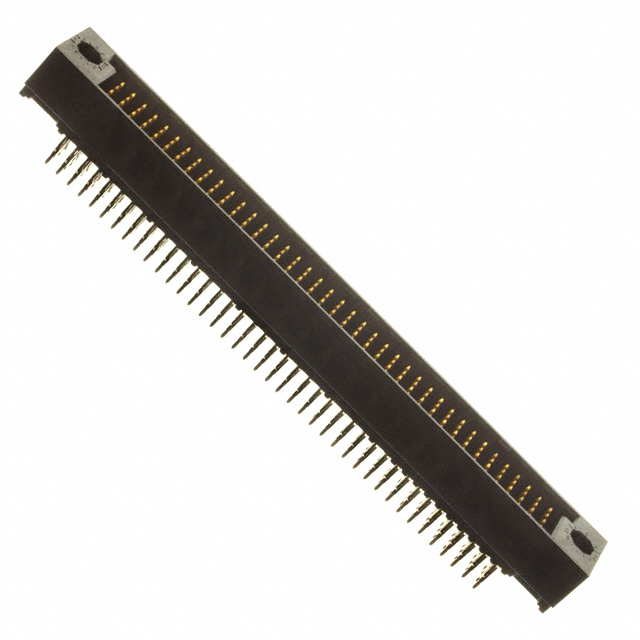

TE Connectivity AMP Connectors 532448-5	UL94 V-0	125 °C	-65 °C	Mating Guide	Header Male Pins	Black	30 µin	All	High Density (HDC HDI HPC)	4	Press-Fit	Gold	Through Hole	160	0.1 in
TE Connectivity AMP Connectors 532448-6	UL94 V-0	125 °C	-65 °C	Mating Guide	Header Male Pins	Black	30 µin	All	High Density (HDC HDI HPC)	4	Press-Fit	Gold	Through Hole	180	0.1 in

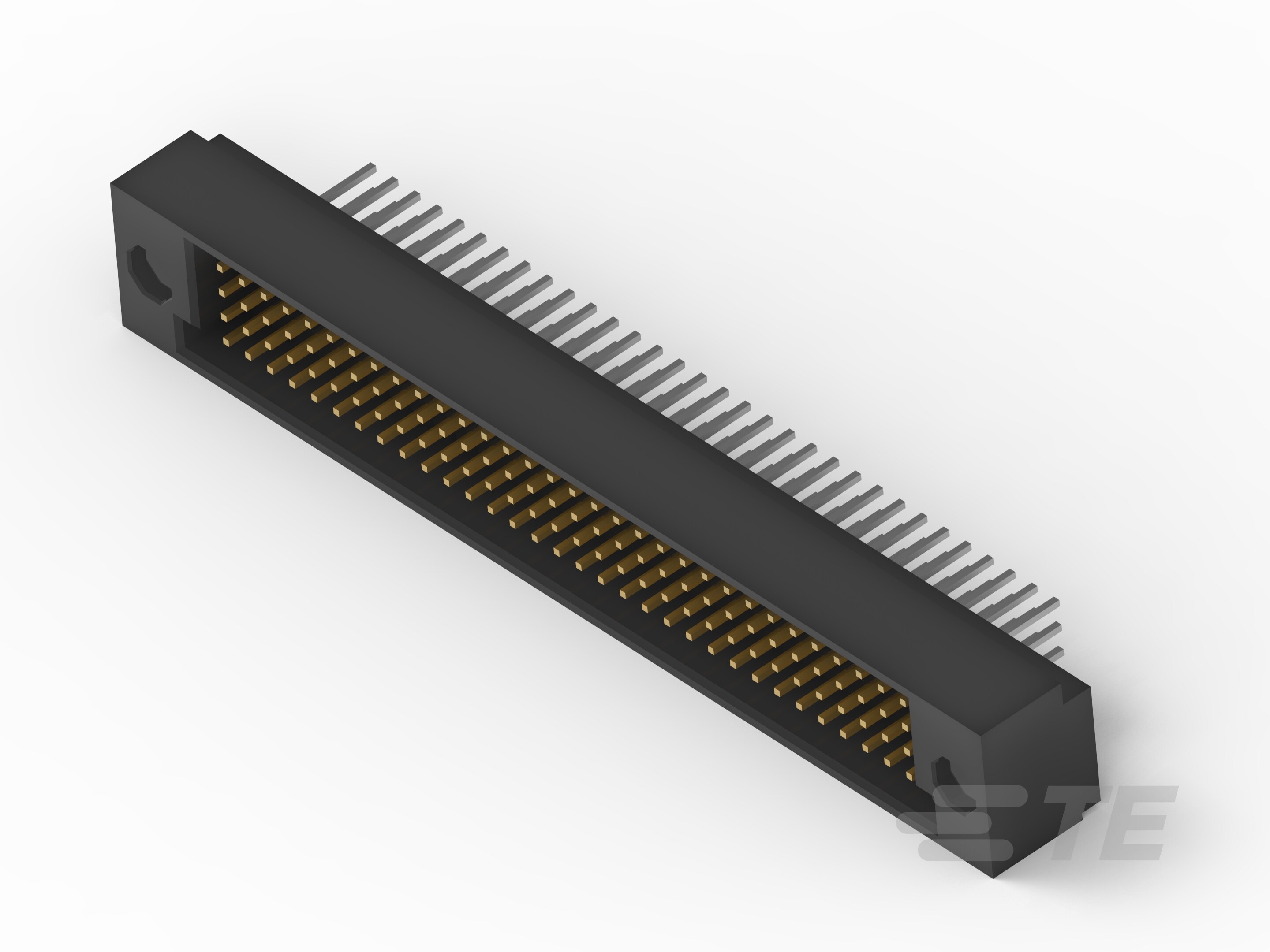

TE Connectivity AMP Connectors 532448-3	UL94 V-0	125 °C	-65 °C	Mating Guide	Header Male Pins	Black	30 µin	All	High Density (HDC HDI HPC)	4	Press-Fit	Gold	Through Hole	128	0.1 in
TE Connectivity AMP Connectors 532448-8	UL94 V-0	125 °C	-65 °C	Mating Guide	Header Male Pins	Black	30 µin	All	High Density (HDC HDI HPC)	4	Press-Fit	Gold	Through Hole	220	0.1 in

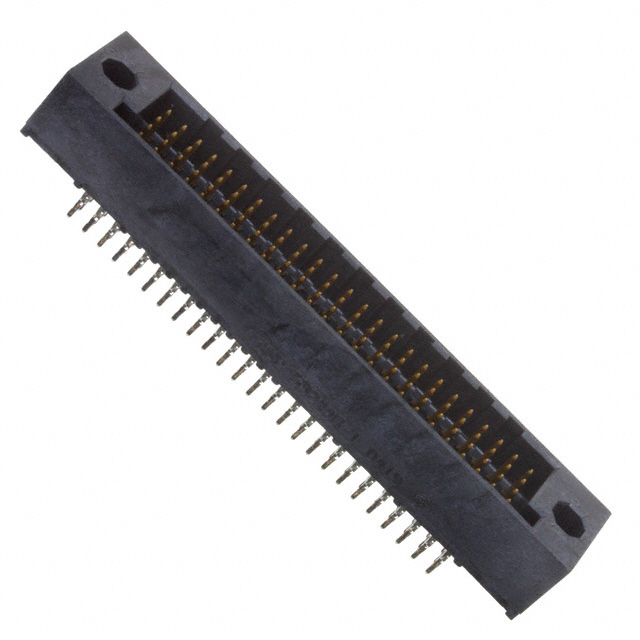

TE Connectivity AMP Connectors 532448-1	UL94 V-0	125 °C	-65 °C	Mating Guide	Header Male Pins	Black	30 µin	All	High Density (HDC HDI HPC)	4	Press-Fit	Gold	Through Hole	100	0.1 in
