35112 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

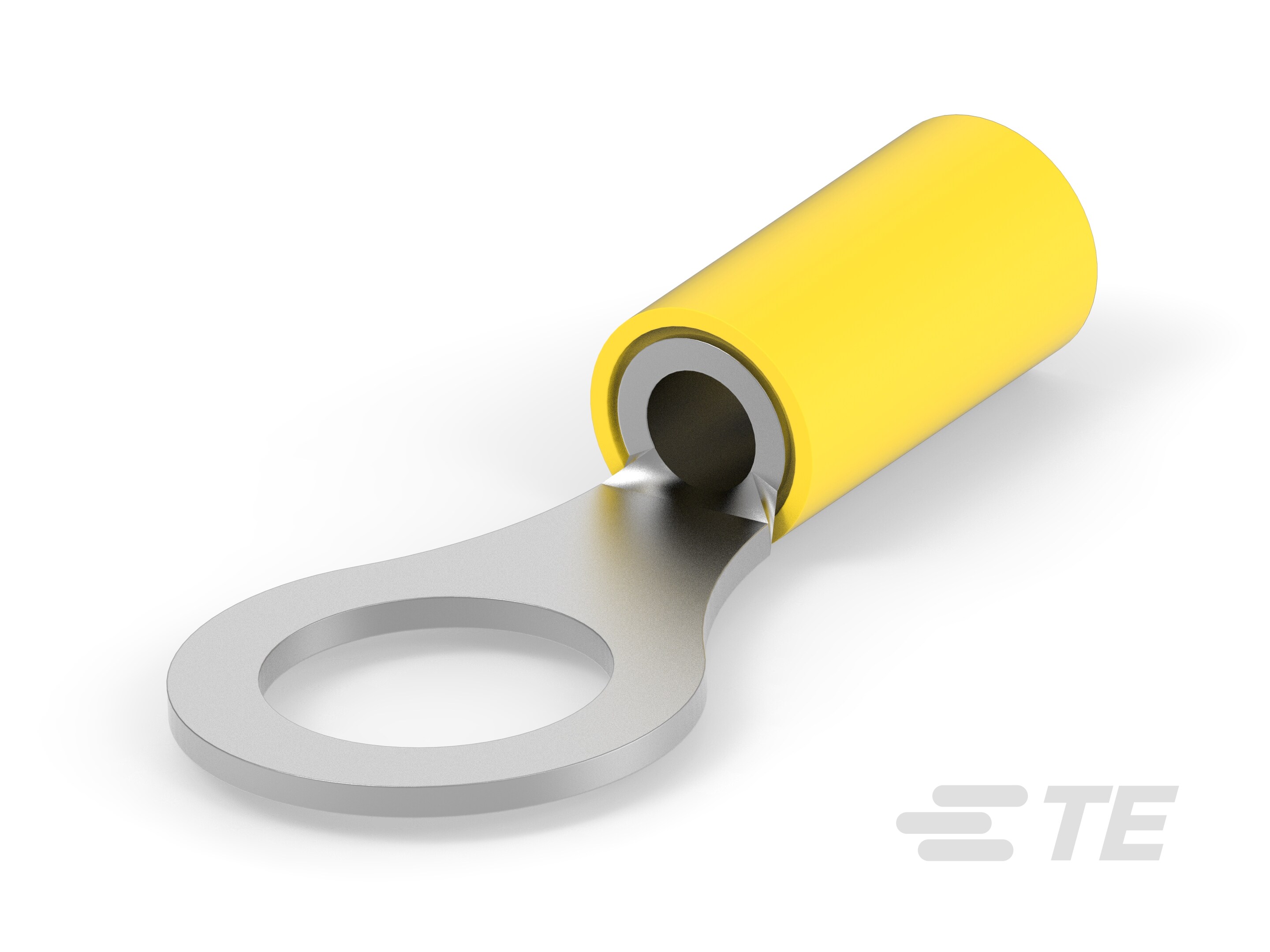

RING TONGUE TERMINAL, M10, 3/8", 10 AWG, 6 MM², PIDG SERIES, YELLOW
| Part | Thickness | Mounting Type | Termination | Color | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Features | Contact Finish | Insulation | Stud/Tab Size | Stud/Tab Size | Width - Outer Edges | Length - Overall | Terminal Type | Contact Material | Material - Insulation | Insulation Diameter (Min) | Insulation Diameter (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.039 in | Free Hanging (In-Line) | Crimp | Yellow | 12 AWG | 10 AWG | Serrated Termination | Tin | Insulated | 0.375 in | 3 Stud 8 Stud | 0.593 in | 1.414 in | Circular | Copper | Nylon PA Polyamide | 0.15 in | 0.25 in |
