3536 Series

Catalog

CLOSED BARREL SPLICE, CRIMP ROHS COMPLIANT: YES

Part	Thickness	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Color	Insulation	Contact Material	Width - Outer Edges	Length - Overall	Terminal Type	Mounting Type	Termination	Stud/Tab Size	Features	Contact Finish	Insulation Diameter (Max)	Insulation Diameter (Min)	Material - Insulation

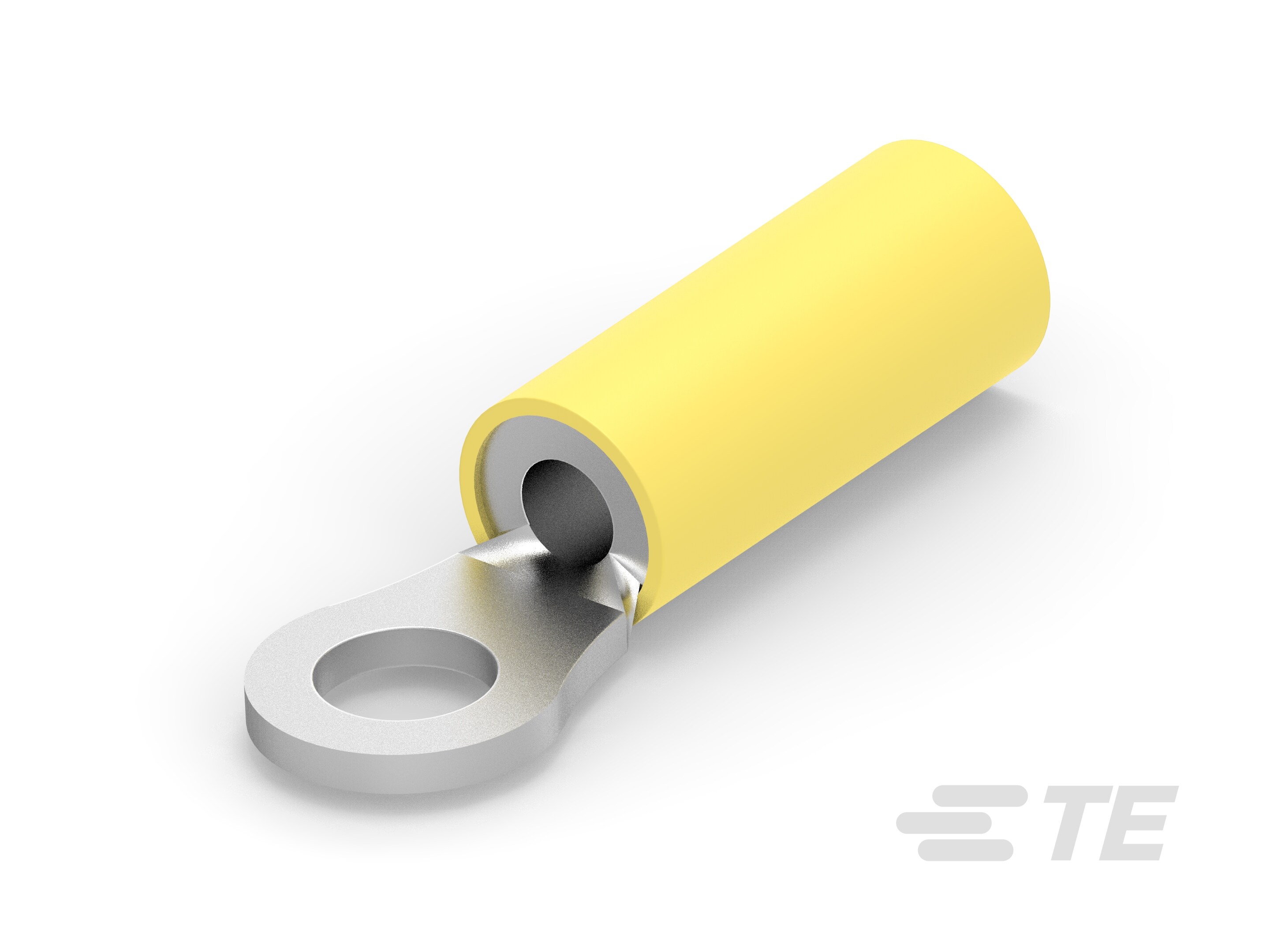

TE Connectivity AMP Connectors 35363	0.048 in	16 AWG	14 AWG	Black Stripe Yellow	Insulated	Copper	0.343 in	1.135 in	Circular	Free Hanging (In-Line)	Crimp	10 Stud	Heavy Duty Serrated Termination	Tin	0.3 in	0.17 in	Poly-Vinyl Chloride PVC
TE Connectivity AMP Connectors 35364	0.039 in	12 AWG	10 AWG	Yellow	Insulated	Copper	0.375 in	1.172 in	Circular	Free Hanging (In-Line)	Crimp	10 Stud	Serrated Termination	Tin	0.3 in	0.17 in	Poly-Vinyl Chloride PVC

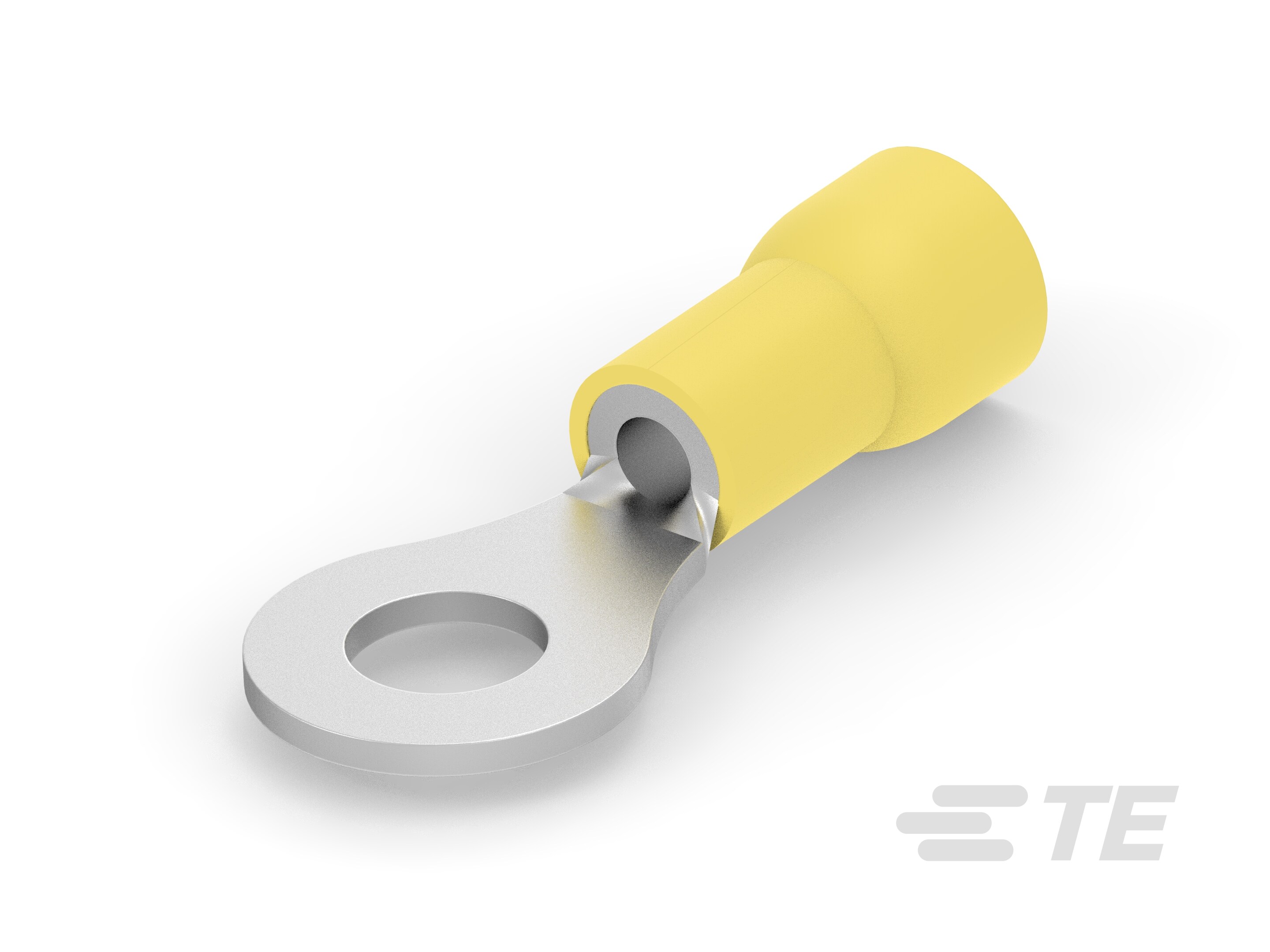

TE Connectivity AMP Connectors 35362	0.048 in	16 AWG	14 AWG	Black Stripe Yellow	Insulated	Copper	0.531 in	1.385 in	Circular	Free Hanging (In-Line)	Crimp	0.25 Stud	Heavy Duty Serrated Termination	Tin	0.3 in	0.17 in	Poly-Vinyl Chloride PVC
