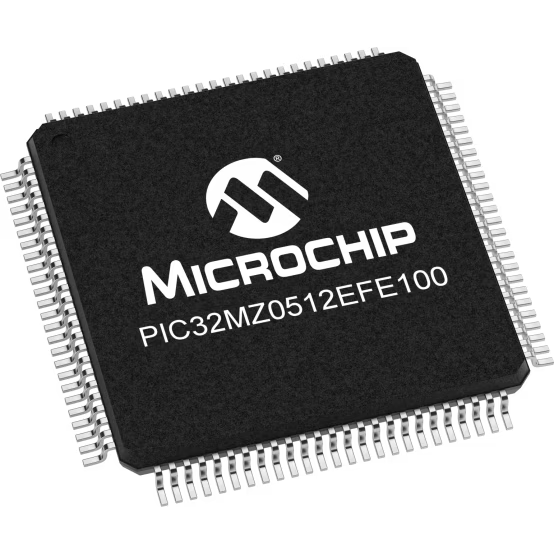

PIC32MZ0512EFE100 Series

Catalog

IC MCU 32BIT 512KB FLSH 100TFBGA

Part	Oscillator Type	Core Size (Bit Width)	Speed	Core Processor	Program Memory Type	Peripherals	Program Memory Width	Program Memory Size	Program Memory Depth	Package / Case	Number of I/O	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Grade	A/D Channels	A/D Resolution (bits)	RAM Size Width	RAM Size Depth	Mounting Type	Connectivity	Operating Temperature (Max)	Operating Temperature (Min)	Package Length	Package Name	Package Width	Qualification	Core Configuration
Microchip Technology PIC32MZ0512EFE100T-E/GJX	Internal	32 Bit	200 MHz	MIPS32® M-Class	FLASH	Brown-out Detect DMA I2S POR PWM Reset WDT	8 bit	512 KB	512 K	100-TFBGA	78	2.1 V	3.6 V	Automotive	40 count	12 bit	8 bit	128 K	Surface Mount	EBI EMI Ethernet I2C PMP SPI SQI UART USART USB OTG	125 °C	-40 °C	7 mm	100-TFBGA	7 mm	AEC-Q100	Single-Core
Microchip Technology PIC32MZ0512EFE100T-I/PT	Internal	32 Bit	200 MHz	MIPS32® M-Class	FLASH	Brown-out Detect DMA I2S POR PWM Reset WDT	8 bit	512 KB	512 K	100-TQFP	78	2.1 V	3.6 V		40 count	12 bit	8 bit	128 K	Surface Mount	EBI EMI Ethernet I2C PMP SPI SQI UART USART USB OTG	85 °C	-40 °C	12 mm	100-TQFP	12 mm		Single-Core
Microchip Technology PIC32MZ0512EFE100-E/PT	Internal	32 Bit	180 MHz	MIPS32® M-Class	FLASH	Brown-out Detect DMA I2S POR PWM Reset WDT	8 bit	512 KB	512 K	100-TQFP	78	2.1 V	3.6 V	Automotive	40 count	12 bit	8 bit	128 K	Surface Mount	EBI EMI Ethernet I2C PMP SPI SQI UART USART USB OTG	125 °C	-40 °C	12 mm	100-TQFP	12 mm	AEC-Q100	Single-Core
Microchip Technology PIC32MZ0512EFE100-I/PT	Internal	32 Bit	200 MHz	MIPS32® M-Class	FLASH	Brown-out Detect DMA I2S POR PWM Reset WDT	8 bit	512 KB	512 K	100-TQFP	78	2.1 V	3.6 V		40 count	12 bit	8 bit	128 K	Surface Mount	EBI EMI Ethernet I2C PMP SPI SQI UART USART USB OTG	85 °C	-40 °C	12 mm	100-TQFP	12 mm
Microchip Technology PIC32MZ0512EFE100-E/GJX	Internal	32 Bit	200 MHz	MIPS32® M-Class	FLASH	Brown-out Detect DMA I2S POR PWM Reset WDT	8 bit	512 KB	512 K	100-TFBGA	78	2.1 V	3.6 V	Automotive	40 count	12 bit	8 bit	128 K	Surface Mount	EBI EMI Ethernet I2C PMP SPI SQI UART USART USB OTG	125 °C	-40 °C	7 mm	100-TFBGA	7 mm	AEC-Q100	Single-Core
Microchip Technology PIC32MZ0512EFE100T-I/PF	Internal	32 Bit	200 MHz	MIPS32® M-Class	FLASH	Brown-out Detect DMA I2S POR PWM Reset WDT	8 bit	512 KB	512 K	100-TQFP	78	2.1 V	3.6 V		40 count	12 bit	8 bit	128 K	Surface Mount	EBI EMI Ethernet I2C PMP SPI SQI UART USART USB OTG	85 °C	-40 °C	14 mm	100-TQFP	14 mm		Single-Core
Microchip Technology PIC32MZ0512EFE100-E/PF	Internal	32 Bit	180 MHz	MIPS32® M-Class	FLASH	Brown-out Detect DMA I2S POR PWM Reset WDT	8 bit	512 KB	512 K	100-TQFP	78	2.1 V	3.6 V	Automotive	40 count	12 bit	8 bit	128 K	Surface Mount	EBI EMI Ethernet I2C PMP SPI SQI UART USART USB OTG	125 °C	-40 °C	14 mm	100-TQFP	14 mm	AEC-Q100	Single-Core
Microchip Technology PIC32MZ0512EFE100-I/GJX	Internal	32 Bit	200 MHz	MIPS32® M-Class	FLASH	Brown-out Detect DMA I2S POR PWM Reset WDT	8 bit	512 KB	512 K	100-TFBGA	78	2.1 V	3.6 V		40 count	12 bit	8 bit	128 K	Surface Mount	EBI EMI Ethernet I2C PMP SPI SQI UART USART USB OTG	85 °C	-40 °C	7 mm	100-TFBGA	7 mm		Single-Core
Microchip Technology PIC32MZ0512EFE100-I/PF	Internal	32 Bit	200 MHz	MIPS32® M-Class	FLASH	Brown-out Detect DMA I2S POR PWM Reset WDT	8 bit	512 KB	512 K	100-TQFP	78	2.1 V	3.6 V		40 count	12 bit	8 bit	128 K	Surface Mount	EBI EMI Ethernet I2C PMP SPI SQI UART USART USB OTG	85 °C	-40 °C	14 mm	100-TQFP	14 mm		Single-Core
Microchip Technology PIC32MZ0512EFE100T-I/GJX	Internal	32 Bit	200 MHz	MIPS32® M-Class	FLASH	Brown-out Detect DMA I2S POR PWM Reset WDT	8 bit	512 KB	512 K	100-TFBGA	78	2.1 V	3.6 V		40 count	12 bit	8 bit	128 K	Surface Mount	EBI EMI Ethernet I2C PMP SPI SQI UART USART USB OTG	85 °C	-40 °C	7 mm	100-TFBGA	7 mm

Catalog

Description

The PIC32MZ EF Family offers a high-performance MCU running up to 252 MHz with up to 2 MB Flash and 512 KB SRAM targeting connectivity applications in Industrial, automotive, IOT , Graphics(HMI) and Motor Control Market Segments. PIC32MZ EF family has best-in-class peripheral set including I2 S/SPI; 8-/16-bit Parallel Master Port (PMP) and External Bus Interface (EBI); 48-channel, 12-bit Analog-to-Digital Converter (ADC); Hi-Speed USB 2.0-compliant Device/ Host/OTG; 10/100 Mbps Ethernet MAC; Serial Quad Interface (SQI) and Crypto Engine for encryption/decryption. These devices are fully supported by the [MPLAB® Harmony integrated software framework](https://www.microchip.com/en-us/development-tools-tools-and-software/embedded-software-center/mplab-harmony-v3) and AECQ-100 Grade1 (125C) qualified.
