382811 Series

Catalog

JUMPER (BUSBAR), SHUNT, SHUNT, CONNECTORS, 2 POSITIONS, 2.54 MM

Part	Contact Finish Thickness	Type	Pitch	Material Flammability Rating	Gender	Height	Contact Finish	Grid Columns	Grid Rows	Number of Positions or Pins (Grid)	Housing Material	Color	Current Rating

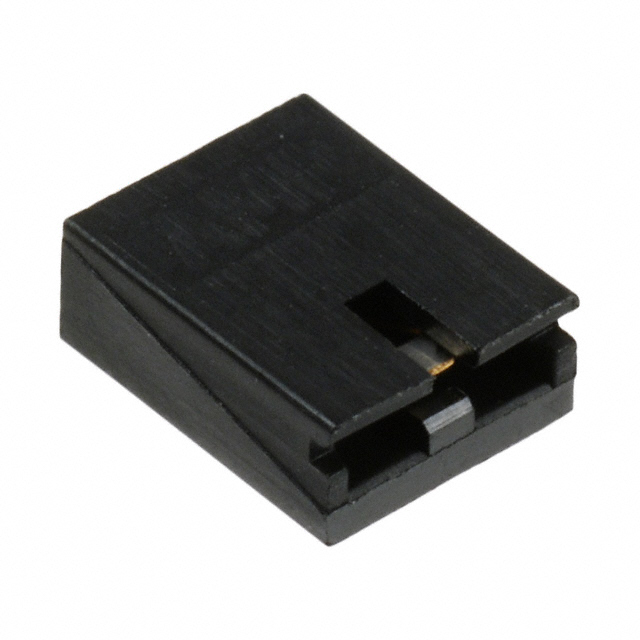

TE Connectivity AMP Connectors 1-382811-6	15 µin	Open Top	0.1 in	UL94 V-0	Female Sockets	0.25 in	Gold	2	1	2	Glass Filled Polyester	Black

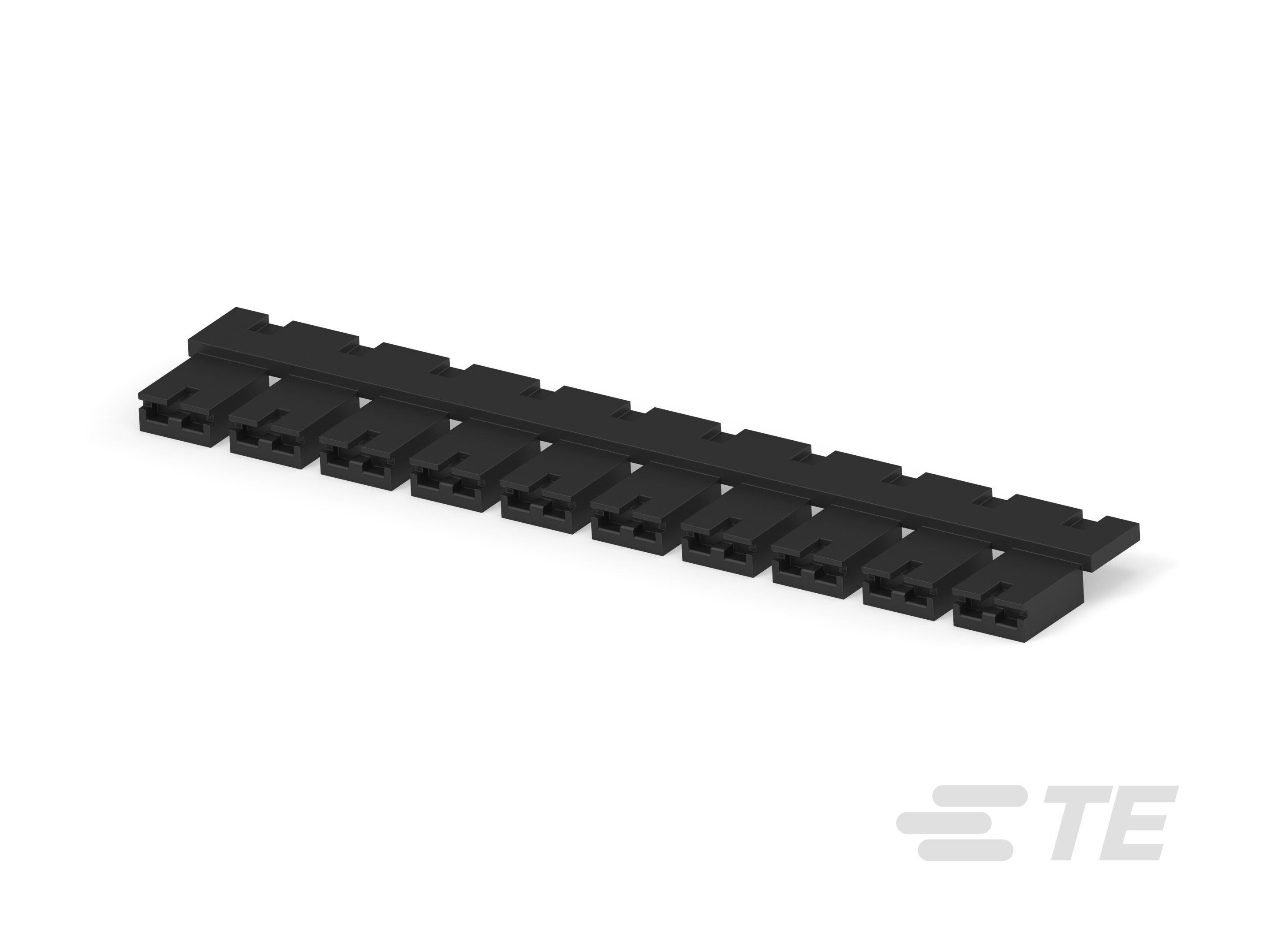

TE Connectivity AMP Connectors 382811-5	100 µin	Open Top	0.1 in	UL94 V-0	Female Sockets	0.25 in	Tin-Lead	2	1	2	Glass Filled Polyester	Black	3 A
TE Connectivity AMP Connectors 382811-8	5.11 µin	Open Top	0.1 in	UL94 V-0	Female Sockets	0.25 in	Gold	2	1	2	Glass Filled Polyester	Black
TE Connectivity AMP Connectors 1-382811-8	5.11 µin	Open Top	0.1 in	UL94 V-0	Female Sockets	0.25 in	Gold	2	1	2	Glass Filled Polyester	Black

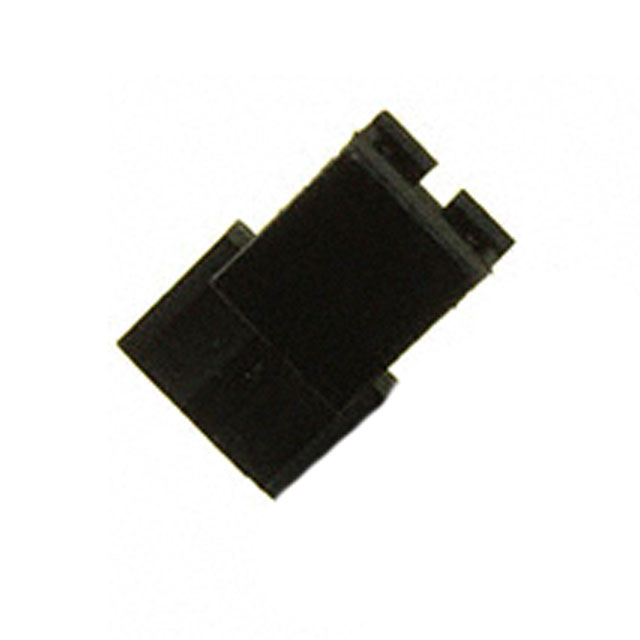

TE Connectivity AMP Connectors 2-382811-1	100 µin	Open Top	0.1 in	UL94 V-0	Female Sockets	0.25 in	Tin	2	1	2	Glass Filled Polyester	Black

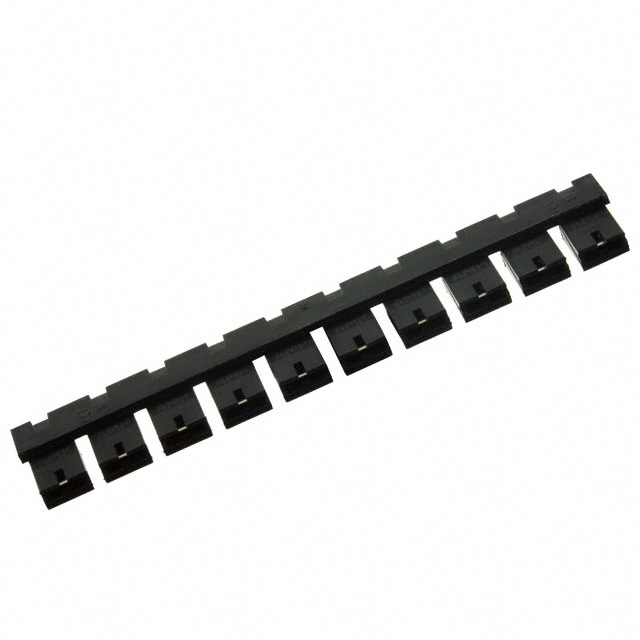

TE Connectivity AMP Connectors 382811-6	15 µin	Open Top	0.1 in	UL94 V-0	Female Sockets	0.25 in	Gold	2	1	2	Glass Filled Polyester	Black
