3347 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

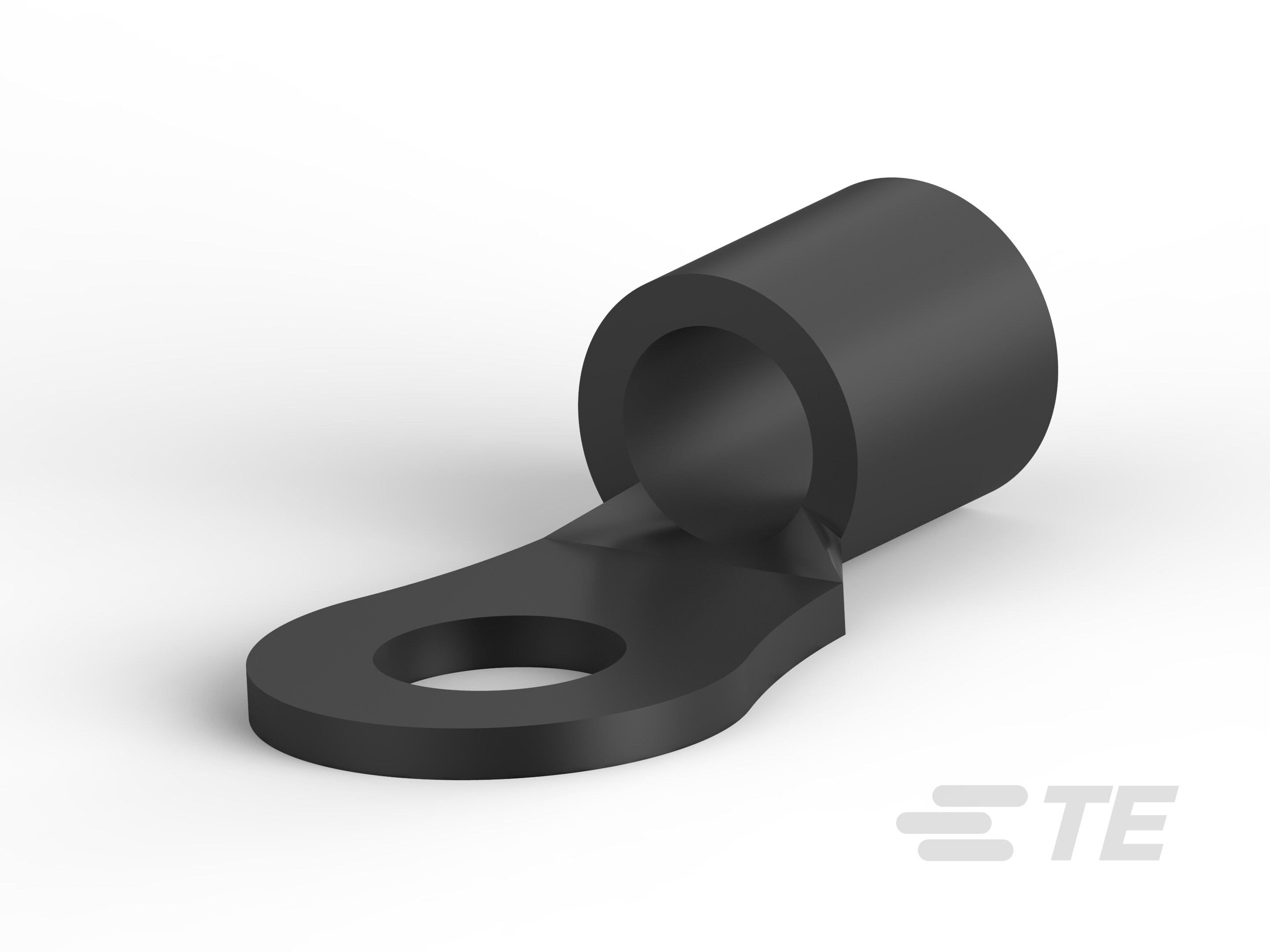

CONN RING CIRC 4AWG #5/16 CRIMP
| Part | Contact Material | Mounting Type | Terminal Type | Insulation | Features | Width - Outer Edges | Contact Finish | Stud/Tab Size | Stud/Tab Size (Type) | Stud/Tab Size | Thickness | Wire Gauge | Termination | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Copper | Free Hanging (In-Line) | Circular | Non-Insulated | Brazed Seam Serrated Termination | 0.656 in | Tin | 0.3125 in | Stud | 16 Stud 5 Stud | 0.07 in | 4 AWG | Crimp | 1.314 in |
