HSAutoLink II Unsealed Header, Right-Angle, 6 Circuits, Key A, Black

Part	Pitch - Mating	Insulation Color	Row Spacing - Mating	Insulation Height	Contact Finish - Mating	Mounting Type	Voltage Rating	Number of Rows	Operating Temperature (Min)	Operating Temperature (Max)	Contact Type	Termination	Connector Type	Fastening Type	Current Rating	Number of Positions	Number of Positions Loaded	Features	Contact Finish - Post	Style	Contact Length - Post

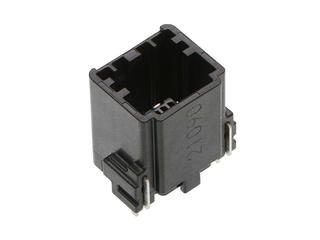

Molex 2257702016	0.05 in	Black	0.079 in	0.713 in	Gold	Through Hole	36 VAC	2	-40 °C	105 °C	Female Socket	Solder	Receptacle	Latch Holder	1.5 A	12	All	Board Guide	Tin	Board Cable/Wire	0.089 in
Molex 2257702015	0.05 in	Black	0.079 in	0.713 in	Gold	Through Hole	36 VAC	2	-40 °C	105 °C	Female Socket	Solder	Receptacle	Latch Holder	1.5 A	6	All	Board Guide	Tin	Board Cable/Wire	0.089 in
Molex 2257702116	0.05 in	Black	0.079 in	0.87 in	Gold	Through Hole	36 VAC	2	-40 °C	105 °C	Female Socket	Solder	Receptacle	Locking Ramp	1.5 A	12	All	Board Guide	Tin	Board Cable/Wire	0.089 in
Molex 2257701016	0.05 in	Black	0.079 in	0.618 in	Gold	Right Angle Through Hole	36 VAC	2	-40 °C	105 °C	Female Socket	Solder	Receptacle	Latch Holder	1.5 A	12	All	Board Guide	Tin	Board Cable/Wire	0.089 in
Molex 2257701115	0.05 in	Black	0.079 in		Gold	Right Angle Through Hole	36 VAC	2	-40 °C	105 °C	Female Socket	Solder	Receptacle	Locking Ramp	1.5 A	6	All	Board Guide	Tin	Board Cable/Wire	0.089 in
Molex 2257701116	0.05 in	Black	0.079 in		Gold	Right Angle Through Hole	36 VAC	2	-40 °C	105 °C	Female Socket	Solder	Receptacle	Locking Ramp	1.5 A	12	All	Board Guide	Tin	Board Cable/Wire	0.089 in
Molex 2257701015	0.05 in	Black	0.079 in	0.547 in	Gold	Right Angle Through Hole	36 VAC	2	-40 °C	105 °C	Female Socket	Solder	Receptacle	Latch Holder	1.5 A	6	All	Board Guide	Tin	Board Cable/Wire	0.089 in
