AML22 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

PUSHBUTTON SWITCH, AML22 SERIES, SPDT, MOMENTARY, SQUARE

Part	Electrical Life (Cycles)	Mechanical Life (Cycles)	Actuator Marking	Panel Cutout Width	Panel Cutout Shape	Panel Cutout Length	Color	Illumination Type	Circuit	Quick Connect Size (0.110")	Termination Style	Current Rating	Voltage Rating - DC	Illumination Voltage (Nominal)	Mounting Type	Actuator Type	Switch Function	Voltage Rating - AC	Type	Features
Honeywell Sensing and Productivity Solutions AML22CBC2AA	25000	25000 Cycles	No Marking	19.05 mm	Square	19.05 mm	Red	LED	SPDT	0.11 in	Quick Connect Solder	2 A 3 A	24 V	5 V	Panel Mount Snap-In	Button (Not Included) Square	On-Mom	125 V	Illuminated Standard
Honeywell Sensing and Productivity Solutions AML22CBF2BA			No Marking	19.05 mm	Square	19.05 mm	Red	LED	SPDT	0.11 in	Quick Connect Solder	100 mA	125 V	24 V	Panel Mount Snap-In	Button (Not Included) Square	On-Mom	125 V	Illuminated Standard

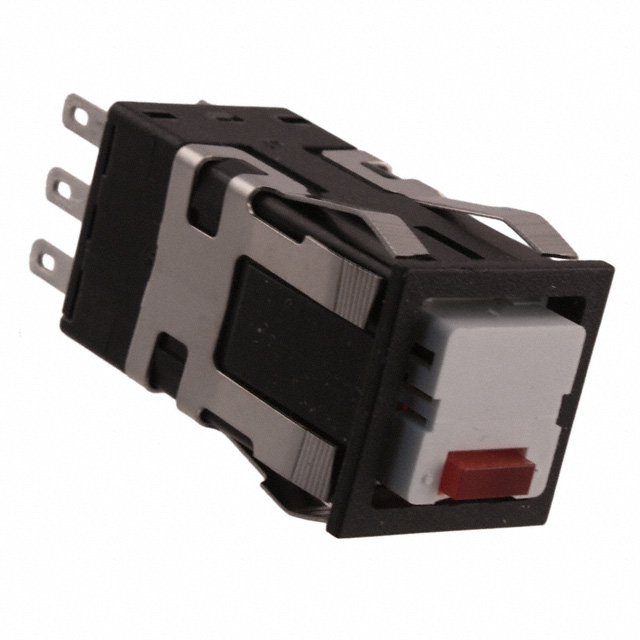

Honeywell Sensing and Productivity Solutions AML22CBF2AC	25000	25000 Cycles	No Marking	19.05 mm	Square	19.05 mm	Red	LED	DPDT	0.11 in	Quick Connect Solder	2 A 3 A	24 V	24 V	Panel Mount Snap-In	Button (Not Included) Square	On-Mom	125 V	Illuminated Standard
Honeywell Sensing and Productivity Solutions AML22CBR8AD	25000	25000 Cycles	No Marking	19.05 mm	Square	19.05 mm	Green	LED	DPDT	0.11 in	Quick Connect Solder	2 A 3 A	24 V	2.4 VDC	Panel Mount Snap-In	Button (Not Included) Square	On-On	125 V	Illuminated Standard	Epoxy Sealed Terminals
Honeywell Sensing and Productivity Solutions AML22CBS2AA	25000	25000 Cycles	No Marking	19.05 mm	Square	19.05 mm	Green	LED	SPDT	0.11 in	Quick Connect Solder	2 A 3 A	24 V	5 V	Panel Mount Snap-In	Button (Not Included) Square	On-Mom	125 V	Illuminated Standard
Honeywell Sensing and Productivity Solutions AML22CBF2EA	25000	25000 Cycles	No Marking	19.05 mm	Square	19.05 mm	Red	LED	SPDT	0.11 in	Quick Connect Solder	2 A 3 A	24 V	24 V	Panel Mount Snap-In	Button (Not Included) Square	On-Mom	125 V	Illuminated Standard
Honeywell Sensing and Productivity Solutions AML22CBM8BA	100000 Cycles	100000 Cycles	No Marking	19.05 mm	Square	19.05 mm	Yellow	LED	SPDT	0.11 in	Quick Connect Solder	100 mA	125 V	24 V	Panel Mount Snap-In	Button (Not Included) Square	On-Mom	125 V	Illuminated Standard	Epoxy Sealed Terminals
Honeywell Sensing and Productivity Solutions AML22CBF2AA	25000	25000 Cycles	No Marking	19.05 mm	Square	19.05 mm	Red	LED	SPDT	0.11 in	Quick Connect Solder	2 A 3 A	24 V	24 V	Panel Mount Snap-In	Button (Not Included) Square	On-Mom	125 V	Illuminated Standard
Honeywell Sensing and Productivity Solutions AML22CBM2EC	25000	25000 Cycles	No Marking	19.05 mm	Square	19.05 mm	Yellow	LED	DPDT	0.11 in	Quick Connect Solder	2 A 3 A	24 V	24 V	Panel Mount Snap-In	Button (Not Included) Square	On-Mom	125 V	Illuminated Standard
Honeywell Sensing and Productivity Solutions AML22CBX8BC	100000 Cycles	100000 Cycles	No Marking	19.05 mm	Square	19.05 mm	Green	LED	DPDT	0.11 in	Quick Connect Solder	100 mA	125 V	24 V	Panel Mount Snap-In	Button (Not Included) Square	On-Mom	125 V	Illuminated Standard	Epoxy Sealed Terminals
