2336568 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

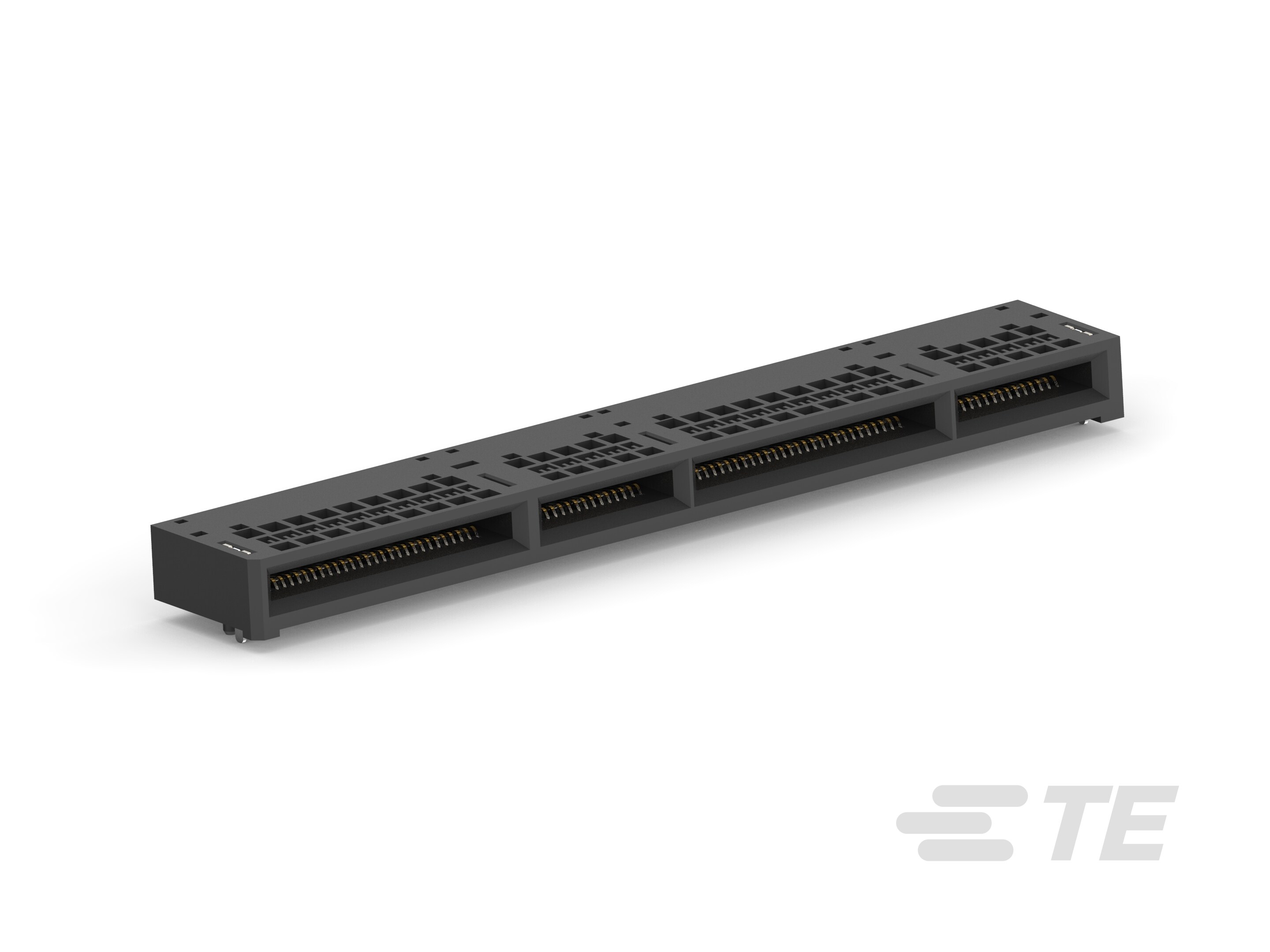

STANDARD CARD EDGE CONNECTORS RECEPT ASSY, RA, 168 POS, SLIVER 2.0
| Part | Number of Positions/Bay/Row | Gender | Read Out | Termination | Contact Finish | Contact Material | Pitch | Contact Finish Thickness | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Features | Number of Positions | Card Type | Color | Card Thickness | Number of Rows | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 14 28 | Female | Dual | Solder | Gold | Copper Alloy | 0.024 in | 15 µin | Right Angle Surface Mount | -55 °C | 85 °C | Board Guide Pick and Place Solder Retention | 168 | Dual Edge Non Specified | Black | 0.062 in | 2 | LCP Liquid Crystal Polymer |
 TE Connectivity AMP Connectors | 14 28 | Female | Dual | Solder | Gold | Copper Alloy | 0.024 in | 30 µin | Right Angle Surface Mount | -55 °C | 85 °C | Board Guide Pick and Place Solder Retention | 168 | Dual Edge Non Specified | Black | 0.062 in | 2 | LCP Liquid Crystal Polymer |
 TE Connectivity AMP Connectors | 14 28 | Female | Dual | Solder | Gold | Copper Alloy | 0.024 in | 30 µin | Right Angle Surface Mount | -55 °C | 85 °C | Board Guide Pick and Place Solder Retention | 168 | Dual Edge Non Specified | Black | 0.062 in | 2 | LCP Liquid Crystal Polymer |
