ARC6-08 Series

Catalog

CBL ASSY ACCELERATE M-M 8PAIR 3"

Part	Wire Gauge	Operating Temperature (Max)	Operating Temperature (Min)	Frequency - Max	Cable Type	Usage	Connector Type	Color	Fastening Type	Shielding	Length	Gender	Number of Positions
Samtec Inc. ARC6-08-03.0-LU-LU-3-1	34 AWG	125 °C	-40 °C	56 Gbps	Flat Twin Axial	Internal	Plug to Plug	Blue	Latch Lock	Shielded	3 "	Male to Male	8
Samtec Inc. ARC6-08-24.0-LU-LU-3-1	34 AWG	125 °C	-40 °C	56 Gbps	Flat Twin Axial	Internal	Plug to Plug	Blue	Latch Lock	Shielded	24 in	Male to Male	8
Samtec Inc. ARC6-08-03.0-LU-LD-2-1	34 AWG	125 °C	-40 °C	56 Gbps	Flat Twin Axial	Internal	Plug to Plug	Blue	Latch Lock	Shielded	3 "	Male to Male	8
Samtec Inc. ARC6-08-12.0-LU-LD-2-1	34 AWG	125 °C	-40 °C	56 Gbps	Flat Twin Axial	Internal	Plug to Plug	Blue	Latch Lock	Shielded	12 in	Male to Male	8
Samtec Inc. ARC6-08-24.0-LU-LD-2-1	34 AWG	125 °C	-40 °C	56 Gbps	Flat Twin Axial	Internal	Plug to Plug	Blue	Latch Lock	Shielded	24 in	Male to Male	8
Samtec Inc. ARC6-08-40.0-LU-LD-2-1	34 AWG	125 °C	-40 °C	56 Gbps	Flat Twin Axial	Internal	Plug to Plug	Blue	Latch Lock	Shielded	3.33 ft	Male to Male	8 16
Samtec Inc. ARC6-08-18.0-LU-LU-3-1	34 AWG	125 °C	-40 °C	56 Gbps	Flat Twin Axial	Internal	Plug to Plug	Blue	Latch Lock	Shielded	1.5 ft	Male to Male	8
Samtec Inc. ARC6-08-06.0-LU-LD-2-1	34 AWG	125 °C	-40 °C	56 Gbps	Flat Twin Axial	Internal	Plug to Plug	Blue	Latch Lock	Shielded	0.5 ft	Male to Male	8
Samtec Inc. ARC6-08-06.0-LU-LU-3-1	34 AWG	125 °C	-40 °C	56 Gbps	Flat Twin Axial	Internal	Plug to Plug	Blue	Latch Lock	Shielded	0.5 ft	Male to Male	8

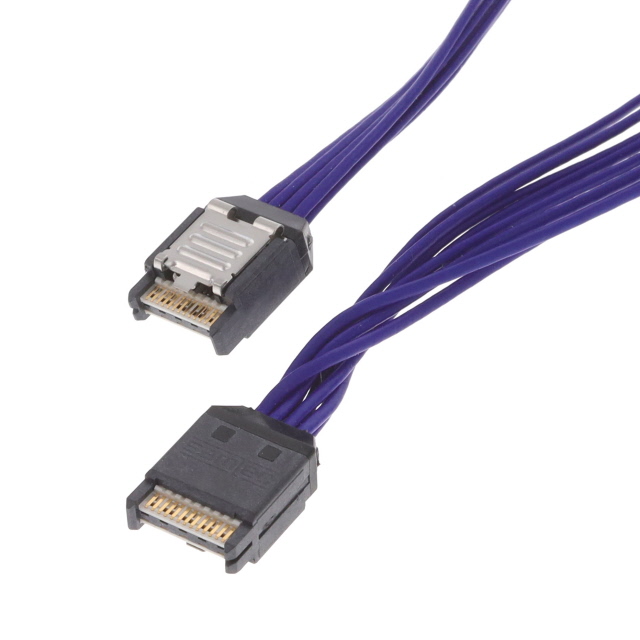

Samtec Inc. ARC6-08-40.0-LU-LU-3-1	34 AWG	125 °C	-40 °C	56 Gbps	Flat Twin Axial	Internal	Plug to Plug	Blue	Latch Lock	Shielded	3.33 ft	Male to Male	8
