MCIMX355 Series

Catalog

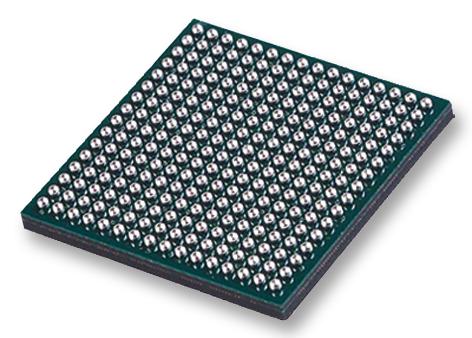

I.MX35 32-BIT MPU, ARM1136JF-S CORE, 532MHZ, MAPBGA 400/ REEL ROHS COMPLIANT: YES

Part	Package / Case	Speed	Bus Width	Number of Cores	Additional Interfaces	Core Processor	Ethernet Ports	Ethernet Speed Options	Package Length	Package Name	Package Width	Co-Processors/DSP	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Graphics Acceleration	RAM Controllers	USB 2.0 PHY Count	USB	Security Features	Voltage - I/O (Option 5)	Voltage - I/O (Option 6)	Voltage - I/O (Option 3)	Voltage - I/O (Option 1)	Voltage - I/O (Option 2)	Voltage - I/O (Option 4)	Display & Interface Controllers
NXP USA Inc. MCIMX355AJQ5CR2	400-LFBGA	532 MHz	32 Bit	1 Core	1-Wire ASRC ATA CAN I2C I2S MMC/SDIO SAI SDHC SPI SSI UART	ARM1136JF-S	1	100Mbps 10Mbps	17 mm	400-LFBGA	17 mm	IPU Multimedia VFP	85 °C	-40 °C	Surface Mount	No	DDR2 LPDDR	2 count	USB 2.0 + PHY	Secure Fusebox Secure JTAG	3 V	3.3 V	2.5 V	1.8 V	2 V	2.7 V	Keypad KPP LCD
NXP USA Inc. MCIMX355AJQ5C	400-LFBGA	532 MHz	32 Bit	1 Core	1-Wire ASRC ATA CAN I2C I2S MMC/SDIO SAI SDHC SPI SSI UART	ARM1136JF-S	1	100Mbps 10Mbps	17 mm	400-LFBGA	17 mm	IPU Multimedia VFP	85 °C	-40 °C	Surface Mount	No	DDR2 LPDDR	2 count	USB 2.0 + PHY	Secure Fusebox Secure JTAG	3 V	3.3 V	2.5 V	1.8 V	2 V	2.7 V	Keypad KPP LCD
NXP USA Inc. MCIMX355AVM4BR2	400-LFBGA	400 MHz	32 Bit	1 Core	1-Wire ASRC ATA CAN I2C I2S MMC/SDIO SAI SDHC SPI SSI UART	ARM1136JF-S	1	100Mbps 10Mbps	17 mm	400-LFBGA	17 mm	IPU Multimedia VFP	85 °C	-40 °C	Surface Mount	No	DDR2 LPDDR	2 count	USB 2.0 + PHY	Secure Fusebox Secure JTAG	3 V	3.3 V	2.5 V	1.8 V	2 V	2.7 V	Keypad KPP LCD
NXP USA Inc. MCIMX355AVM5BR2	400-LFBGA	532 MHz	32 Bit	1 Core	1-Wire ASRC ATA CAN I2C I2S MMC/SDIO SAI SDHC SPI SSI UART	ARM1136JF-S	1	100Mbps 10Mbps	17 mm	400-LFBGA	17 mm	IPU Multimedia VFP	85 °C	-40 °C	Surface Mount	No	DDR2 LPDDR	2 count	USB 2.0 + PHY	Secure Fusebox Secure JTAG	3 V	3.3 V	2.5 V	1.8 V	2 V	2.7 V	Keypad KPP LCD
NXP USA Inc. MCIMX355AVM4BR2	400-LFBGA	400 MHz	32 Bit	1 Core	1-Wire ASRC ATA CAN I2C I2S MMC/SDIO SAI SDHC SPI SSI UART	ARM1136JF-S	1	100Mbps 10Mbps	17 mm	400-LFBGA	17 mm	IPU Multimedia VFP	85 °C	-40 °C	Surface Mount	No	DDR2 LPDDR	2 count	USB 2.0 + PHY	Secure Fusebox Secure JTAG	3 V	3.3 V	2.5 V	1.8 V	2 V	2.7 V	Keypad KPP LCD
