052266 Series
Manufacturer: Molex
Beta
⌘K

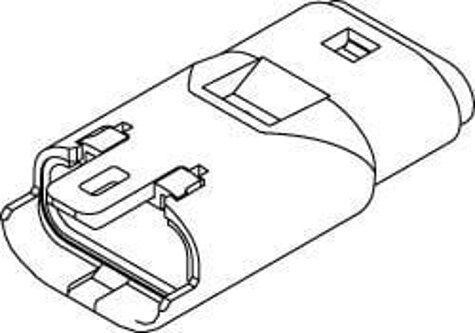

HEADERS & WIRE HOUSINGS MIZU-P25 PLG 03P WTW
| Part | Pitch | Contact Type | Connector Type | Number of Positions | Number of Rows | Insulation Material | Mounting Type | Fastening Type | Contact Termination | Color | Features | Operating Temperature (Min) | Operating Temperature (Max) | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.098 in | Male Pin | Plug | 3 | 1 | Glass Filled Polyester | Free Hanging (In-Line) | Detent Lock | Crimp | Black | IP67) Waterproof (Mated | -40 °C | 105 °C | Contacts Not Included |
 Molex | 0.098 in | Male Pin | Plug | 2 | 1 | Glass Filled Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | Detent Lock | Crimp | Black | IP67) Waterproof (Mated | -40 °C | 105 °C | Contacts Not Included |
 Molex | 0.098 in | Male Pin | Plug | 4 | 1 | Glass Filled Polyester | Free Hanging (In-Line) | Detent Lock | Crimp | Brown | IP67) Waterproof (Mated | -40 °C | 105 °C | Contacts Not Included |
 Molex | 0.098 in | Male Pin | Plug | 2 | 1 | Glass Filled Polyester | Free Hanging (In-Line) | Detent Lock | Crimp | Black | IP67) Waterproof (Mated | -40 °C | 105 °C | Contacts Not Included |
Molex | 0.098 in | Male Pin | Plug | 2 | 1 | Free Hanging (In-Line) | Detent Lock | Crimp | Black | IP67) Waterproof (Mated | Contacts Not Included |
