092321 Series

Manufacturer: Molex

Catalog

26CCT QF50 RIBBON CABLE ASSY

Part	Number of Rows	Color	Cable Termination	Connector Type	Number of Positions	Length	Pitch - Connector	Pitch - Cable	Contact Finish Thickness	Contact Finish	Shielding

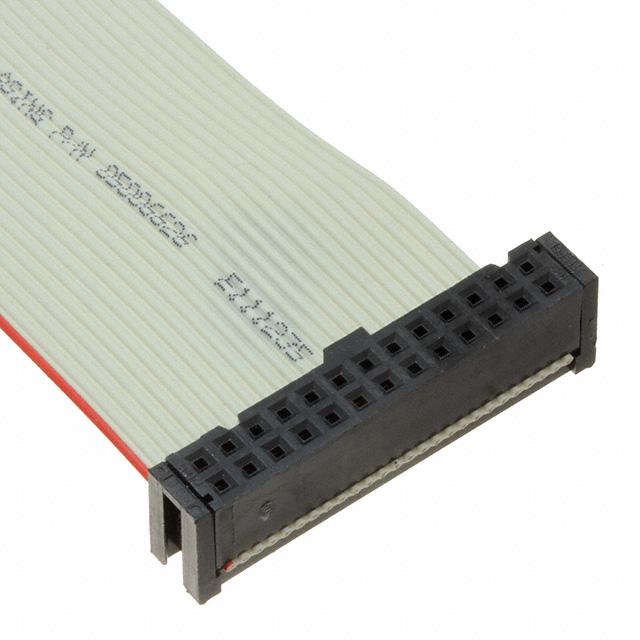

Molex 0923212640	2	Gray Ribbon	IDC	Socket to Socket	26	1.31 ft	0.1 in	0.05 in	15 µin	Gold	Unshielded
Molex 0923212010	2	Gray Ribbon	IDC	Socket to Socket	20	0.328 ft	0.1 in	0.05 in	15 µin	Gold	Unshielded
Molex 0923212610	2	Gray Ribbon	IDC	Socket to Socket	26	0.328 ft	0.1 in	0.05 in	15 µin	Gold	Unshielded
Molex 0923211030	2	Gray Ribbon	IDC	Socket to Socket	10	0.984 ft	0.1 in	0.05 in	15 µin	Gold	Unshielded
Molex 0923211630	2	Gray Ribbon	IDC	Socket to Socket	16	0.984 ft	0.1 in	0.05 in	15 µin	Gold	Unshielded
Molex 0923211440	2	Gray Ribbon	IDC	Socket to Socket	14	1.31 ft	0.1 in	0.05 in	15 µin	Gold	Unshielded
Molex 0923211020	2	Gray Ribbon	IDC	Socket to Socket	10	0.656 ft	0.1 in	0.05 in	15 µin	Gold	Unshielded
Molex 0923212040	2	Gray Ribbon	IDC	Socket to Socket	20	1.31 ft	0.1 in	0.05 in	15 µin	Gold	Unshielded
Molex 0923211620	2	Gray Ribbon	IDC	Socket to Socket	16	0.656 ft	0.1 in	0.05 in	15 µin	Gold	Unshielded
Molex 0923212020	2	Gray Ribbon	IDC	Socket to Socket	20	0.656 ft	0.1 in	0.05 in	15 µin	Gold	Unshielded
