EVQ-PL Series

Catalog

TACTILE SWITCH, EVQPL SERIES, TOP ACTUATED, SURFACE MOUNT, ROUND BUTTON, 163 GF, 20MA AT 15VDC

Part	Switch Travel	Mechanical Life (Cycles)	Actuator Height off PCB (Vertical)	Termination Style	Mounting Type	Operating Force	Illumination	Contact Rating (Current)	Switch Function	Operating Temperature (Max)	Operating Temperature (Min)	Actuator Orientation	Circuit	Outline Length	Outline Width	Actuator Type	Features
Panasonic Electronic Components EVQ-PLFA08	0.25 mm	500000 Cycles	0.8 mm	J Lead	Surface Mount	163 gf	Non-Illuminated	0.02 A	Off-Mom	70 °C	-20 °C	Top Actuated	SPST-NO	4.9 mm	4.9 mm	Without
Panasonic Electronic Components EVQ-PLMA15	0.25 mm	200000 Cycles	1.5 mm	J Lead	Surface Mount	265 gf	Non-Illuminated	0.02 A	Off-Mom	70 °C	-20 °C	Top Actuated	SPST-NO	4.9 mm	4.9 mm	Standard	Push Plate
Panasonic Electronic Components EVQ-PLHA15	0.25 mm	500000 Cycles	1.5 mm	J Lead	Surface Mount	163 gf	Non-Illuminated	0.02 A	Off-Mom	70 °C	-20 °C	Top Actuated	SPST-NO	4.9 mm	4.9 mm	Standard	Push Plate
Panasonic Electronic Components EVQ-PLDA15	0.25 mm	500000 Cycles	1.5 mm	J Lead	Surface Mount	102 gf	Non-Illuminated	0.02 A	Off-Mom	70 °C	-20 °C	Top Actuated	SPST-NO	4.9 mm	4.9 mm	Standard	Push Plate
Panasonic Electronic Components EVQ-PLKA08	0.25 mm	200000 Cycles	0.8 mm	J Lead	Surface Mount	265 gf	Non-Illuminated	0.02 A	Off-Mom	70 °C	-20 °C	Top Actuated	SPST-NO	4.9 mm	4.9 mm	Without

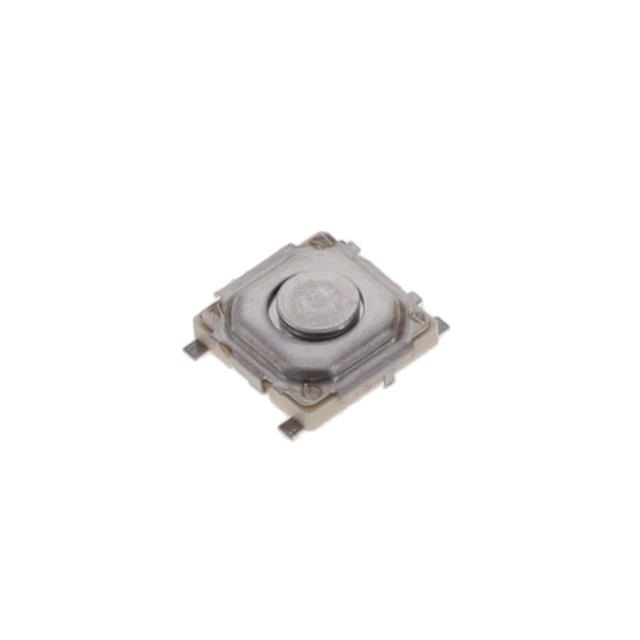

Panasonic Electronic Components EVQ-PLWA15	0.25 mm		1.5 mm	J Lead	Surface Mount	163 gf	Non-Illuminated	0.02 A	Off-Mom	70 °C	-20 °C	Top Actuated	SPST-NO	4.9 mm	4.9 mm	Standard	Push Plate
