68602 Series

Catalog

CONN HEADER VERT 34POS 2.54MM

...

Part	Material Flammability Rating	Number of Positions Loaded	Contact Finish - Mating	Number of Positions	Termination	Number of Rows	Contact Finish Thickness - Mating	Fastening Type	Contact Type	Contact Length - Mating	Current Rating	Contact Length - Post	Overall Contact Length	Insulation Height	Insulation Color	Contact Shape	Shrouding	Connector Type	Row Spacing - Mating	Style	Contact Material	Pitch - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Contact Finish - Post
Amphenol ICC (FCI) 68602-134HLF	UL94 V-0	All	Gold GXT™	34	Solder	2	30 µin	Push-Pull	Male Pin	0.23 in	3 A	0.15 in	0.48 in	0.1 in	Black	Square	Unshrouded	Header	0.1 in	Board	Phosphor Bronze	0.1 in	-65 °C	130 °C	Through Hole
Amphenol ICC (FCI) 68602-372	UL94 V-0	All	Gold GXT™	72	Solder	2	50 µin	Push-Pull	Male Pin	0.23 in	3 A	0.15 in	0.48 in	0.1 in	Black	Square	Unshrouded	Header	0.1 in	Board	Phosphor Bronze	0.1 in	-65 °C	130 °C	Through Hole
Amphenol ICC (FCI) 68602-226HLF	UL94 V-0	All	Gold GXT™	26	Solder	2	15 µin	Push-Pull	Male Pin	0.23 in	3 A	0.15 in	0.48 in	0.1 in	Black	Square	Unshrouded	Header	0.1 in	Board	Phosphor Bronze	0.1 in	-65 °C	130 °C	Through Hole
Amphenol ICC (FCI) 68602-172H	UL94 V-0	All	Gold GXT™	72	Solder	2	30 µin	Push-Pull	Male Pin	0.23 in		0.15 in	0.48 in	0.1 in	Black	Square	Unshrouded	Header	0.1 in	Board	Phosphor Bronze	0.1 in			Through Hole
Amphenol ICC (FCI) 68602-152HLF	UL94 V-0	All	Gold GXT™	52	Solder	2	30 µin	Push-Pull	Male Pin	0.23 in	3 A	0.15 in	0.48 in	0.1 in	Black	Square	Unshrouded	Header	0.1 in	Board	Phosphor Bronze	0.1 in	-65 °C	130 °C	Through Hole
Amphenol ICC (FCI) 68602-156HLF	UL94 V-0	All	Gold GXT™	56	Solder	2	30 µin	Push-Pull	Male Pin	0.23 in	3 A	0.15 in	0.48 in	0.1 in	Black	Square	Unshrouded	Header	0.1 in	Board	Phosphor Bronze	0.1 in	-65 °C	130 °C	Through Hole

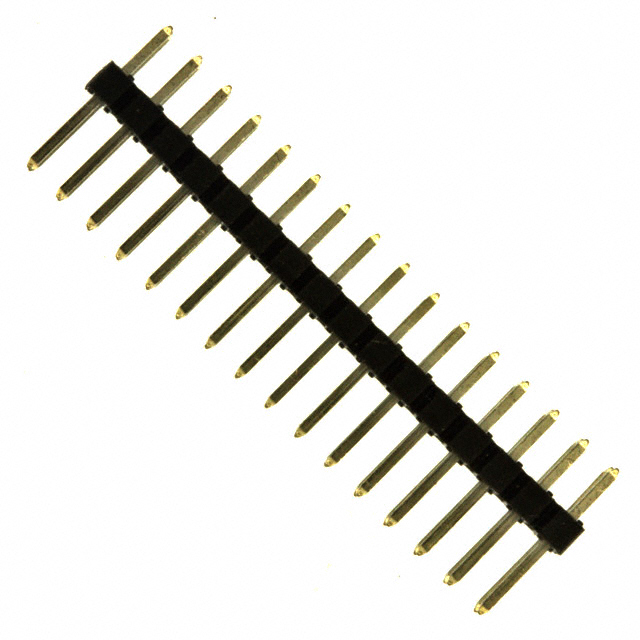

Amphenol ICC (FCI) 68602-432HLF	UL94 V-0	All	Tin	32	Solder	2	100 µin	Push-Pull	Male Pin	0.23 in	3 A	0.15 in	0.48 in	0.1 in	Black	Square	Unshrouded	Header	0.1 in	Board	Phosphor Bronze	0.1 in	-65 °C	130 °C	Through Hole	Tin
Amphenol ICC (FCI) 68602-446HLF	UL94 V-0	All	Tin	46	Solder	2	100 µin	Push-Pull	Male Pin	0.23 in	3 A	0.15 in	0.48 in	0.1 in	Black	Square	Unshrouded	Header	0.1 in	Board	Phosphor Bronze	0.1 in	-65 °C	130 °C	Through Hole	Tin
Amphenol ICC (FCI) 68602-168HLF	UL94 V-0	All	Gold GXT™	68	Solder	2	30 µin	Push-Pull	Male Pin	0.23 in	3 A	0.15 in	0.48 in	0.1 in	Black	Square	Unshrouded	Header	0.1 in	Board	Phosphor Bronze	0.1 in	-65 °C	130 °C	Through Hole
Amphenol ICC (FCI) 68602-220HLF	UL94 V-0	All	Gold GXT™	20	Solder	2	15 µin	Push-Pull	Male Pin	0.23 in	3 A	0.15 in	0.48 in	0.1 in	Black	Square	Unshrouded	Header	0.1 in	Board	Phosphor Bronze	0.1 in	-65 °C	130 °C	Through Hole
