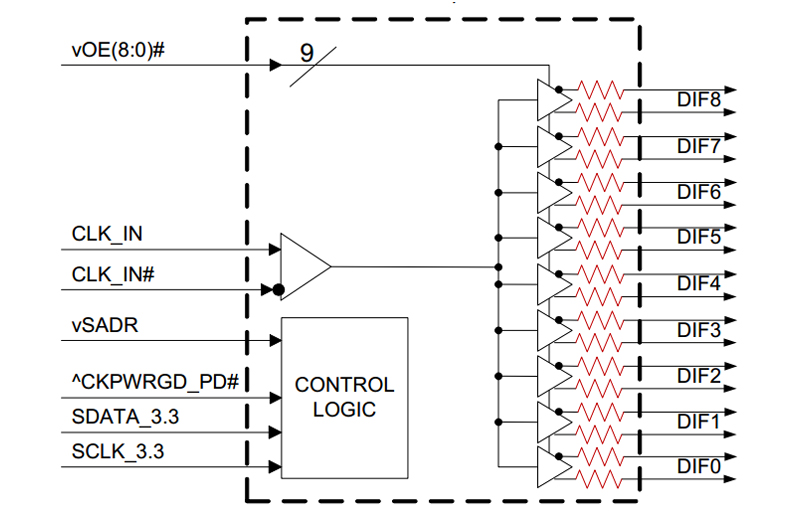

9-output 1.5V PCIe Fanout Clock Buffer
9-output 1.5V PCIe Fanout Clock Buffer
| Part | PLL | Input | Output | Package / Case | Output Ratio | Input Ratio | Main Purpose | Frequency - Max | Number of Circuits | Differential Input | Differential Output | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Package Width | Package Name | Package Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Renesas Electronics Corporation | No | HCSL | LP-HCSL | 48-VFQFN Exposed Pad | 9 | 1 | PCI Express (PCIe) | 167 MHz | 1 | Yes | Yes | Surface Mount | -40 °C | 85 °C | 1.575 V | 1.425 V | 6 mm | 48-VFQFPN | 6 mm |
Renesas Electronics Corporation | No | HCSL | LP-HCSL | 48-VFQFN Exposed Pad | 9 | 1 | PCI Express (PCIe) | 167 MHz | 1 | Yes | Yes | Surface Mount | 0 °C | 70 °C | 1.575 V | 1.425 V | 6 mm | 48-VFQFPN | 6 mm |
 Renesas Electronics Corporation | No | HCSL LVDS | LP-HCSL | 48-VFQFN Exposed Pad | 9 | 1 | PCI Express (PCIe) | 167 MHz | 1 | Yes | Yes | Surface Mount | 0 °C | 70 °C | 1.575 V | 1.425 V | 6 mm | 48-VFQFPN | 6 mm |
Renesas Electronics Corporation | No | HCSL LVDS | LP-HCSL | 48-VFQFN Exposed Pad | 9 | 1 | PCI Express (PCIe) | 167 MHz | 1 | Yes | Yes | Surface Mount | -40 °C | 85 °C | 1.575 V | 1.425 V | 6 mm | 48-VFQFPN | 6 mm |
