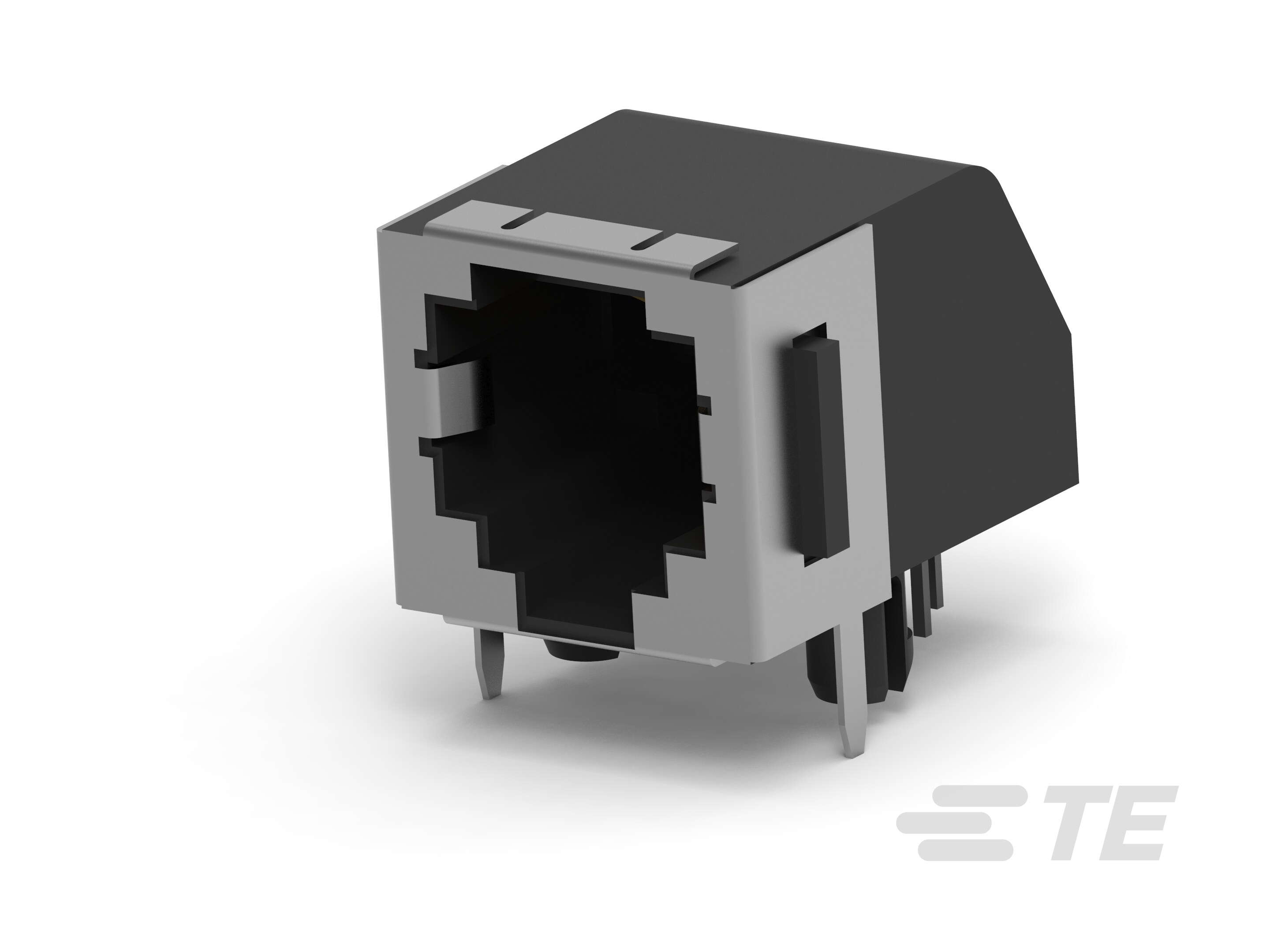

5555154 Series
Modular Connectors / Ethernet Connectors 6P6C SHIELDED
Manufacturer: TE Connectivity AMP Connectors
Catalog
Modular Connectors / Ethernet Connectors 6P6C SHIELDED
Beta
⌘K
Modular Connectors / Ethernet Connectors 6P6C SHIELDED
Modular Connectors / Ethernet Connectors 6P6C SHIELDED
Modular Connectors / Ethernet Connectors 6P6C SHIELDED
| Part | Features | Shielding | Connector Type | Number of Rows | Contact Material | Termination | LED Color | Ratings | Number of Ports | Orientation Angle | Orientation Direction | Tab Direction | Contact Finish | Number of Contacts | Number of Positions | Mounting Type | Contact Finish Thickness | Operating Temperature (Min) | Operating Temperature (Max) | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Board Lock Panel Stops | Shielded | Jack RJ11 RJ12 RJ14 RJ25 | 1 | Phosphor Bronze | Solder | Does Not Contain LED | Cat3 | 1 | 90 ° | Right | Down | Gold | 6 | 6 | Through Hole | 50 µin | -40 °C | 85 °C | PBT Polybutylene Terephthalate Polyester |
 TE Connectivity AMP Connectors | Board Lock Panel Stops | Shielded | Jack RJ11 RJ12 RJ14 RJ25 | 1 | Phosphor Bronze | Solder | Does Not Contain LED | Cat3 | 1 | 90 ° | Right | Down | Gold | 6 | 6 | Through Hole | 50 µin | -40 °C | 85 °C | PBT Polybutylene Terephthalate Polyester |
