2384214 Series

Catalog

PCIE G5,164P,ASSY,1.5TAB+C-POS,30",MYLAR

Part	Contact Finish Thickness	Features	Gender	Termination	Number of Positions	Read Out	Number of Rows	Contact Material	Mounting Type	Card Thickness	Card Type	Contact Finish	Pitch	Number of Bay	Color	Operating Temperature (Min)	Operating Temperature (Max)	Contact Type	Termination Rows	Material - Insulation
TE Connectivity AMP Connectors 5-2384214-4	30 µin	Board Guide Locking Ramp Solder Retention	Female	Solder	11 164	Dual	2	Copper Alloy	Surface Mount	0.062 in	PCI Express™	Gold	0.039 in	71	Black	-40 °C	85 °C	Cantilever	2 rows	Plastic

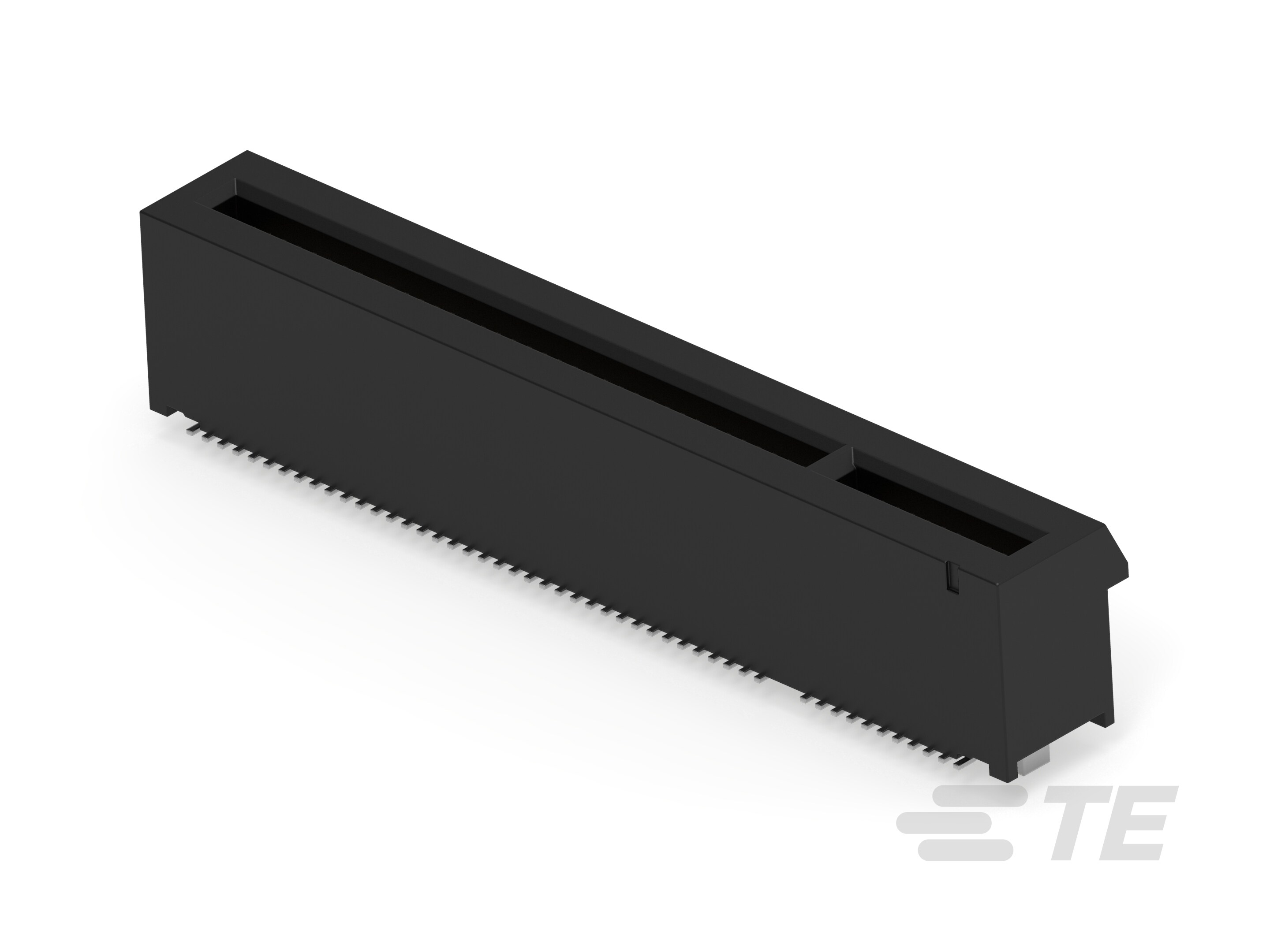

TE Connectivity AMP Connectors 4-2384214-3	15 µin	Board Guide Locking Ramp	Female	Solder	11 98	Dual	2	Copper Alloy	Surface Mount	0.062 in	PCI Express™	Gold	0.039 in	38	Black	-40 °C	85 °C	Cantilever	2 rows	Thermoplastic

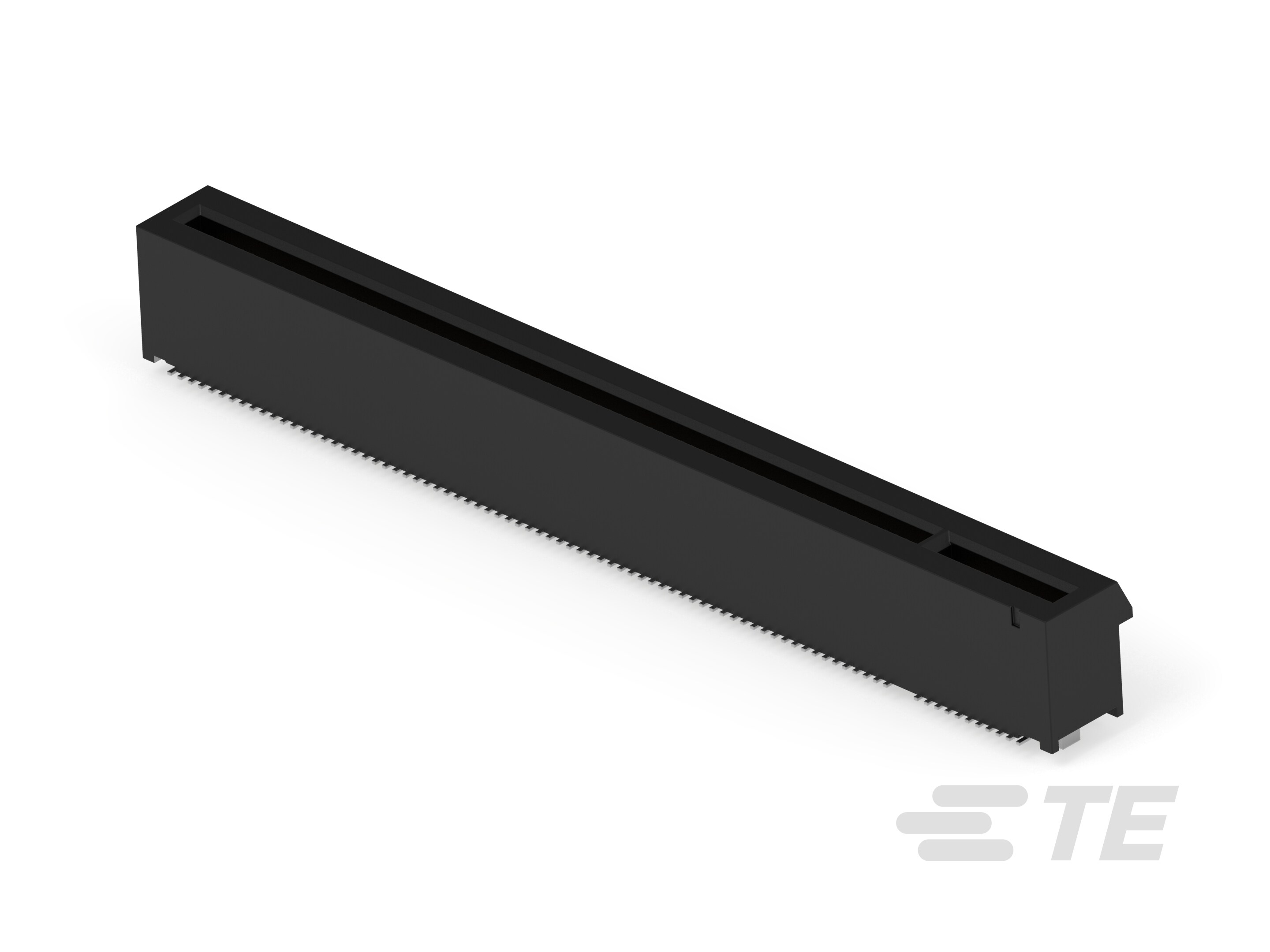

TE Connectivity AMP Connectors 4-2384214-4	15 µin	Board Guide Locking Ramp	Female	Solder	11 164	Dual	2	Copper Alloy	Surface Mount	0.062 in	PCI Express™	Gold	0.039 in	71	Black	-40 °C	85 °C	Cantilever	2 rows	Thermoplastic
TE Connectivity AMP Connectors 5-2384214-7	30 µin	Board Guide Locking Ramp Solder Retention	Female	Solder	11 98	Dual	2	Copper Alloy	Surface Mount	0.062 in	PCI Express™	Gold	0.039 in	38	Black	-40 °C	85 °C	Cantilever	2 rows	Plastic
TE Connectivity AMP Connectors 1-2384214-3	15 µin	Board Guide Locking Ramp Solder Retention	Female	Solder	11 98	Dual	2	Copper Alloy	Surface Mount	0.062 in	PCI Express™	Gold	0.039 in	38	Black	-40 °C	85 °C	Cantilever	2 rows	Plastic
