60774 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

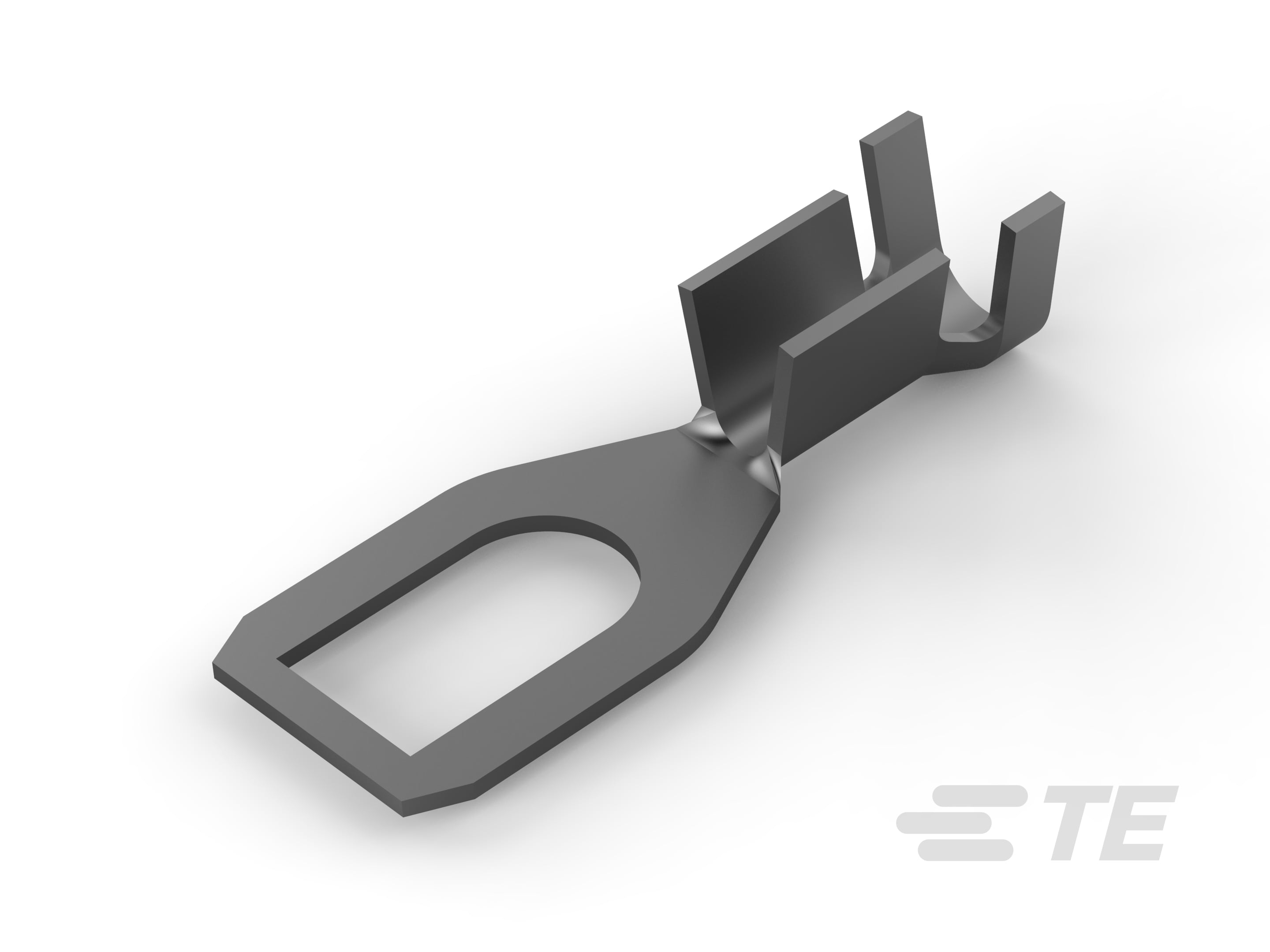

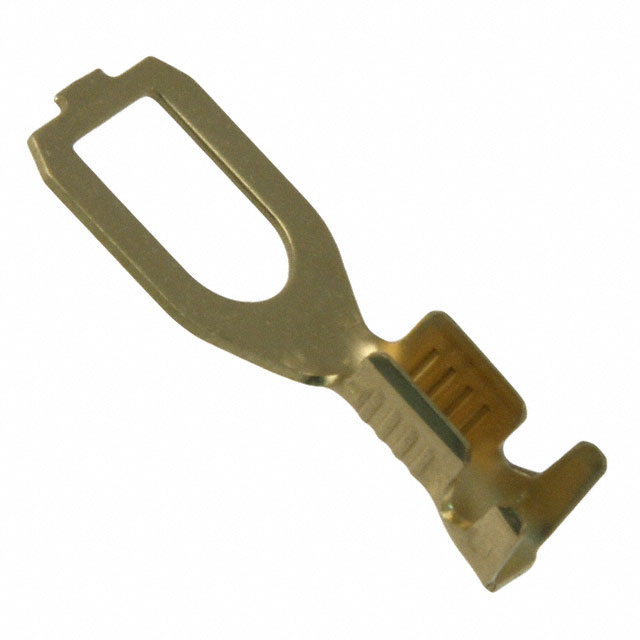

FORK / SPADE TONGUE TERMINAL, 18AWG TO 14AWG, 2.08 MM², M4, #8, UNINSULATED
| Part | Tongue Inside Opening | Length - Ring Center to Termination | Insulation Diameter (Min) | Insulation Diameter (Max) | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Length - Overall | Insulation | Width - Outer Edges | Contact Material | Terminal Type | Mounting Type | Termination | Stud/Tab Size | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.171 in | 0.235 in | 0.1 in | 0.14 in | 18 AWG | 14 AWG | 0.798 in | Non-Insulated | 0.295 in | Brass | Standard | Free Hanging (In-Line) | Crimp | 8 Stud | |
 TE Connectivity AMP Connectors | 0.171 in | 0.235 in | 0.1 in | 0.14 in | 18 AWG | 14 AWG | 0.798 in | Non-Insulated | 0.295 in | Brass | Standard | Free Hanging (In-Line) | Crimp | 8 Stud | Tin |
