046436 Series

Manufacturer: Molex

Catalog

RA REC TEN60 G-2P-15S-G

Part	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Current Rating	Voltage Rating (AC)	Voltage Rating (DC)	Contact Finish	Power Contacts (Typical)	Signal Contacts (Typical)	Connector Style	Termination	Number of Positions	Color	Number of Positions Loaded	Mounting Type	Features	Contact Finish Thickness	Connector Type	Pitch	Number of Rows	Number of Columns	Voltage Rating
Molex 0464369312	UL94 V-0	-40 °C	105 °C	60 A	600 VAC	250 VDC	Gold	2	15	EXTreme Ten60Power	Press-Fit	17	Black	All	Right Angle Through Hole	Board Guide Mating Guide	30 µin	Blade Sockets Female Sockets Receptacle
Molex 0464369302	UL94 V-0	-40 °C	105 °C	60 A	600 VAC	250 VDC	Gold	2		EXTreme Ten60Power	Press-Fit	2	Black	All	Right Angle Through Hole	Board Guide Mating Guide	30 µin	Female Blade Sockets Receptacle	0.217 in	1
Molex 0464363128	UL94 V-0	-40 °C	105 °C	4.5 A			Gold			EXTreme Ten60Power	Press-Fit	15	Black	All	Right Angle Through Hole	Board Guide Mating Guide	30 µin	Female Sockets Receptacle	0.079 in	5	3	120 V
Molex 0464363003	UL94 V-0	-40 °C	105 °C				Gold	4	24	EXTreme Ten60Power	Solder	28	Black	All	Right Angle Through Hole	Board Guide Mating Guide	30 µin	Blade Sockets Female Sockets Receptacle
Molex 0464361785
Molex 0464363127	UL94 V-0	-40 °C	105 °C	4.5 A			Gold			EXTreme Ten60Power	Press-Fit	10	Black	All	Right Angle Through Hole	Board Guide Mating Guide	30 µin	Female Sockets Receptacle	0.079 in	5	2	120 V
Molex 0464369318	UL94 V-0	-40 °C	105 °C	60 A	600 VAC	250 VDC	Gold	4	30	EXTreme Ten60Power	Press-Fit	33	Black	All	Right Angle Through Hole	Board Guide Mating Guide	30 µin	Blade Sockets Female Sockets Receptacle
Molex 0464363005	UL94 V-0	-40 °C	105 °C				Gold	6	24	EXTreme Ten60Power	Solder	30	Black	All	Right Angle Through Hole	Board Guide Mating Guide	30 µin	Blade Sockets Female Sockets Receptacle
Molex 0464361241	UL94 V-0	-40 °C	105 °C				Gold	4	15	EXTreme Ten60Power	Solder	19	Black	All	Right Angle Through Hole	Mating Guide	30 µin	Blade Sockets Female Sockets Receptacle

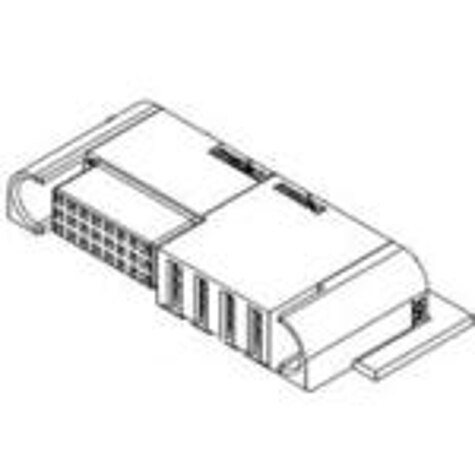

Molex 0464363001	UL94 V-0	-40 °C	105 °C				Gold	10	25	EXTreme Ten60Power	Solder	35	Black	All	Right Angle Through Hole	Board Guide Mating Guide	30 µin	Blade Sockets Female Sockets Receptacle
