2232357 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PTL 3X5 PLUG HSG GLW WIRE KEY C GRN

Part	Note	Row Spacing	Pitch	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Contact Termination	Number of Rows	Connector Type	Contact Type	Fastening Type	Color	Insulation Material
TE Connectivity AMP Connectors 7-2232357-7	Contacts Not Included	0.319 in	0.236 in	15	-55 °C	105 °C	Free Hanging (In-Line)	Crimp	3	Plug	Female Socket	Latch Lock	Green	Glass Filled Nylon Polyamide (PA)
TE Connectivity AMP Connectors 6-2232357-7	Contacts Not Included	0.319 in	0.236 in	15	-55 °C	105 °C	Free Hanging (In-Line)	Crimp	3	Plug	Female Socket	Latch Lock	Brown	Glass Filled Nylon Polyamide (PA)

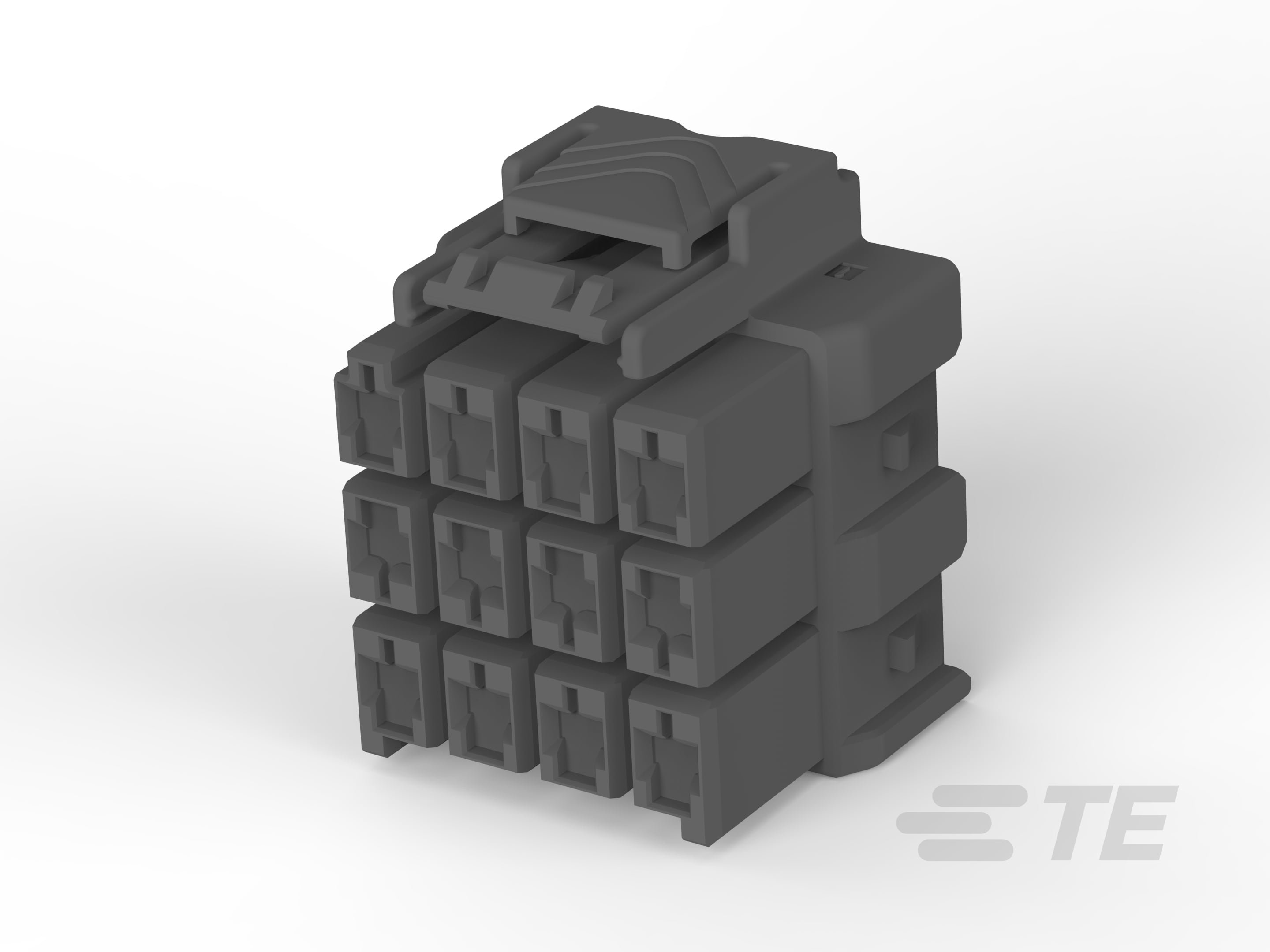

TE Connectivity AMP Connectors 5-2232357-4	Contacts Not Included	0.319 in	0.236 in	12	-55 °C	105 °C	Free Hanging (In-Line)	Crimp	3	Plug	Female Blade Socket	Latch Holder	Gray	Nylon 6 Polyamide (PA6)
TE Connectivity AMP Connectors 7-2232357-4	Contacts Not Included	0.319 in	0.236 in	12	-55 °C	105 °C	Free Hanging (In-Line)	Crimp	3	Plug	Female Socket	Latch Lock	Green	Glass Filled Nylon Polyamide (PA)
TE Connectivity AMP Connectors 6-2232357-4	Contacts Not Included	0.319 in	0.236 in	12	-55 °C	105 °C	Free Hanging (In-Line)	Crimp	3	Plug	Female Socket	Latch Lock	Brown	Glass Filled Nylon Polyamide (PA)
TE Connectivity AMP Connectors 7-2232357-3	Contacts Not Included	0.319 in	0.236 in	9	-55 °C	105 °C	Free Hanging (In-Line)	Crimp	3	Plug	Female Socket	Latch Lock	Green	Glass Filled Nylon Polyamide (PA)
TE Connectivity AMP Connectors 8-2232357-7	Contacts Not Included	0.319 in	0.236 in	15	-55 °C	105 °C	Free Hanging (In-Line)	Crimp	3	Plug	Female Socket	Latch Lock	Orange	Glass Filled Nylon Polyamide (PA)
