1969730 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN SHROUDED HEADER (4 SIDES) HDR 9POWER POS 2.5MM SOLDER ST TOP ENTRY THRU-HOLE

Part	Voltage Rating	Current Rating	Contact Length - Mating	Pitch - Mating	Fastening Type	Contact Finish - Mating	Contact Length - Post	Number of Rows	Contact Finish - Post	Shrouding	Contact Shape	Termination	Mounting Type	Features	Connector Type	Style	Insulation Height	Contact Material	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Insulation Material	Number of Positions Loaded	Insulation Color	Material Flammability Rating	Applications	Contact Finish Thickness - Mating
TE Connectivity AMP Connectors 1969730-9	250 V	4.2 A	0.141 in	0.098 in	Friction Lock	Tin	0.134 in	1	Tin	Shrouded - 4 Wall	Circular	Solder	Through Hole	Board Guide	Header	Board Cable/Wire	0.346 in	Brass	Male Pin	-55 °C	105 °C	9	Thermoplastic	All	Natural	UL94 V-0	General Purpose Industrial Lighting
TE Connectivity AMP Connectors 1969730-8	250 V	4.2 A	0.141 in	0.098 in	Friction Lock	Tin	0.134 in	1	Tin	Shrouded - 4 Wall	Circular	Solder	Through Hole	Board Guide	Header	Board Cable/Wire	0.346 in	Brass	Male Pin	-55 °C	105 °C	8	Thermoplastic	All	Natural	UL94 V-0	General Purpose Industrial Lighting
TE Connectivity AMP Connectors 1-1969730-4	250 V	4.2 A	0.141 in	0.098 in	Friction Lock	Tin	0.134 in	1	Tin	Shrouded - 4 Wall	Circular	Solder	Through Hole	Board Guide	Header	Board Cable/Wire	0.346 in	Brass	Male Pin	-55 °C	105 °C	14	Thermoplastic	All	Natural	UL94 V-0	General Purpose Industrial Lighting
TE Connectivity AMP Connectors 1-1969730-8	250 V	4.2 A	0.142 in	0.098 in	Friction Lock	Tin	0.134 in	1	Tin	Shrouded - 4 Wall	Circular	Kinked Pin Solder	Through Hole	Board Guide	Header	Board Cable/Wire	0.346 in	Brass	Male Pin	-55 °C	105 °C	18	Thermoplastic	All	Natural	UL94 V-0	General Purpose Industrial Lighting	80 µin
TE Connectivity AMP Connectors 1969730-4	250 V	4.2 A	0.141 in	0.098 in	Friction Lock	Tin	0.134 in	1	Tin	Shrouded - 4 Wall	Circular	Solder	Through Hole	Board Guide	Header	Board Cable/Wire	0.346 in	Brass	Male Pin	-55 °C	105 °C	4	Thermoplastic	All	Natural	UL94 V-0	General Purpose Industrial Lighting
TE Connectivity AMP Connectors 1969730-3	250 V	4.2 A	0.141 in	0.098 in	Friction Lock	Tin	0.134 in	1	Tin	Shrouded - 4 Wall	Circular	Solder	Through Hole	Board Guide	Header	Board Cable/Wire	0.346 in	Brass	Male Pin	-55 °C	105 °C	3	Thermoplastic	All	Natural	UL94 V-0	General Purpose Industrial Lighting
TE Connectivity AMP Connectors 1-1969730-5	250 V	4.2 A		0.098 in	Friction Lock	Tin	0.134 in	1	Tin	Shrouded - 4 Wall	Circular	Kinked Pin Solder	Through Hole	Board Guide	Header	Board Cable/Wire	0.346 in	Brass	Male Pin	-55 °C	105 °C	15	Thermoplastic	All	Natural	UL94 V-0
TE Connectivity AMP Connectors 1969730-6	250 V	4.2 A	0.141 in	0.098 in	Friction Lock	Tin	0.134 in	1	Tin	Shrouded - 4 Wall	Circular	Solder	Through Hole	Board Guide	Header	Board Cable/Wire	0.346 in	Brass	Male Pin	-55 °C	105 °C	6	Thermoplastic	All	Natural	UL94 V-0	General Purpose Industrial Lighting
TE Connectivity AMP Connectors 1-1969730-7	250 V	4.2 A	0.142 in	0.098 in	Friction Lock	Tin	0.134 in	1	Tin	Shrouded - 4 Wall	Circular	Kinked Pin Solder	Through Hole	Board Guide	Header	Board Cable/Wire	0.346 in	Brass	Male Pin	-55 °C	105 °C	17	Thermoplastic	All	Natural	UL94 V-0	General Purpose Industrial Lighting	80 µin

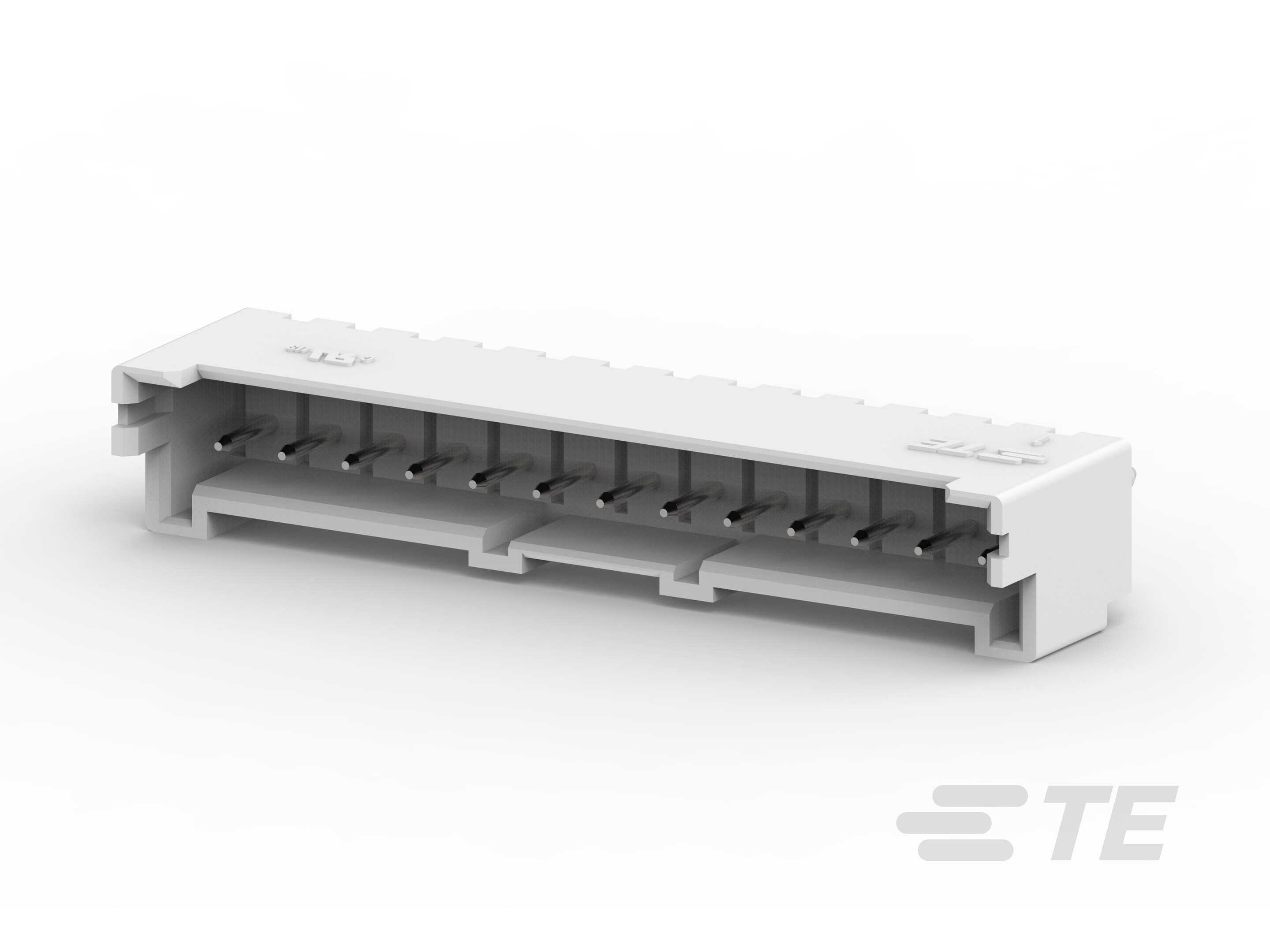

TE Connectivity AMP Connectors 1-1969730-3	250 V	4.2 A	0.142 in	0.098 in	Friction Lock	Tin	0.134 in	1	Tin	Shrouded - 4 Wall	Circular	Kinked Pin Solder	Through Hole	Board Guide	Header	Board Cable/Wire	0.346 in	Brass	Male Pin	-55 °C	105 °C	13	Thermoplastic	All	Natural	UL94 V-0	General Purpose Industrial Lighting	80 µin
