284539 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

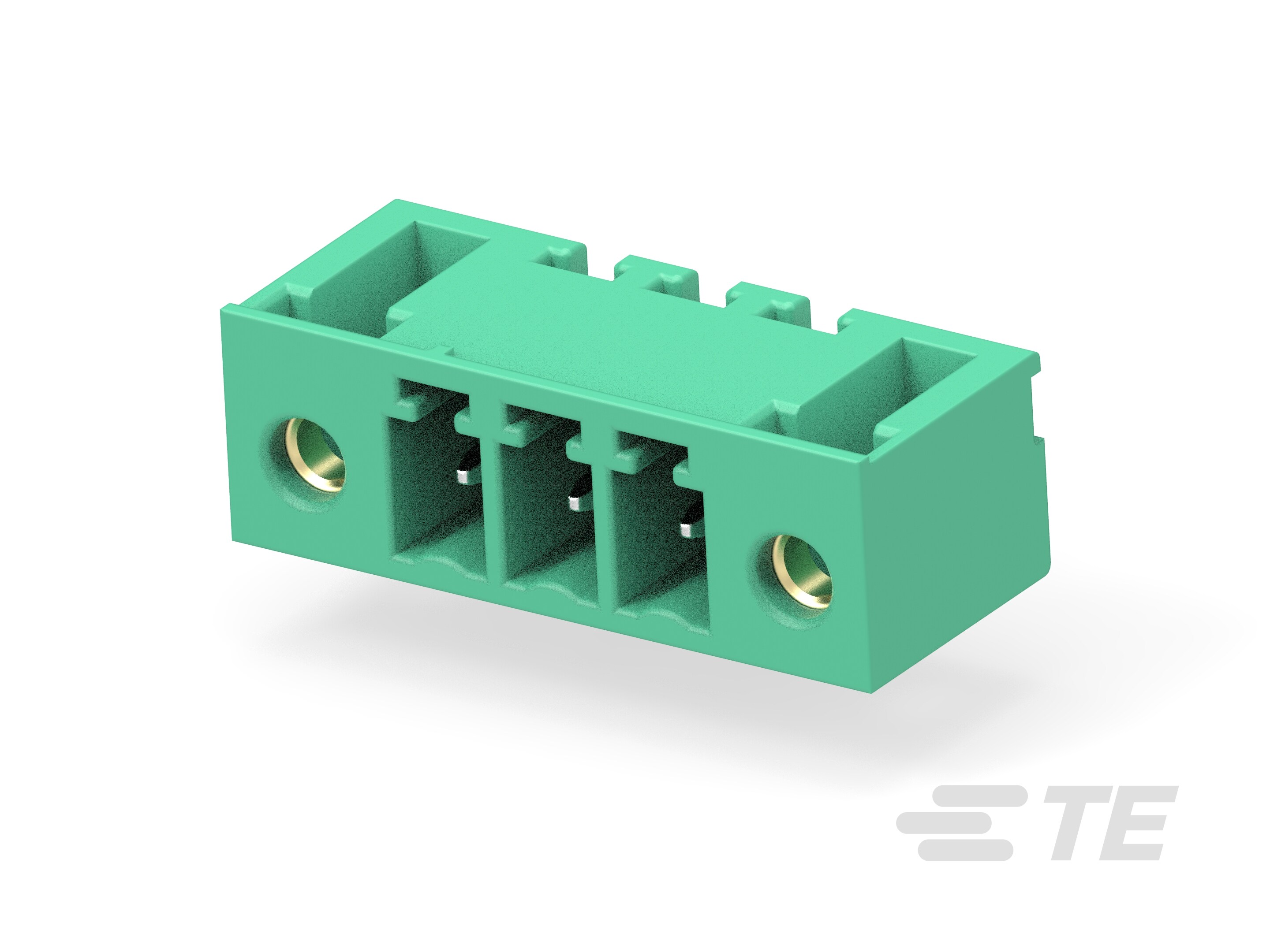

TERM BLOCK HDR 7POS 90DEG 3.5MM
| Part | Mounting Type | Color | Contact Mating Finish | Header Orientation Angle | Header Orientation | Positions Per Level | Type | Voltage - UL | Features | Current - UL | Number of Positions | Operating Temperature (Min) | Operating Temperature (Max) | Termination Style | Pitch | Number of Levels | Contact Material | Material Flammability Rating | Contact Tail Length | Insulation Height | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Through Hole | Green | Tin | 90 ° | Right Angle | 7 | Header Male Pins Shrouded (4 Side) | 300 V | Mating Flange | 11 A | 7 | -40 °C | 110 °C | Solder | 0.138 in | 1 | Phosphor Bronze | UL94 V-0 | 0.134 in | 0.285 in | Nylon 6/6 PA66 Polyamide |
TE Connectivity AMP Connectors | Through Hole | Green | Tin | 90 ° | Right Angle | 11 | Header Male Pins Shrouded (4 Side) | 300 V | Mating Flange | 11 A | 11 | -40 °C | 110 °C | Solder | 0.138 in | 1 | Phosphor Bronze | UL94 V-0 | 0.134 in | 0.285 in | Nylon 6/6 PA66 Polyamide |
 TE Connectivity AMP Connectors | Through Hole | Green | Tin | 90 ° | Right Angle | 19 | Header Male Pins Shrouded (4 Side) | 300 V | Mating Flange | 11 A | 19 | -40 °C | 110 °C | Solder | 0.138 in | 1 | Phosphor Bronze | UL94 V-0 | 0.134 in | 0.285 in | Nylon 6/6 PA66 Polyamide |
 TE Connectivity AMP Connectors | Through Hole | Green | Tin | 90 ° | Right Angle | 8 | Header Male Pins Shrouded (4 Side) | 300 V | Mating Flange | 11 A | 8 | -40 °C | 110 °C | Solder | 0.138 in | 1 | Phosphor Bronze | UL94 V-0 | 0.134 in | 0.285 in | Nylon 6/6 PA66 Polyamide |
 TE Connectivity AMP Connectors | Through Hole | Green | Tin | 90 ° | Right Angle | 3 | Header Male Pins Shrouded (4 Side) | 300 V | Mating Flange | 11 A | 3 | -40 °C | 110 °C | Solder | 0.138 in | 1 | Phosphor Bronze | UL94 V-0 | 0.134 in | 0.285 in | Nylon 6/6 PA66 Polyamide |
TE Connectivity AMP Connectors | Through Hole | Green | Tin | 90 ° | Right Angle | 18 | Header Male Pins Shrouded (4 Side) | 300 V | Mating Flange | 11 A | 18 | -40 °C | 110 °C | Solder | 0.138 in | 1 | Phosphor Bronze | UL94 V-0 | 0.134 in | 0.285 in | Nylon 6/6 PA66 Polyamide |
TE Connectivity AMP Connectors | Through Hole | Green | Tin | 90 ° | Right Angle | 21 | Header Male Pins Shrouded (4 Side) | 300 V | Mating Flange | 11 A | 21 | -40 °C | 110 °C | Solder | 0.138 in | 1 | Phosphor Bronze | UL94 V-0 | 0.134 in | 0.285 in | Nylon 6/6 PA66 Polyamide |
 TE Connectivity AMP Connectors | Through Hole | Green | Tin | 90 ° | Right Angle | 2 | Header Male Pins Shrouded (4 Side) | 300 V | Mating Flange | 11 A | 2 | -40 °C | 110 °C | Solder | 0.138 in | 1 | Phosphor Bronze | UL94 V-0 | 0.134 in | 0.285 in | Nylon 6/6 PA66 Polyamide |
 TE Connectivity AMP Connectors | Through Hole | Green | Tin | 90 ° | Right Angle | 10 | Header Male Pins Shrouded (4 Side) | 300 V | Mating Flange | 11 A | 10 | -40 °C | 110 °C | Solder | 0.138 in | 1 | Phosphor Bronze | UL94 V-0 | 0.134 in | 0.285 in | Nylon 6/6 PA66 Polyamide |
TE Connectivity AMP Connectors | Through Hole | Green | Tin | 90 ° | Right Angle | 14 | Header Male Pins Shrouded (4 Side) | 300 V | Mating Flange | 11 A | 14 | -40 °C | 110 °C | Solder | 0.138 in | 1 | Phosphor Bronze | UL94 V-0 | 0.134 in | 0.285 in | Nylon 6/6 PA66 Polyamide |
