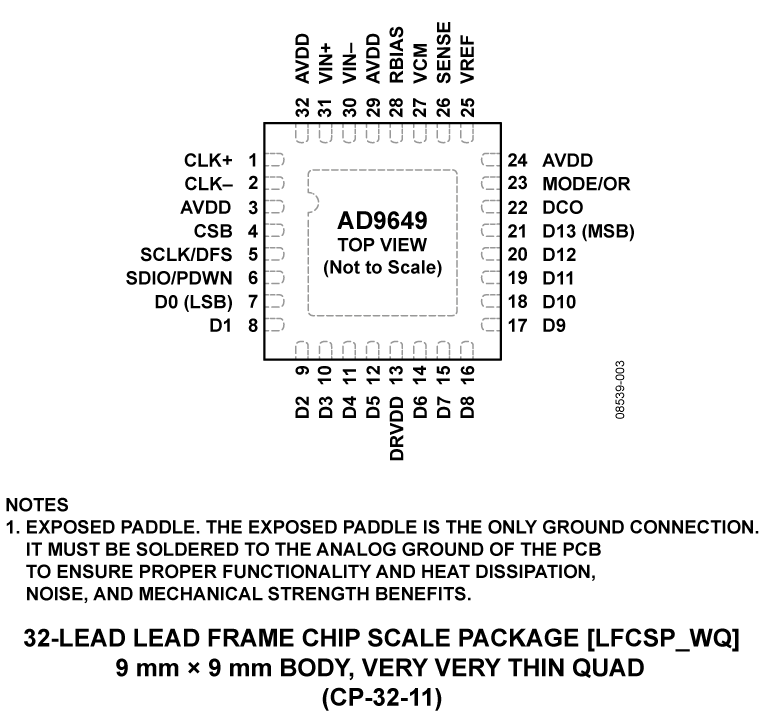

AD9649 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

14-BIT, 20/40/65/80 MSPS, 1.8 V ANALOG-TO-DIGITAL CONVERTER

Part	Number of Bits	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Input Type	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Configuration	Reference Type	Sampling Rate (Per Second)	Ratio - ADC	Ratio - S/H	Number of A/D Converters	Data Interface	Package Length	Package Name	Package Width	Architecture	Number of Inputs	Package / Case	Mounting Type	Supplied Contents	Input Voltage (Value)	Contents	Power (Typ)	Utilized IC / Part
Analog Devices Inc./Maxim Integrated AD9649BCPZ-20	14 bits	1.7 V	1.9 V	-40 °C	85 °C	Differential Single Ended	1.9 V	1.7 V	S/H-ADC	External Internal	20 MHz	1	1	1 count	Parallel	5 mm	32-LFCSP-VQ	5 mm	Pipelined	1	32-VFQFN Exposed Pad CSP	Surface Mount
Analog Devices Inc./Maxim Integrated AD9649BCPZRL7-40	14 bits	1.7 V	1.9 V	-40 °C	85 °C	Differential Single Ended	1.9 V	1.7 V	S/H-ADC	External Internal	40 MHz	1	1	1 count	Parallel	5 mm	32-LFCSP	5 mm	Pipelined	1	32-WFQFN Exposed Pad CSP	Surface Mount
Analog Devices Inc./Maxim Integrated AD9649BCPZ-40	14 bits	1.7 V	1.9 V	-40 °C	85 °C	Differential Single Ended	1.9 V	1.7 V	S/H-ADC	External Internal	40 MHz	1	1	1 count	Parallel	5 mm	32-LFCSP-VQ	5 mm	Pipelined	1	32-VFQFN Exposed Pad CSP	Surface Mount
Analog Devices Inc./Maxim Integrated AD9649BCPZRL7-20	14 bits	1.7 V	1.9 V	-40 °C	85 °C	Differential Single Ended	1.9 V	1.7 V	S/H-ADC	External Internal	20 MHz	1	1	1 count	Parallel	5 mm	32-LFCSP-VQ	5 mm	Pipelined	1	32-VFQFN Exposed Pad CSP	Surface Mount
Analog Devices Inc./Maxim Integrated AD9649BCPZRL7-80	14 bits	1.7 V	1.9 V	-40 °C	85 °C	Differential Single Ended	1.9 V	1.7 V	S/H-ADC	External Internal	80 MHz	1	1	1 count	Parallel	5 mm	32-LFCSP-VQ	5 mm	Pipelined	1	32-VFQFN Exposed Pad CSP	Surface Mount
Analog Devices Inc./Maxim Integrated AD9649BCPZ-80	14 bits	1.7 V	1.9 V	-40 °C	85 °C	Differential Single Ended	1.9 V	1.7 V	S/H-ADC	External Internal	80 MHz	1	1	1 count	Parallel	5 mm	32-LFCSP-VQ	5 mm	Pipelined	1	32-VFQFN Exposed Pad CSP	Surface Mount
Analog Devices Inc./Maxim Integrated AD9649BCPZ-65	14 bits	1.7 V	1.9 V	-40 °C	85 °C	Differential Single Ended	1.9 V	1.7 V	S/H-ADC	External Internal	65 MHz	1	1	1 count	Parallel	5 mm	32-LFCSP-VQ	5 mm	Pipelined	1	32-VFQFN Exposed Pad CSP	Surface Mount
Analog Devices Inc./Maxim Integrated AD9649-40EBZ	14 bits										40 MHz			1 count	SPI								Board(s)	2 Vpp	Board	61.6 mW	AD9649
Analog Devices Inc./Maxim Integrated AD9649-65EBZ	14 bits										65 MHz			1 count	SPI								Board(s)	2 Vpp	Board	82.3 mW	AD9649
Analog Devices Inc./Maxim Integrated AD9649BCPZRL7-65	14 bits	1.7 V	1.9 V	-40 °C	85 °C	Differential Single Ended	1.9 V	1.7 V	S/H-ADC	External Internal	65 MHz	1	1	1 count	Parallel	5 mm	32-LFCSP-VQ	5 mm	Pipelined	1	32-VFQFN Exposed Pad CSP	Surface Mount
