8516I Series

Low Skew,1-to-16 Differential-to-LVDS,Clock Distribution Chip

Manufacturer: Renesas Electronics Corporation

Catalog

Low Skew,1-to-16 Differential-to-LVDS,Clock Distribution Chip

Part	Package Length	Package Name	Package Width	Number of Circuits	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Package / Case	Type	Frequency - Max	Output	Input Ratio	Output Ratio	Mounting Type	Input	Operating Temperature (Max)	Operating Temperature (Min)	Differential Input	Differential Output
Renesas Electronics Corporation 8516FYILF	7 mm	48-TQFP	7 mm	1	3.135 V	3.465 V	48-LQFP	Fanout Buffer (Distribution)	700 MHz	LVDS	1	16	Surface Mount	HCSL LVDS LVHSTL LVPECL SSTL	85 °C	-40 °C	Yes	Yes
Renesas Electronics Corporation 8516FYILF	7 mm	48-TQFP	7 mm	1	3.135 V	3.465 V	48-LQFP	Fanout Buffer (Distribution)	700 MHz	LVDS	1	16	Surface Mount	HCSL LVDS LVHSTL LVPECL SSTL	85 °C	-40 °C	Yes	Yes
Renesas Electronics Corporation 8516FYILFT	7 mm	48-TQFP	7 mm	1	3.135 V	3.465 V	48-LQFP	Fanout Buffer (Distribution)	700 MHz	LVDS	1	16	Surface Mount	HCSL LVDS LVHSTL LVPECL SSTL	85 °C	-40 °C	Yes	Yes

Catalog

Low Skew,1-to-16 Differential-to-LVDS,Clock Distribution Chip

Description

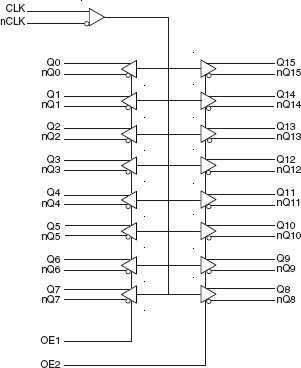

The 8516I is a low skew, high performance 1- to-16 Differential-to-LVDS Clock Distribution Chip and a member of the HiPerClockS™ family of High Performance Clock Solutions from IDT. The 8516I CLK, nCLK pair can accept any differential input levels and translates them to 3.3V LVDS output levels. Utilizing Low Voltage Differential Signaling (LVDS), the 8516I provides a low power, low noise, point-to-point solution for distributing clock signals over controlled impedances of 100?. Dual output enable inputs allow the 8516I to be used in a 1-to-16 or 1-to-8 input/output mode. Guaranteed output and part-to-part skew specifications make the 8516I ideal for those applications demanding well defined performance and repeatability.
