SJS86 Series

Catalog

CONN PLUG HSG FMALE 9POS INLINE

Part	Ingress Protection Description	Ingress Protection IP Rating	Number of Positions	Fastening Type	Mounting Type	Note	Contact Type	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Shielding	Contact Shape	Contact Size	Housing Color	Type	Shell Size - Insert	Shell Size - Insert	Shell Material	Connector Type	Features	Contact Finish - Mating	Current Rating	Primary Material	Ingress Protection	Termination	Current Rating Options	Contact Size Options	Color	Contact Material

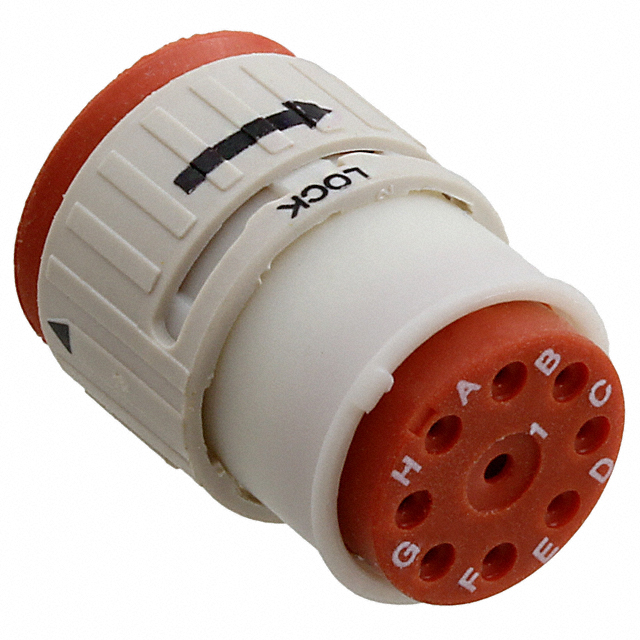

McGill Microwave Systems SJS860100	Dust Tight Waterproof	IP67	9	Bayonet Lock	Free Hanging (In-Line)	Contacts Not Included	Crimp	UL94 V-0	125 °C	-65 °C	Unshielded	Circular	16 22 D	White	For Female Sockets	8	8	Nylon 6/6 Polyamide (PA66)	Plug Housing	Coupling Nut

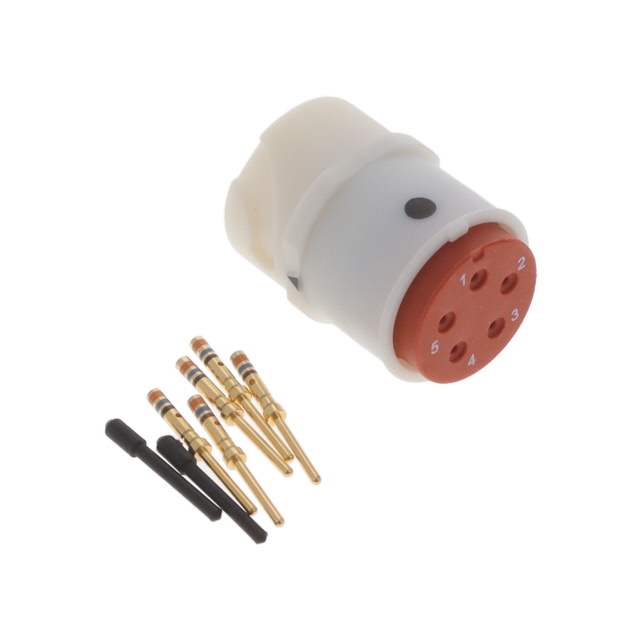

McGill Microwave Systems SJS860501			5	Bayonet Lock	Free Hanging (In-Line)				125 °C	-65 °C						8	8	Nylon 6/6 Polyamide (PA66)	Male Pins Receptacle		Gold	5 A	Plastic	Environment Sealed	Crimp

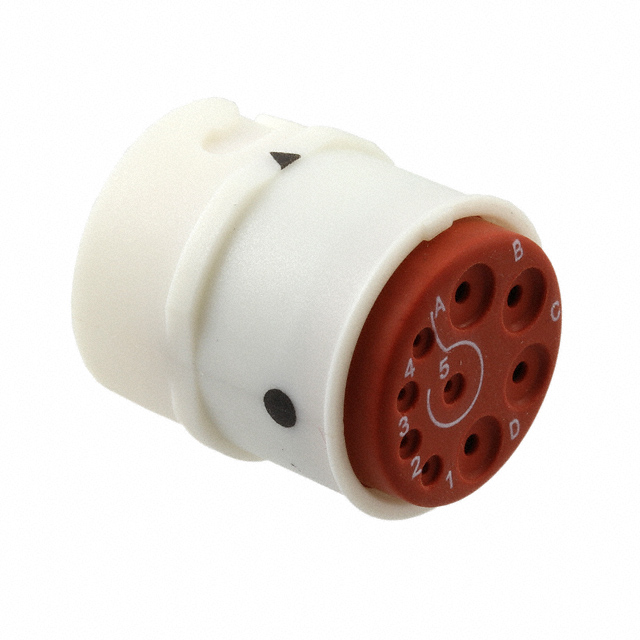

McGill Microwave Systems SJS860900	Dust Tight Waterproof	IP67	9	Bayonet Lock	Free Hanging (In-Line)	Contacts Not Included	Crimp	UL94 V-0	155 °C	-65 °C	Unshielded	Circular	16 22 D	White	For Male Pins	10	10	Nylon 6/6 Polyamide (PA66)	Receptacle Housing	Dust Cap
McGill Microwave Systems SJS861201			10	Bayonet Lock	Free Hanging (In-Line)				125 °C	-65 °C						10	10	Nylon 6/6 Polyamide (PA66)	Male Pins Receptacle		Gold		Plastic	Environment Sealed	Crimp	13A 5A

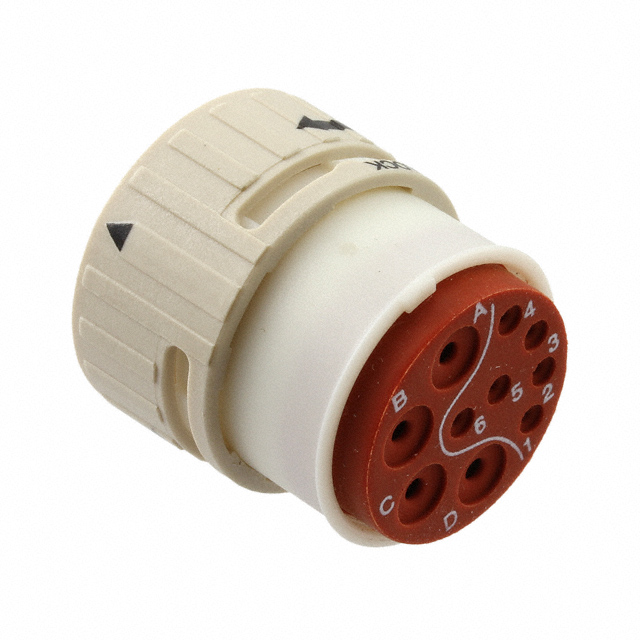

McGill Microwave Systems SJS861100	Dust Tight Waterproof	IP67	10	Bayonet Lock	Free Hanging (In-Line)	Contacts Not Included	Crimp	UL94 V-0	125 °C	-65 °C	Unshielded	Circular	16 22 D	White	For Female Sockets	10	10	Nylon 6/6 Polyamide (PA66)	Plug Housing	Coupling Nut
McGill Microwave Systems SJS861101			10	Bayonet Lock	Free Hanging (In-Line)				125 °C	-65 °C						10	10	Nylon 6/6 Polyamide (PA66)	Female Sockets Plug		Gold		Plastic	Environment Sealed	Crimp	13A 5A
McGill Microwave Systems SJS860500	Dust Tight Waterproof	IP67	5	Bayonet Lock	Free Hanging (In-Line)	Contacts Not Included	Crimp	UL94 V-0	155 °C	-65 °C	Unshielded	Circular		White	For Male Pins	8	8	Nylon 6/6 Polyamide (PA66)	Receptacle Housing	Dust Cap							22D
McGill Microwave Systems SJS861401			12	Bayonet Lock	Free Hanging (In-Line)				125 °C	-65 °C						8	8	Nylon 6/6 Polyamide (PA66)	Male Pins Receptacle		Gold	5 A	Plastic	Environment Sealed	Crimp
McGill Microwave Systems SJS862400			3	Bayonet Lock	Free Hanging (In-Line)			UL94 V-0	125 °C	-65 °C						7	7	Nylon 6/6 Polyamide (PA66)	Male Pins Receptacle		Gold	7.5 A	Plastic	Environment Sealed	Crimp			White	Copper Alloy
McGill Microwave Systems SJS860200	Dust Tight Waterproof	IP67	9	Bayonet Lock	Free Hanging (In-Line)	Contacts Not Included	Crimp	UL94 V-0	125 °C	-65 °C	Unshielded	Circular	16 22 D	White	For Male Pins	8	8	Nylon 6/6 Polyamide (PA66)	Receptacle Housing
