CBN10 Series
Manufacturer: Pepperl+Fuchs, Inc.
Beta
⌘K

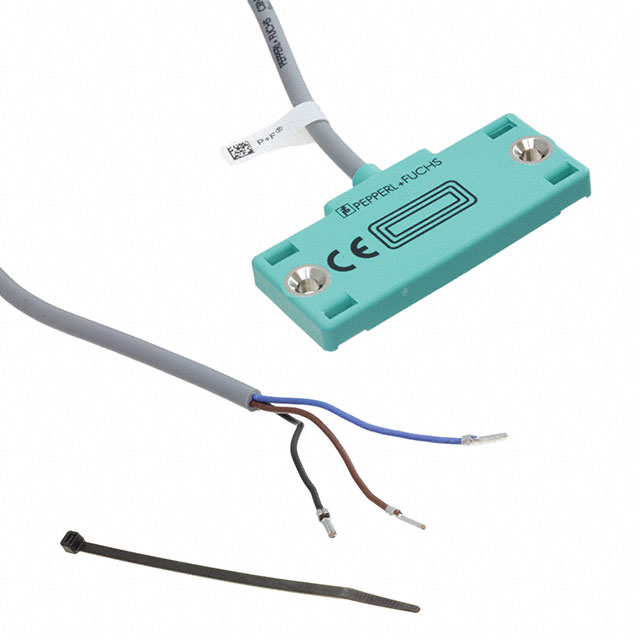

CAPACITIVE PROXIMITY SENSOR, BASIC SERIES, FLAT, 10 MM, PNP-NO, 10 TO 30 VDC, PRE-WIRED
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Termination Style | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Shielding | Indicator | Ingress Protection | Package / Case | Sensing Distance | Sensor Type | Output Type | Material - Body |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pepperl+Fuchs, Inc. | 70 °C | -25 °C | Cable | 10 VDC | 30 VDC | Unshielded | LED | IP67 | Flange Mount | 0.394 " | Capacitive | 3-Wire PNP-NO | Polybutylene Terephthalate (PBT) |
 Pepperl+Fuchs, Inc. | 70 °C | -25 °C | Cable | 10 VDC | 30 VDC | Unshielded | LED | IP67 | Flange Mount | 0.394 " | Capacitive | 3-Wire NPN-NO | Polybutylene Terephthalate (PBT) |
