DCNHR30PF48 Series

DCNHR 30A 450V P 48Vcoil

Catalog

DCNHR 30A 450V P 48Vcoil

Part	Must Release Voltage	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Rating (Current)	Switching Voltage DC (Max)	Termination Style	Form A Count	Contact Form	Must Operate Voltage	Coil Voltage
LITTELFUSE DCNHR30PF48	4 VDC	Chassis Mount	-40 °C	85 °C	30 A	900 VDC	Stud Wire Leads	1	SPST-NO	36 VDC	48 V

Catalog

DCNHR 30A 450V P 48Vcoil

Description

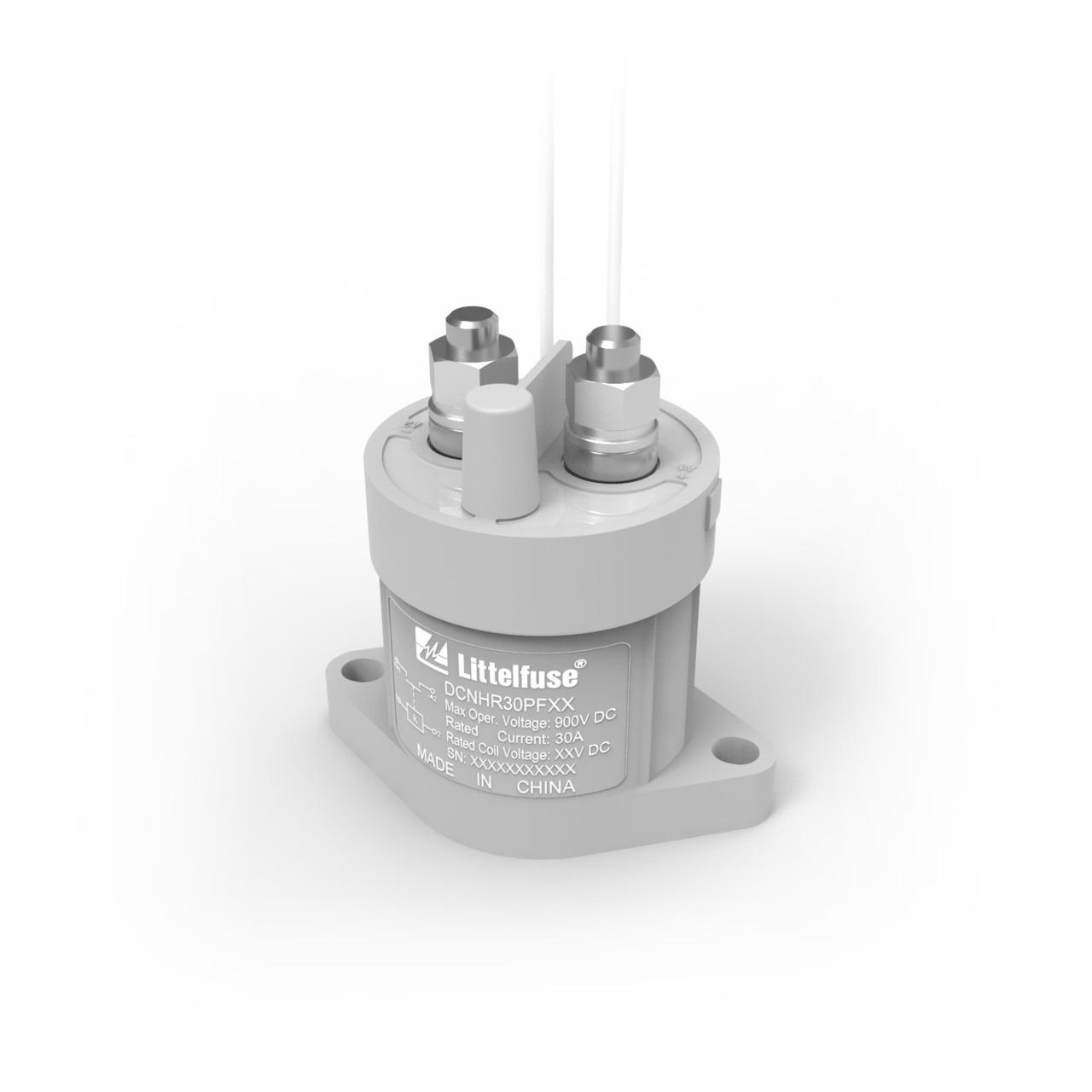

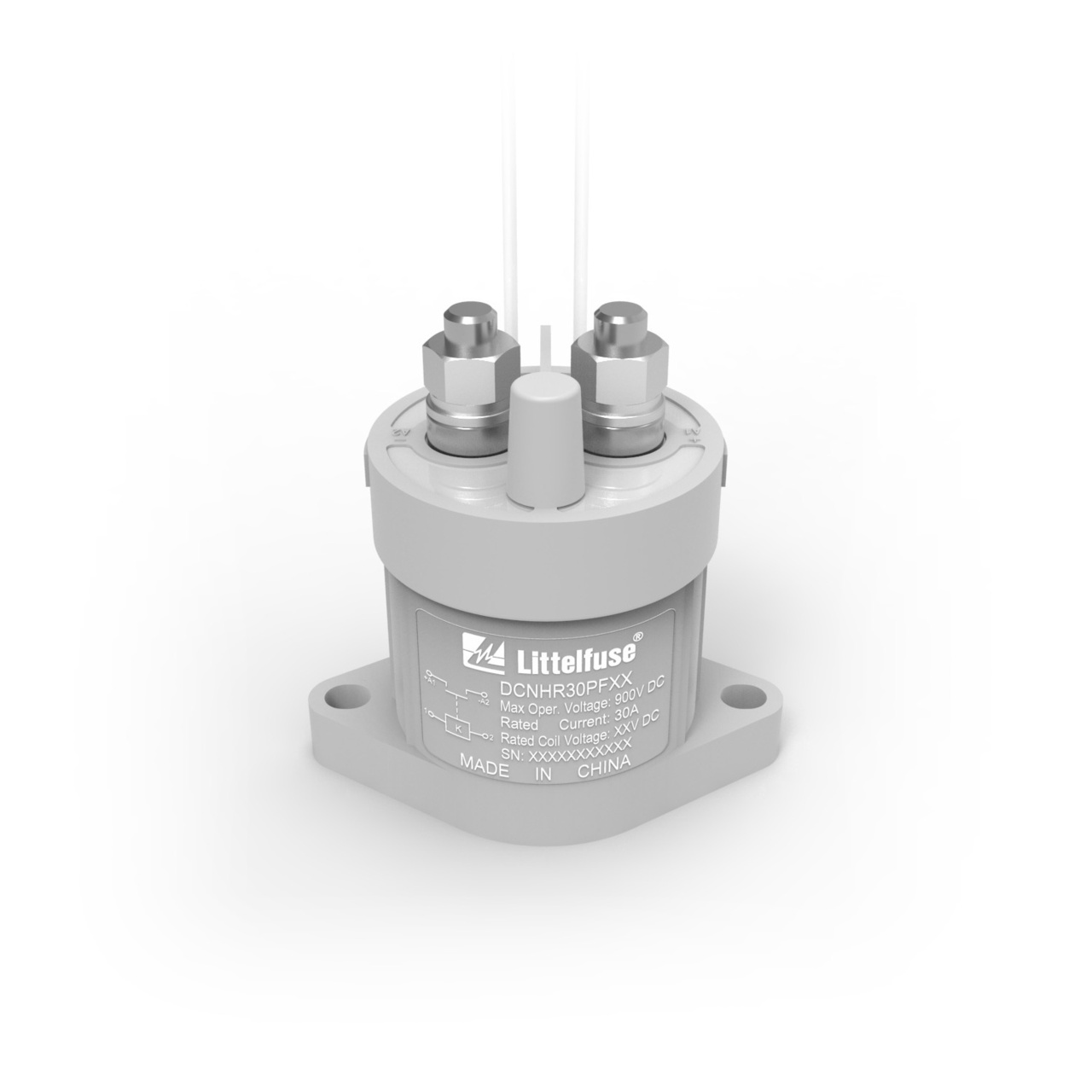

The DCNHR Series 900V Max High-Voltage DC Contactor Relay is normally open with a low-power coil in a corrosion-resistant housing for use in harsh vehicle environments. The contactor's permanent magnet helps to achieve a high-voltage DC cutoff. This DCNHR Series contactor relay (DCNHR30PF48) is for 30A contact switching and features polarized main contacts and a 48V coil.
