087833 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 14POS 2MM

Part	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish Thickness - Mating	Contact Material	Material Flammability Rating	Termination	Contact Type	Pitch - Mating	Contact Shape	Mounting Type	Row Spacing - Mating	Number of Positions Loaded	Contact Length - Mating	Number of Rows	Insulation Color	Connector Type	Style	Contact Finish - Post	Insulation Height	Fastening Type	Number of Positions	Features	Shrouding	Insulation Material	Contact Length - Post	Contact Finish - Mating	Applications	Contact Finish Thickness - Post
Molex 0878331421	-55 °C	105 °C	30 µin	Phosphor Bronze	UL94 V-0	Solder	Male Pin	0.079 in	Square	Right Angle Through Hole	0.079 in	All	0.141 in	2	Black	Header	Board Board or Cable	Tin	0.248 in	Latch Holder	14	Keying Slot	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	0.085 in	Gold	Automotive General Purpose Telecommunications	74.8 µin
Molex 0878331436	-55 °C	105 °C	30 µin	Phosphor Bronze	UL94 V-0	Solder	Male Pin	0.079 in	Square	Right Angle Through Hole	0.079 in	All	0.141 in	2	Black	Header	Board Board or Cable	Tin	0.248 in	Latch Holder	14	Pick and Place Polarizing Key	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	0.138 in	Gold	Automotive General Purpose Telecommunications	74.8 µin
Molex 0878331621	-55 °C	105 °C	30 µin	Phosphor Bronze	UL94 V-0	Solder	Male Pin	0.079 in	Square	Right Angle Through Hole	0.079 in	All	0.141 in	2	Black	Header	Board Board or Cable	Tin	0.248 in	Latch Holder	16	Keying Slot	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	0.085 in	Gold	Automotive General Purpose Telecommunications	74.8 µin

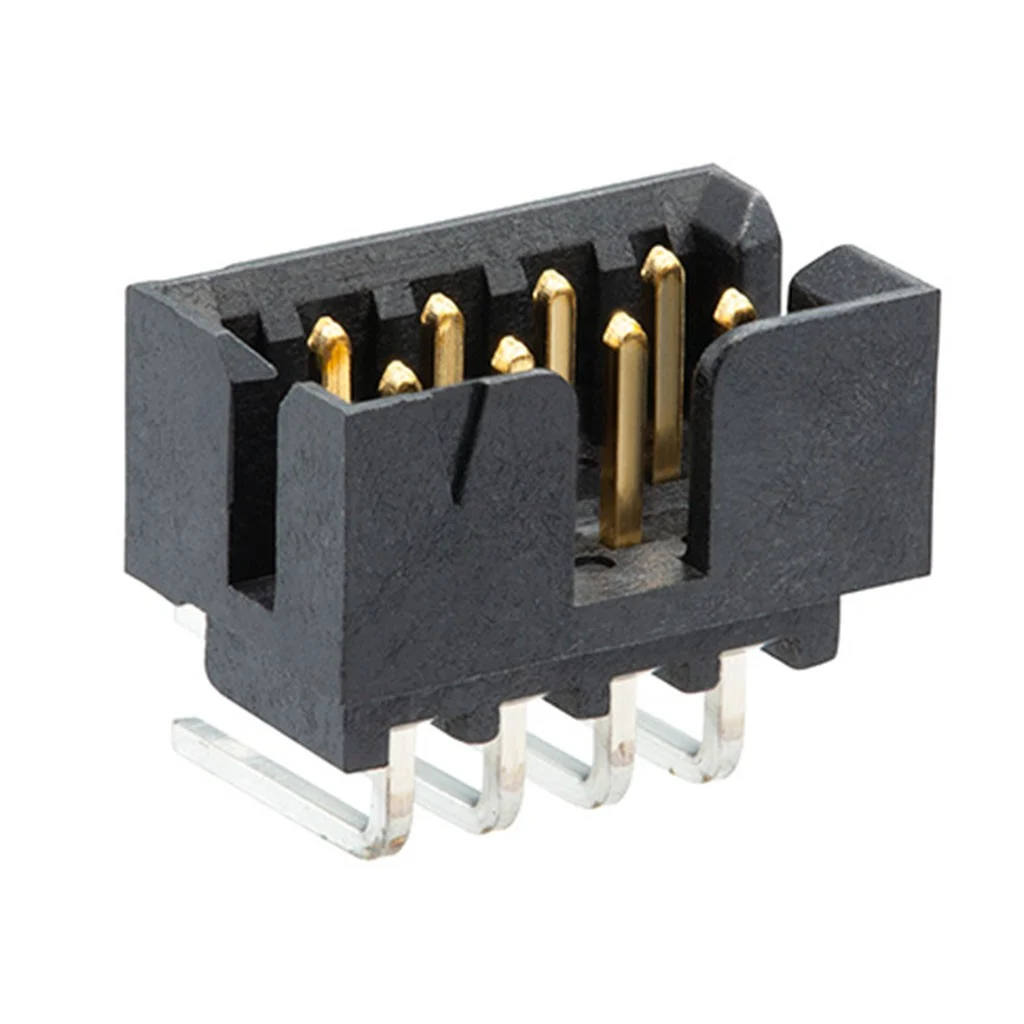

Molex 0878332621	-55 °C	105 °C	30 µin	Phosphor Bronze	UL94 V-0	Solder	Male Pin	0.079 in	Square	Right Angle Through Hole	0.079 in	All	0.141 in	2	Black	Header	Board Board or Cable	Tin	0.248 in	Latch Holder	26	Keying Slot	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	0.085 in	Gold	Automotive General Purpose Telecommunications	74.8 µin
Molex 0878333020	-55 °C	105 °C	15 µin	Phosphor Bronze	UL94 V-0	Solder	Male Pin	0.079 in	Square	Right Angle Through Hole	0.079 in	All	0.141 in	2	Black	Header	Board Board or Cable	Tin	0.248 in	Latch Holder	30	Keying Slot	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	0.085 in	Gold	Automotive General Purpose Telecommunications	74.8 µin
Molex 0878330661	-55 °C	105 °C	15 µin	Phosphor Bronze	UL94 V-0	Solder	Male Pin	0.079 in	Square	Right Angle Through Hole	0.079 in	All	0.141 in	2	Black	Header	Board Board or Cable	Tin	0.248 in	Latch Holder	6		Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	0.125 in	Gold	Automotive General Purpose Telecommunications	74.8 µin
Molex 0878333819	-55 °C	105 °C	2 µin	Phosphor Bronze	UL94 V-0	Solder	Male Pin	0.079 in	Square	Right Angle Through Hole	0.079 in	All	0.141 in	2	Black	Header	Board Board or Cable	Tin	0.248 in	Latch Holder	38	Keying Slot	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	0.085 in	Gold	Automotive General Purpose Telecommunications	74.8 µin
Molex 0878336020	-55 °C	105 °C	15 µin	Phosphor Bronze	UL94 V-0	Solder	Male Pin	0.079 in	Square	Right Angle Through Hole	0.079 in	All	0.141 in	2	Black	Header	Board Board or Cable	Tin	0.248 in	Push-Pull	12	Keying Slot	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	0.125 in	Gold	Automotive General Purpose Telecommunications	74.8 µin
Molex 0878333021	-55 °C	105 °C	30 µin	Phosphor Bronze	UL94 V-0	Solder	Male Pin	0.079 in	Square	Right Angle Through Hole	0.079 in	All	0.141 in	2	Black	Header	Board Board or Cable	Tin	0.248 in	Latch Holder	30	Keying Slot	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	0.085 in	Gold	Automotive General Purpose Telecommunications	74.8 µin
Molex 0878330421	-55 °C	105 °C	30 µin	Phosphor Bronze	UL94 V-0	Solder	Male Pin	0.079 in	Square	Right Angle Through Hole	0.079 in	All	0.141 in	2	Black	Header	Board Board or Cable	Tin	0.248 in	Push-Pull	4		Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	0.085 in	Gold	Automotive General Purpose Telecommunications	74.8 µin
