CL1F4 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLG HSG FMALE 26POS INLINE

Part	Contact Type	Contact Shape	Fastening Type	Housing Color	Insert Material	Mounting Type	Number of Positions	Shell Material	Ingress Protection IP Rating	Ingress Protection Description	Shielding	Operating Temperature (Max)	Operating Temperature (Min)	Note	Shell Size - Insert Length	Shell Size - Insert Width	Connector Type	Features	Material Flammability Rating	Orientation	Type	Contact Size	Ingress Protection
Amphenol Aerospace Operations CL1F4103	Crimp Solder Cup	Circular	Twist Latch	Black	Thermoplastic	Free Hanging (In-Line)	26	Halogen Free Thermoplastic	IP68	Dust Tight Waterproof	Unshielded	125 °C	-40 °C	Contacts Not Included	4 mm	1 mm	Plug Housing	Coupling Nut	UL94 V-0	Keyed	For Female Sockets	16 S

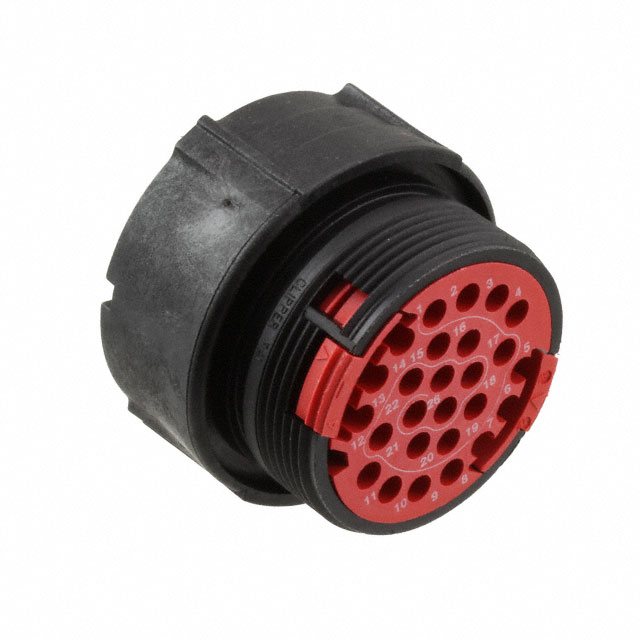

Amphenol Aerospace Operations CL1F4100	Crimp Solder Cup	Circular	Twist Latch	Black	Thermoplastic	Free Hanging (In-Line)	26	Halogen Free Thermoplastic			Unshielded	125 °C	-40 °C	Contacts Not Included	4 mm	1 mm	Plug Housing	Coupling Nut	UL94 V-0	Keyed	For Female Sockets	16 S	IP40

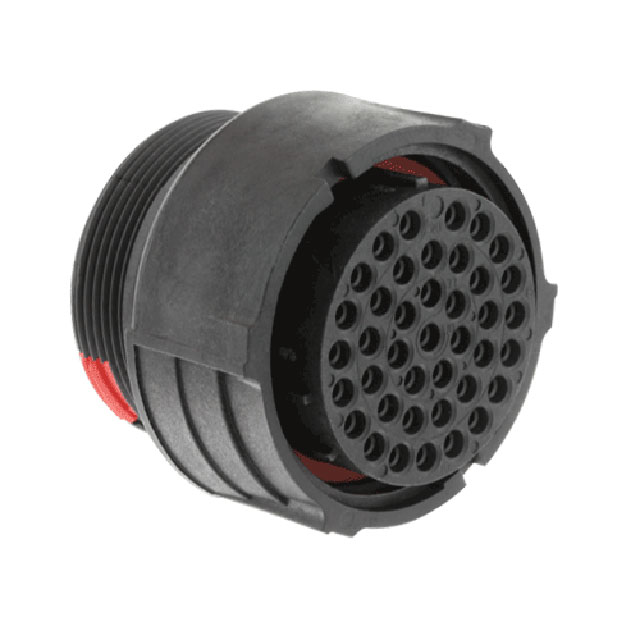

Amphenol Aerospace Operations CL1F4200	Crimp Solder Cup	Circular	Twist Latch	Black	Thermoplastic	Free Hanging (In-Line)	40	Halogen Free Thermoplastic			Unshielded	125 °C	-40 °C	Contacts Not Included	4 mm	2 mm	Plug Housing	Coupling Nut	UL94 V-0	Keyed	For Female Sockets	16 S	IP40

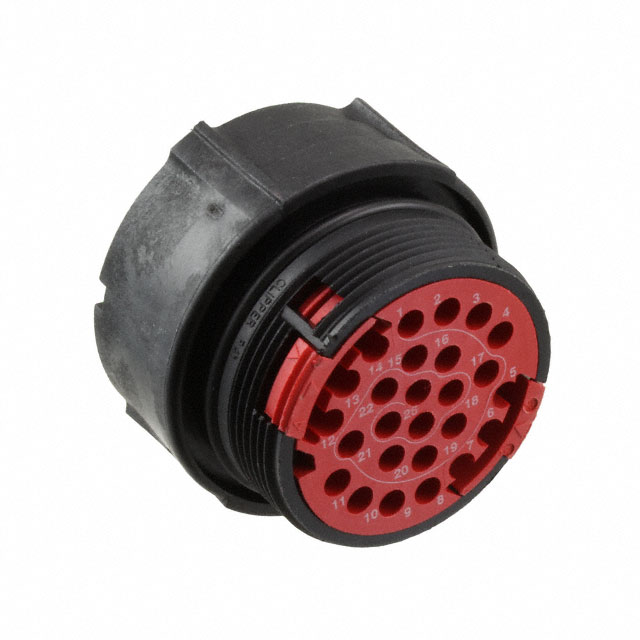

Amphenol Aerospace Operations CL1F4101	Crimp Solder Cup	Circular	Twist Latch	Black	Thermoplastic	Free Hanging (In-Line)	26	Halogen Free Thermoplastic	IP67	Dust Tight Waterproof	Unshielded	125 °C	-40 °C	Contacts Not Included	4 mm	1 mm	Plug Housing	Coupling Nut	UL94 V-0	Keyed	For Female Sockets	16 S

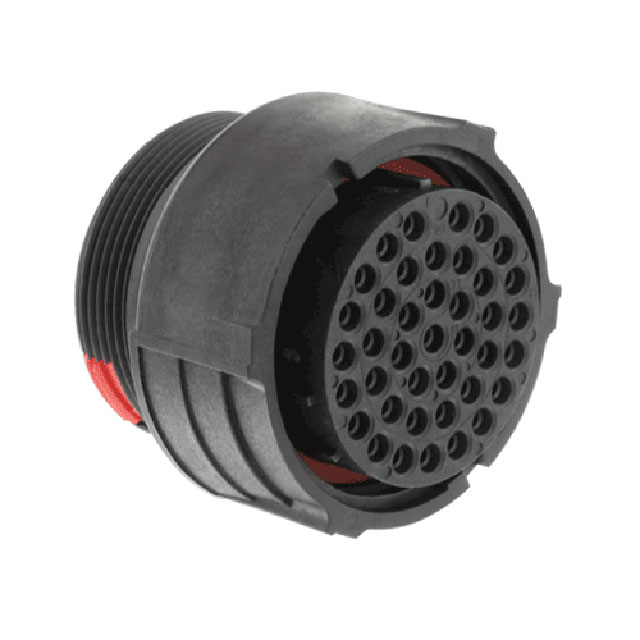

Amphenol Aerospace Operations CL1F4203	Crimp Solder Cup	Circular	Twist Latch	Black	Thermoplastic	Free Hanging (In-Line)	40	Halogen Free Thermoplastic	IP68	Dust Tight Waterproof	Unshielded	125 °C	-40 °C	Contacts Not Included	4 mm	2 mm	Plug Housing	Coupling Nut	UL94 V-0	Keyed	For Female Sockets	16 S

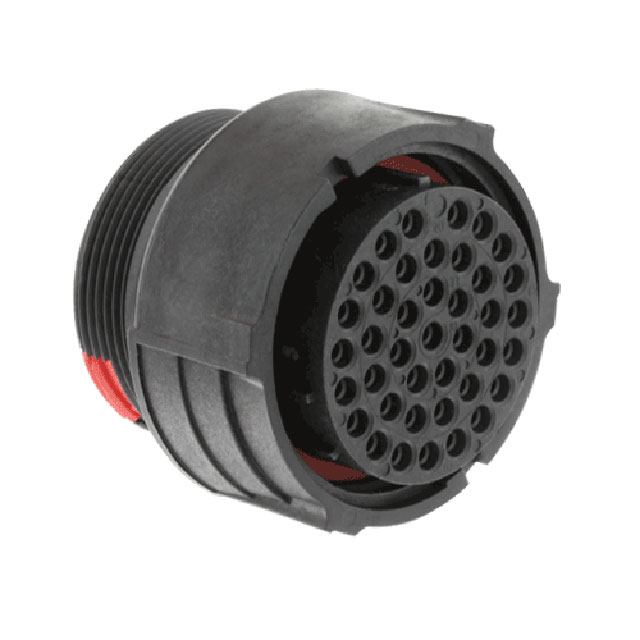

Amphenol Aerospace Operations CL1F4201	Crimp Solder Cup	Circular	Twist Latch	Black	Thermoplastic	Free Hanging (In-Line)	40	Halogen Free Thermoplastic	IP67	Dust Tight Waterproof	Unshielded	125 °C	-40 °C	Contacts Not Included	4 mm	2 mm	Plug Housing	Coupling Nut	UL94 V-0	Keyed	For Female Sockets	16 S
