AD9746 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
DUAL 14-BIT 250 MSPS DIGITAL-TO-ANALOG CONVERTERS
| Part | Number of Bits | Voltage - Supply, Digital (Range 2) Minimum | Voltage - Supply, Digital (Range 2) Maximum | Voltage - Supply, Digital (Range 1) Minimum | Voltage - Supply, Digital (Range 1) Maximum | Voltage - Supply, Analog (Min) | Voltage - Supply, Analog (Max) | Number of D/A Converters | Reference Type | Package Length | Package Name | Package Width | Architecture | Package / Case | Mounting Type | Output Type | Operating Temperature (Min) | Operating Temperature (Max) | INL (LSB) Tolerance | DNL (LSB) Tolerance | Data Interface | Differential Output | Supplied Contents | Sampling Rate (Per Second) | Contents | Utilized IC / Part | DAC Type | Number of DAC's |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 14 bits | 3.13 V | 3.47 V | 1.7 V | 1.9 V | 3.13 V | 3.47 V | 2 count | External Internal | 10 mm | 72-LFCSP-VQ | 10 mm | Quad-Switch | 72-VFQFN Exposed Pad CSP | Surface Mount | Current - Unbuffered | -40 °C | 85 °C | 1 LSB | 0.5 LSB | Parallel | Yes | ||||||

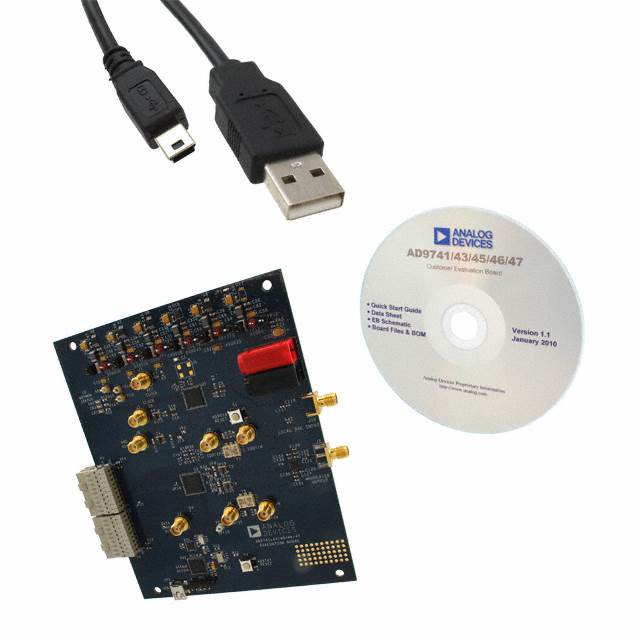

 Analog Devices Inc./Maxim Integrated | 14 bits | Parallel | Board(s) | 250 MHz | Board | AD9746 | Current | 2 | ||||||||||||||||||||
 Analog Devices Inc./Maxim Integrated | 14 bits | 3.13 V | 3.47 V | 1.7 V | 1.9 V | 3.13 V | 3.47 V | 2 count | External Internal | 10 mm | 72-LFCSP-VQ | 10 mm | Quad-Switch | 72-VFQFN Exposed Pad CSP | Surface Mount | Current - Unbuffered | -40 °C | 85 °C | 1 LSB | 0.5 LSB | Parallel | Yes |
