CX2.5 Series
Manufacturer: Altech Corporation
Beta
⌘K

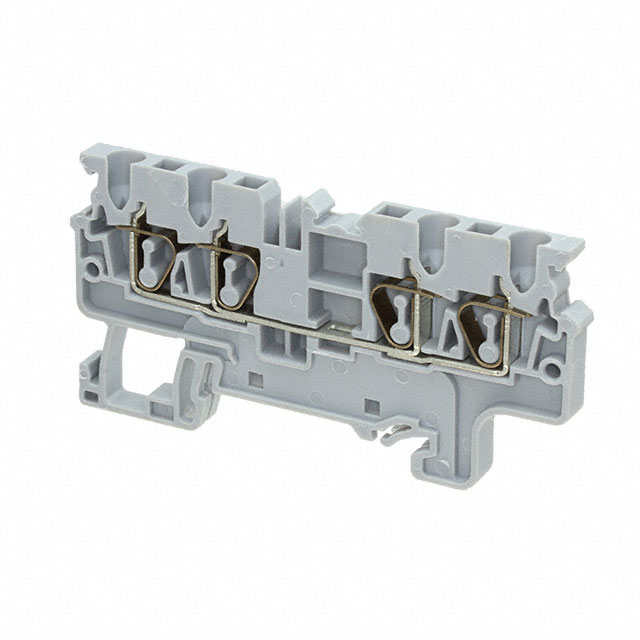

DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 24 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A
| Part | Wire Gauge or Range - mm² (Minimum) | Wire Gauge or Range - mm² (Maximum) | Stripping Length | Material - Insulation | Type | Current - UL | Number of Positions | Termination Style | Terminal Width | Voltage - IEC | Number of Levels | Wire Gauge or Range - AWG (Max) | Wire Gauge or Range - AWG (Min) | Current - IEC | Color | Voltage - UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altech Corporation | 0.2 mm² | 2.5 mm² | 10 mm | Nylon 6/6 PA66 Polyamide | Feed Through | 20 A | 4 | Push In Spring | 5 mm | 1000 V | 1 | 24 AWG | 12 AWG | 24 A | Gray | 600 V |
 Altech Corporation | 0.2 mm² | 2.5 mm² | 10 mm | Nylon 6/6 PA66 Polyamide | Feed Through | 20 A | 3 | Push In Spring | 5 mm | 1000 V | 1 | 24 AWG | 12 AWG | 24 A | Gray | 600 V |
