V710 Series

Catalog

TERM BLOCK HDR 10POS 7.62MM

Part	Color	Positions Per Level	Header Orientation Angle	Header Orientation	Contact Mating Finish	Features	Voltage - UL	Number of Positions	Type	Pitch	Mounting Type	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Current - UL	Number of Levels	Housing Material	Contact Material	Material Flammability Rating	Contact Tail Length	Insulation Height

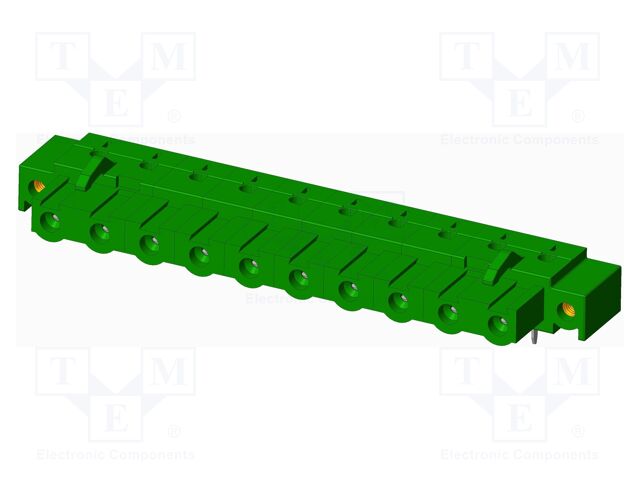

McGill Microwave Systems V71002510000G	Green	10	90 °	Right Angle	Tin	Mating Flange Retention Latches	300 V	10	Female Sockets Header	0.3 in	Through Hole	Solder	-40 °C	115 °C	20 A	1	Thermoplastic	Copper	UL94 V-0	0.138 in

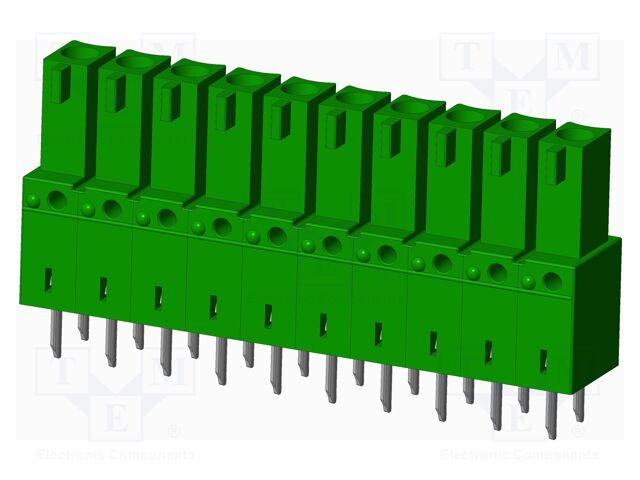

McGill Microwave Systems V71031500000G	Green	10		Vertical	Tin		300 V	10	Female Sockets Header	0.15 in	Through Hole	Solder	-40 °C	115 °C	8 A	1	Thermoplastic	Phosphor Bronze	UL94 V-0	0.134 in	0.571 in
McGill Microwave Systems V71032500000G	Green	10		Vertical	Tin	Mating Flange	300 V	10	Female Sockets Header	0.15 in	Through Hole	Solder	-40 °C	115 °C	8 A	1	Thermoplastic	Phosphor Bronze	UL94 V-0	0.134 in	0.571 in

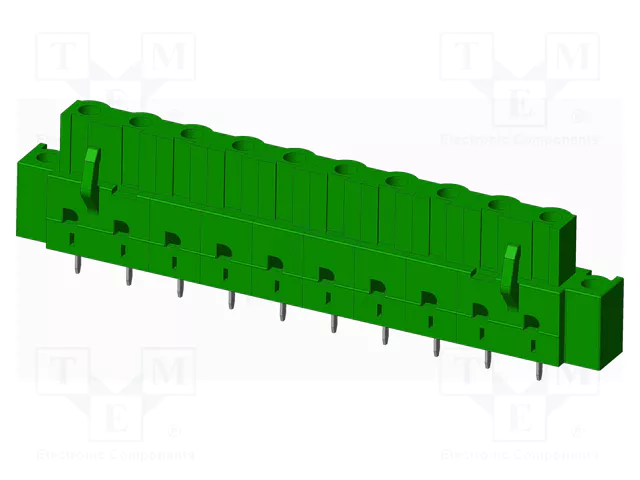

McGill Microwave Systems V71072500000G	Green	10		Vertical	Tin	Mating Flange Retention Latches	300 V	10	Female Sockets Header	0.197 in	Through Hole	Solder	-40 °C	115 °C	10 A	1	Thermoplastic	Phosphor Bronze	UL94 V-0	0.138 in	0.748 in
McGill Microwave Systems V71052510000G	Green	10	90 °	Right Angle	Tin	Mating Flange Retention Latches	300 V	10	Female Sockets Header	5.08 mm	Through Hole	Solder	-40 °C	115 °C	20 A	1	Thermoplastic	Copper	UL94 V-0	0.138 in
McGill Microwave Systems V71011500000G	Green	10		Vertical	Tin		300 V	10	Female Sockets Header	0.138 in	Through Hole	Solder	-40 °C	115 °C	4 A	1	Thermoplastic	Phosphor Bronze	UL94 V-0	0.134 in	0.571 in
McGill Microwave Systems V710A2500000G	Green	10		Vertical	Tin	Mating Flange Retention Latches	300 V	10	Female Sockets Header	0.295 in	Through Hole	Solder	-40 °C	115 °C	10 A	1	Thermoplastic	Phosphor Bronze	UL94 V-0	0.138 in	0.748 in
McGill Microwave Systems V71011510000G	Green	10	90 °	Right Angle	Tin		300 V	10	Female Sockets Header	0.138 in	Through Hole	Solder	-40 °C	115 °C	4 A	1	Thermoplastic	Phosphor Bronze	UL94 V-0	0.134 in	0.26 in
McGill Microwave Systems V71031510000G	Green	10	90 °	Right Angle	Tin		300 V	10	Female Sockets Header	0.15 in	Through Hole	Solder	-40 °C	115 °C	8 A	1	Thermoplastic	Phosphor Bronze	UL94 V-0	0.134 in	0.26 in
McGill Microwave Systems V710A2510000G	Green	10	90 °	Right Angle	Tin	Mating Flange Retention Latches	300 V	10	Female Sockets Header	0.295 in	Through Hole	Solder	-40 °C	115 °C	10 A	1	Thermoplastic	Phosphor Bronze	UL94 V-0	0.138 in
