AD9643 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

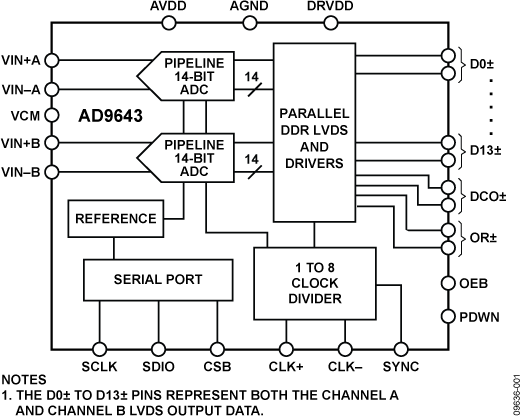

14-BIT, 170 MSPS/210 MSPS/250 MSPS, 1.8 V DUAL ANALOG-TO-DIGITAL CONVERTER (ADC)

Part	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Mounting Type	Number of Bits	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Package Length	Package Name	Package Width	Configuration	Package / Case	Number of A/D Converters	Data Interface	Sampling Rate (Per Second)	Ratio - ADC	Ratio - S/H	Input Type	Reference Type	Number of Inputs	Architecture	Features	Operating Temperature (Min)	Operating Temperature (Max)	Supplied Contents	Contents	Power (Typ)	Utilized IC / Part	Input Voltage (Max)	Input Voltage (Min)
Analog Devices Inc./Maxim Integrated AD9643BCPZ-250	1.9 V	1.7 V	Surface Mount	14 bits	1.7 V	1.9 V	9 mm	64-LFCSP-VQ	9 mm	S/H-ADC	64-VFQFN Exposed Pad CSP	2 count	LVDS - Parallel	250 MHz	1	1	Differential	Internal	2	Pipelined	Simultaneous Sampling	-40 °C	85 °C
Analog Devices Inc./Maxim Integrated AD9643BCPZRL7-210	1.9 V	1.7 V	Surface Mount	14 bits	1.7 V	1.9 V	9 mm	64-LFCSP-VQ	9 mm	S/H-ADC	64-VFQFN Exposed Pad CSP	2 count	LVDS - Parallel	210 MHz	1	1	Differential	Internal	2	Pipelined	Simultaneous Sampling	-40 °C	85 °C
Analog Devices Inc./Maxim Integrated AD9643BCPZ-170	1.9 V	1.7 V	Surface Mount	14 bits	1.7 V	1.9 V	9 mm	64-LFCSP-VQ	9 mm	S/H-ADC	64-VFQFN Exposed Pad CSP	2 count	LVDS - Parallel	170 MHz	1	1	Differential	Internal	2	Pipelined	Simultaneous Sampling	-40 °C	85 °C
Analog Devices Inc./Maxim Integrated AD9643BCPZRL7-170	1.9 V	1.7 V	Surface Mount	14 bits	1.7 V	1.9 V	9 mm	64-LFCSP-VQ	9 mm	S/H-ADC	64-VFQFN Exposed Pad CSP	2 count	LVDS - Parallel	170 MHz	1	1	Differential	Internal	2	Pipelined	Simultaneous Sampling	-40 °C	85 °C
Analog Devices Inc./Maxim Integrated AD9643-250EBZ				14 bits								2 count	SPI	250 MHz										Board(s) Power Supply	Board Power Supply	785 mW	AD9643	2 V	1.4 Vpp
Analog Devices Inc./Maxim Integrated AD9643BCPZRL7-250	1.9 V	1.7 V	Surface Mount	14 bits	1.7 V	1.9 V	9 mm	64-LFCSP-VQ	9 mm	S/H-ADC	64-VFQFN Exposed Pad CSP	2 count	LVDS - Parallel	250 MHz	1	1	Differential	Internal	2	Pipelined	Simultaneous Sampling	-40 °C	85 °C
Analog Devices Inc./Maxim Integrated AD9643-210EBZ				14 bits								2 count	SPI	210 MHz										Board(s) Power Supply	Board Power Supply	680 mW	AD9643	2 V	1.4 Vpp
Analog Devices Inc./Maxim Integrated AD9643BCPZ-210	1.9 V	1.7 V	Surface Mount	14 bits	1.7 V	1.9 V	9 mm	64-LFCSP-VQ	9 mm	S/H-ADC	64-VFQFN Exposed Pad CSP	2 count	LVDS - Parallel	210 MHz	1	1	Differential	Internal	2	Pipelined	Simultaneous Sampling	-40 °C	85 °C
