RT0W61210 Series

Catalog

CONN PLUG MALE 10POS GOLD CRIMP

Part	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Shell Size - Insert Width	Shell Size - Insert Length	Color	Current Rating	Primary Material	Orientation	Fastening Type	Connector Type	Termination	Ingress Protection Description	Ingress Protection IP Rating	Contact Finish - Mating	Voltage Rating	Voltage Rating (Type)	Shell Material	Shell Finish	Contact Finish Thickness - Mating	Material Flammability Rating	Shielding	Type	Contact Size	Features	Housing Color	Contact Type	Insert Material	Note	Contact Shape
McGill Microwave Systems RT0W61210PNH-K	10	-40 °C	105 °C	Free Hanging (In-Line)	10 mm	12 mm	Silver	7.5 A	Metal	N (Normal)	Bayonet Lock	Male Pins Plug	Crimp	Dust Tight Waterproof	IP67	Gold	150 VDC	DC	Zinc Die Cast	Nickel	Flash
McGill Microwave Systems RT0W61210PNHECR
McGill Microwave Systems RT0W61210SNHEC03	10			Free Hanging (In-Line)	10 mm	12 mm			Metal	N (Normal)	Bayonet Lock	Plug Housing		Dust Tight Waterproof	IP67				Zinc Alloy	Nickel		UL94 V-0	Shielded	For Female Sockets	20	Backshell Coupling Nut	Silver	Crimp

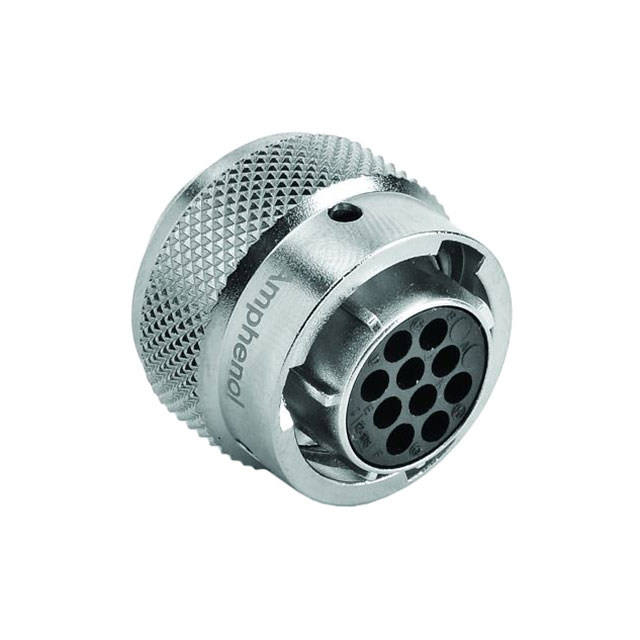

McGill Microwave Systems RT0W61210SNH	10	-40 °C	105 °C	Free Hanging (In-Line)	10 mm	12 mm				N (Normal)	Bayonet Lock	Plug Housing		Dust Tight Waterproof	IP67				Zinc Alloy	Nickel		UL94 V-0	Shielded	For Female Sockets	20	Coupling Nut	Silver	Crimp	Thermoplastic	Contacts Not Included	Circular
McGill Microwave Systems RT0W61210SNHECR	10			Free Hanging (In-Line)	10 mm	12 mm			Metal	N (Normal)	Bayonet Lock	Plug Housing		Dust Tight Waterproof	IP67				Zinc Alloy	Nickel		UL94 V-0	Shielded	For Female Sockets	20	Backshell Coupling Nut	Silver	Crimp

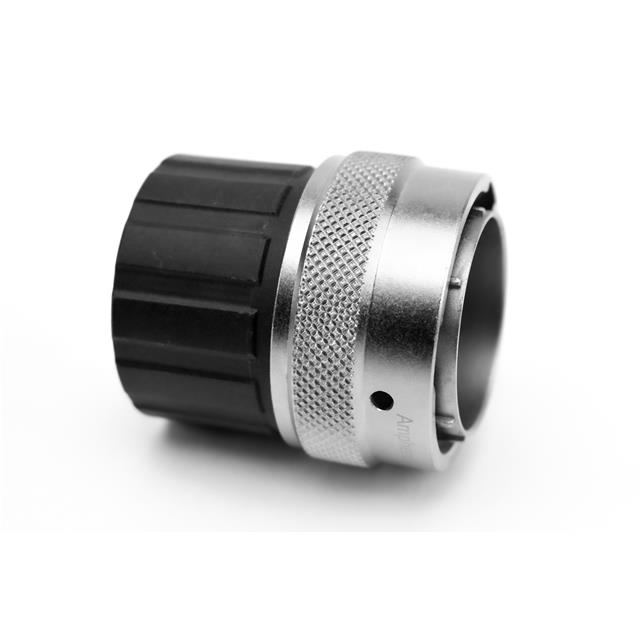

McGill Microwave Systems RT0W61210SNHEC03R	10	-40 °C	125 °C	Free Hanging (In-Line)	10 mm	12 mm				N (Normal)	Bayonet Lock	Plug Housing		Dust Tight Waterproof	IP67				Zinc Alloy	Nickel		UL94 V-0	Shielded	For Female Sockets	20	Backshell Coupling Nut	Silver	Crimp	Thermoplastic	Contacts Not Included	Circular
McGill Microwave Systems RT0W61210PNHEC03
McGill Microwave Systems RT0W61210PNHEC03R	10	-40 °C	125 °C	Free Hanging (In-Line)	10 mm	12 mm				N (Normal)	Bayonet Lock	Plug Housing		Dust Tight Waterproof	IP67				Zinc Alloy	Nickel		UL94 V-0	Shielded	For Male Pins	20	Backshell Coupling Nut	Silver	Crimp	Thermoplastic	Contacts Not Included	Circular
